RF3600XXN1 05 – UNIT, LIT/OPTIONAL

RF3600XXN1 05 – UNIT, LIT/OPTIONAL

Written by

in

RF3600XXN1 05 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL ARI122627A
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Paint, Spray 13 Oz. (Avocado)
paint, spray 13 oz. (coffee)
Paint, Touch-Up 1/2 Oz. (Coffee)
72109 Whirlpool Dacor Avocado Touch-Up Paint
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
WPL LIT3150293
WPL LIT3150657
WPL LIT3147395
WPL LIT884954
Grease
8212471 Whirlpool Oven Paint
Leveler (Thinner) (2oz.)
Enamel, Coffee (1 Qt. Uncut)
1
Wire (14 Ga. 200 c Brown)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
350930 Whirlpool White Spray Paint
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest (Uncut)
Golden Harvest
Almond (Uncut)
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Platinum (Uncut)
WPL 72112
Wire, 25` Roll (Red 14 Ga.)
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )

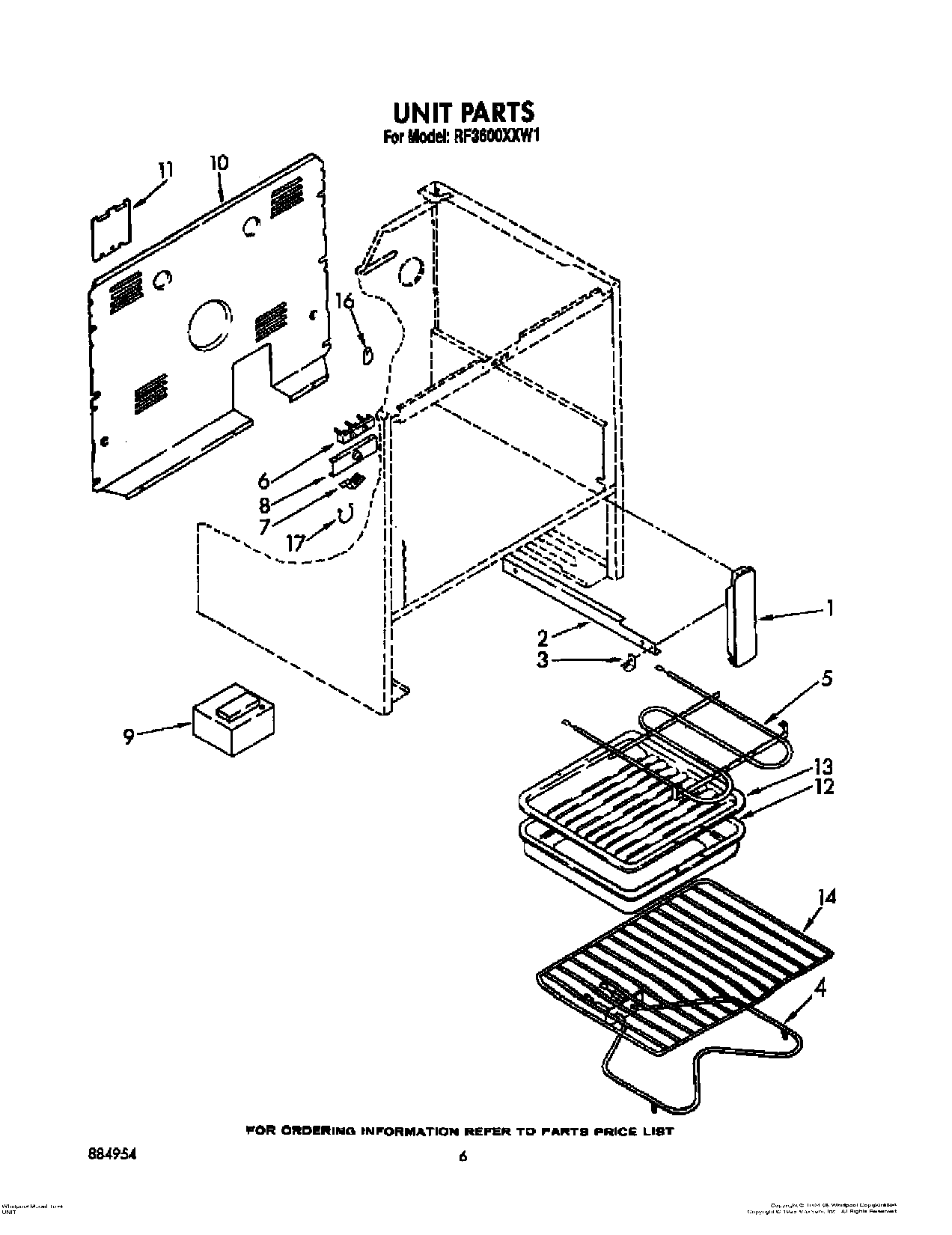

1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw (2)
6WP112432 Whirlpool Nut Assembly
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
9340184 Whirlpool Screw
9Block, Balance
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
16Screw, 10A x 1/2 (2) (Black)
16WPL 311982
17WPL 3169094
1716515 Whirlpool Clip
17WPL 3169093
178273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
