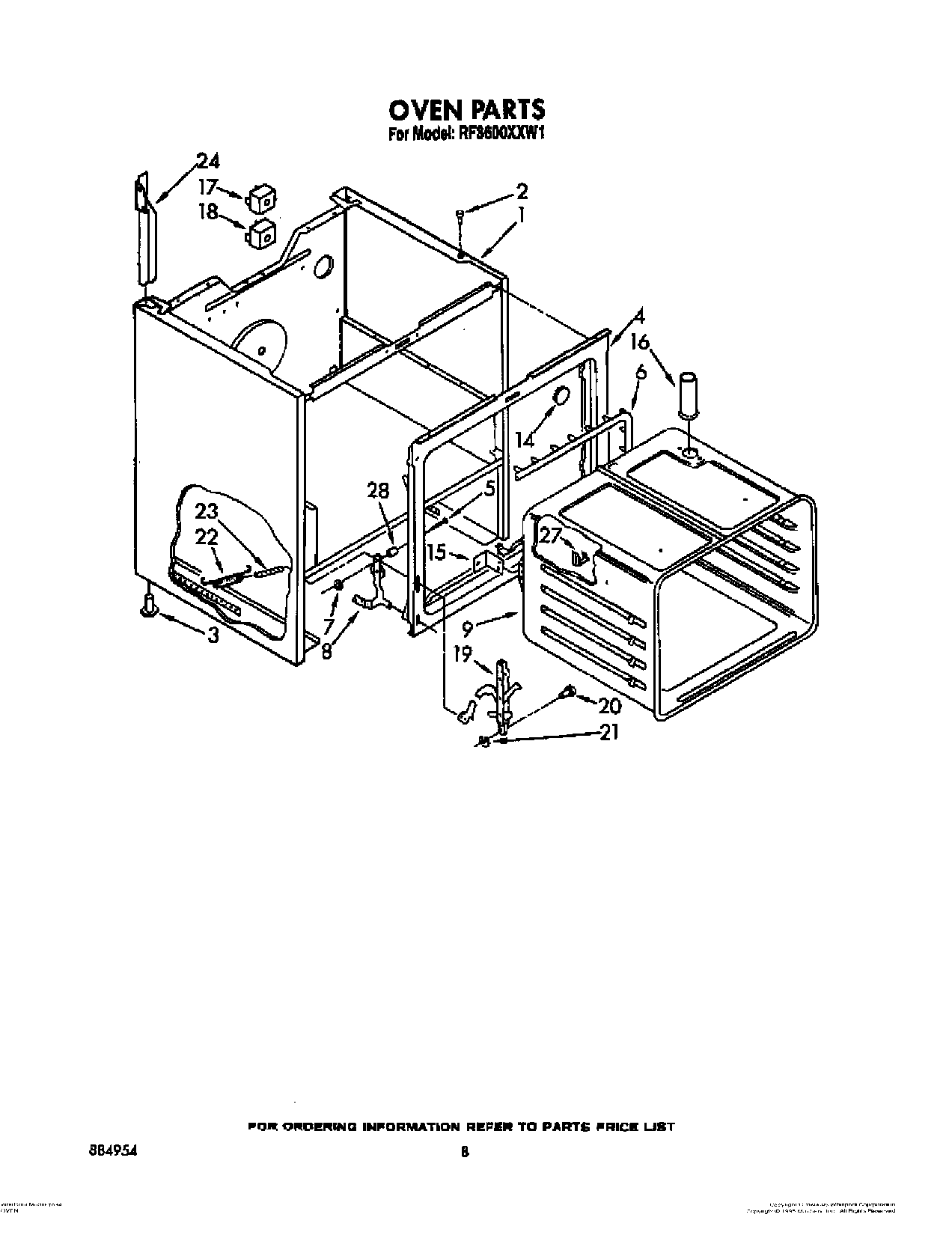

RF3600XXW1 06 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	Screw (Top)
4	Screw (3)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Sw
18	Switch, Bake
18	WPL 314215
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
27	98005642 Whirlpool Clip
28	Snubber, Door (2)
