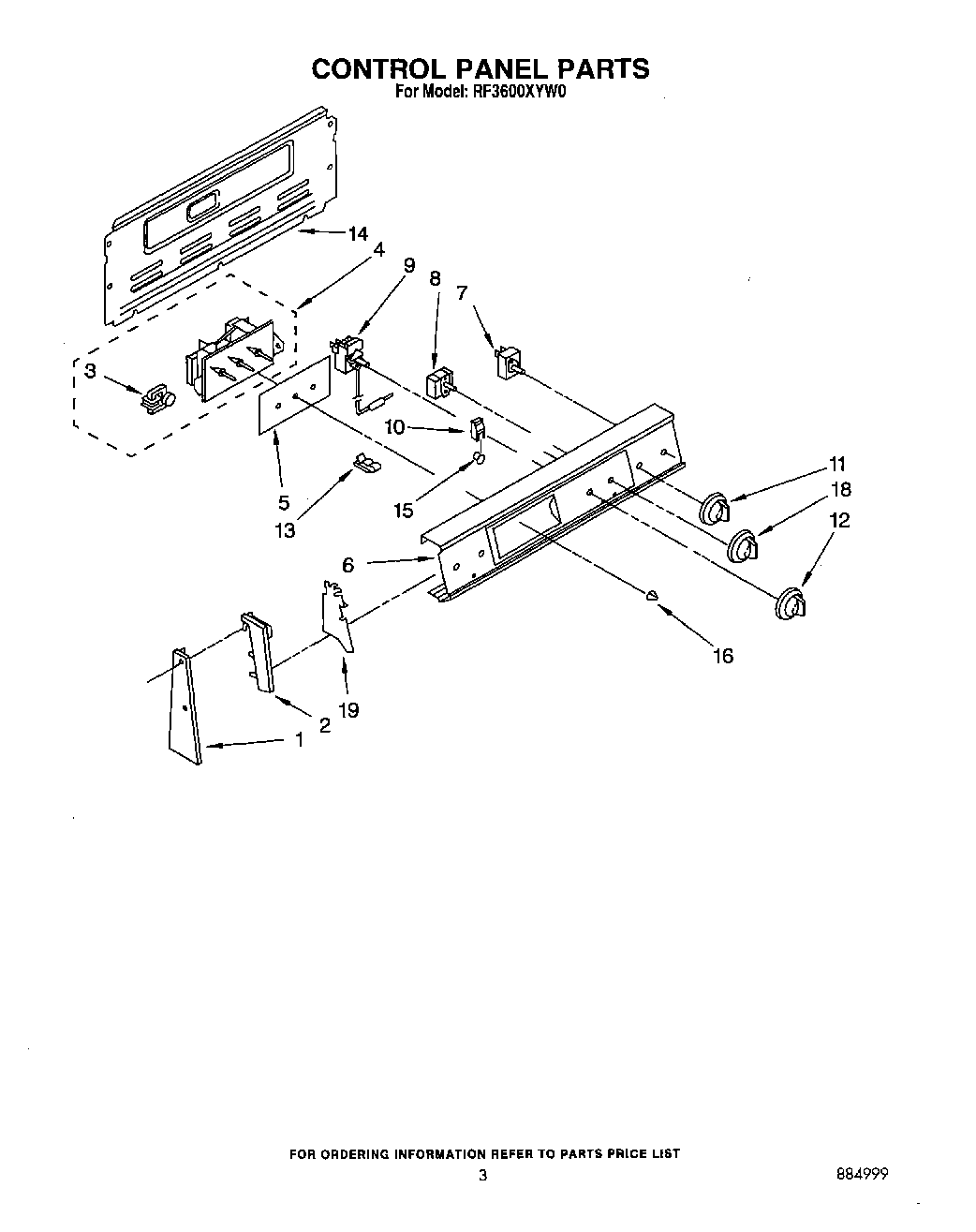

RF3600XYN0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
3Motor, Timer
4Timer, Control
5Glass, Timer
6Control Panel
7WP3149404 Whirlpool Oven Surface Element Switch
7WP486579 Whirlpool Air Conditioner Screw
7SWITCH-INF
8Switch, Selector
9Thermostat, Oven
9WP313808 Whirlpool Screw
10Light, Indicator (Surface Unit On)
10Light, Indicator (250V)
11Knob, (4) Infinite Switch (White/Almond/Gold)
12Knob (Temp) (White/Almond)
13Clip, Tube
14SCREW
14Harness-Conduit Asm.
15Lens, Amber
16WP3169181 Whirlpool Knob
18Knob (Selector)
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
