RF3600XYN0 05 – UNIT, LIT/OPTIONAL

RF3600XYN0 05 – UNIT, LIT/OPTIONAL

Written by

in

RF3600XYN0 05 – UNIT, LIT/OPTIONAL

Products

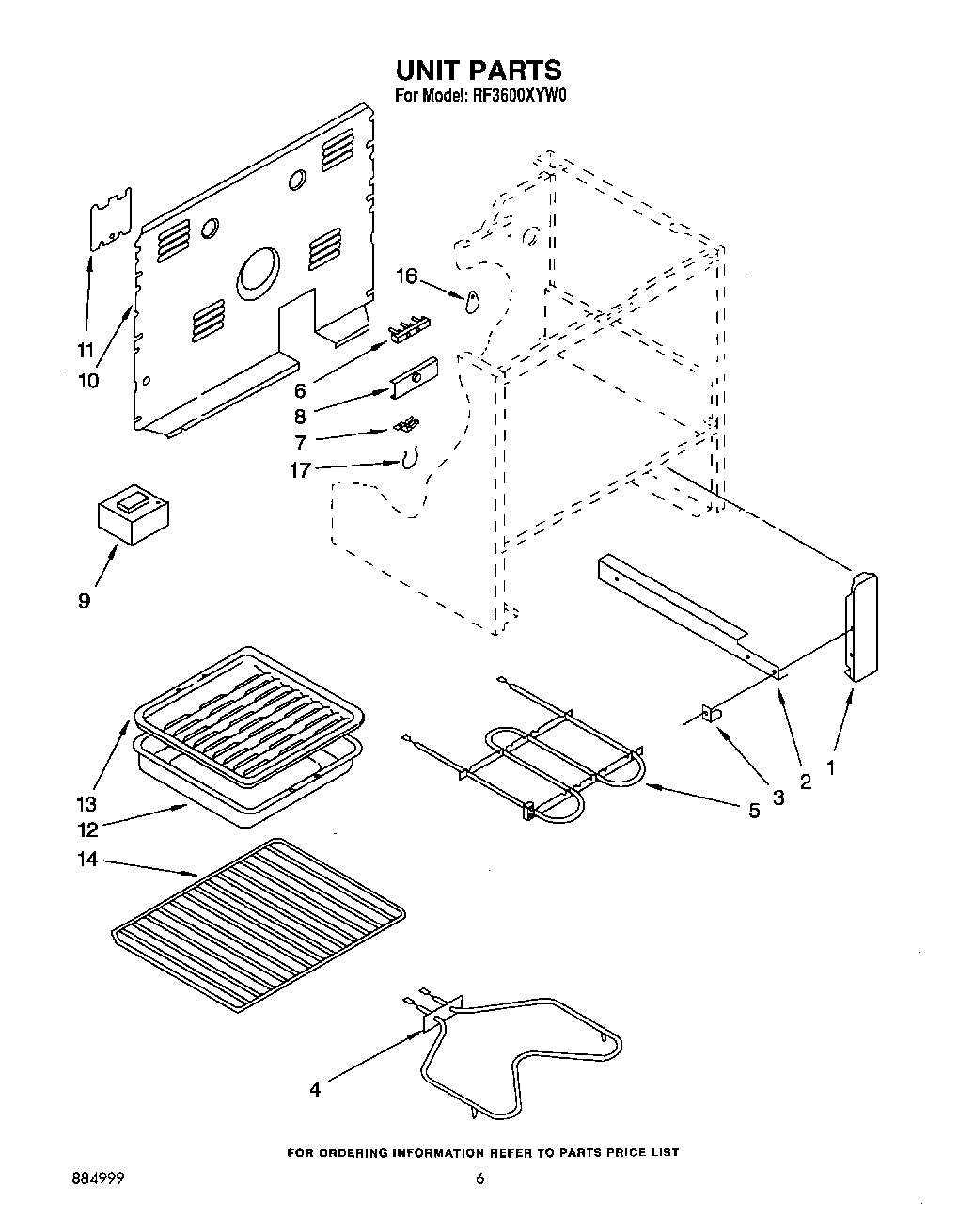

Position	Product
	WPL LIT3150657
	WPL LIT3150287
	WPL LIT3147395
	WPL LIT884999
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Block, Balance
9	340184 Whirlpool Screw
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
16	WPL 311982
16	Screw, 10A x 1/2 (2) (Black)
17	Wire (12 Ga. 150 c Black)
17	8212471 Whirlpool Oven Paint
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	Leveler (Thinner) (2oz.)
17	Grease
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	Golden Harvest
17	WPL 3169093
17	WPL 3169094
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	350942 Whirlpool Spray Paint
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	511873 Whirlpool Refrigerator Paint
17	WPL 799832
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	16515 Whirlpool Clip
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	350930 Whirlpool White Spray Paint
