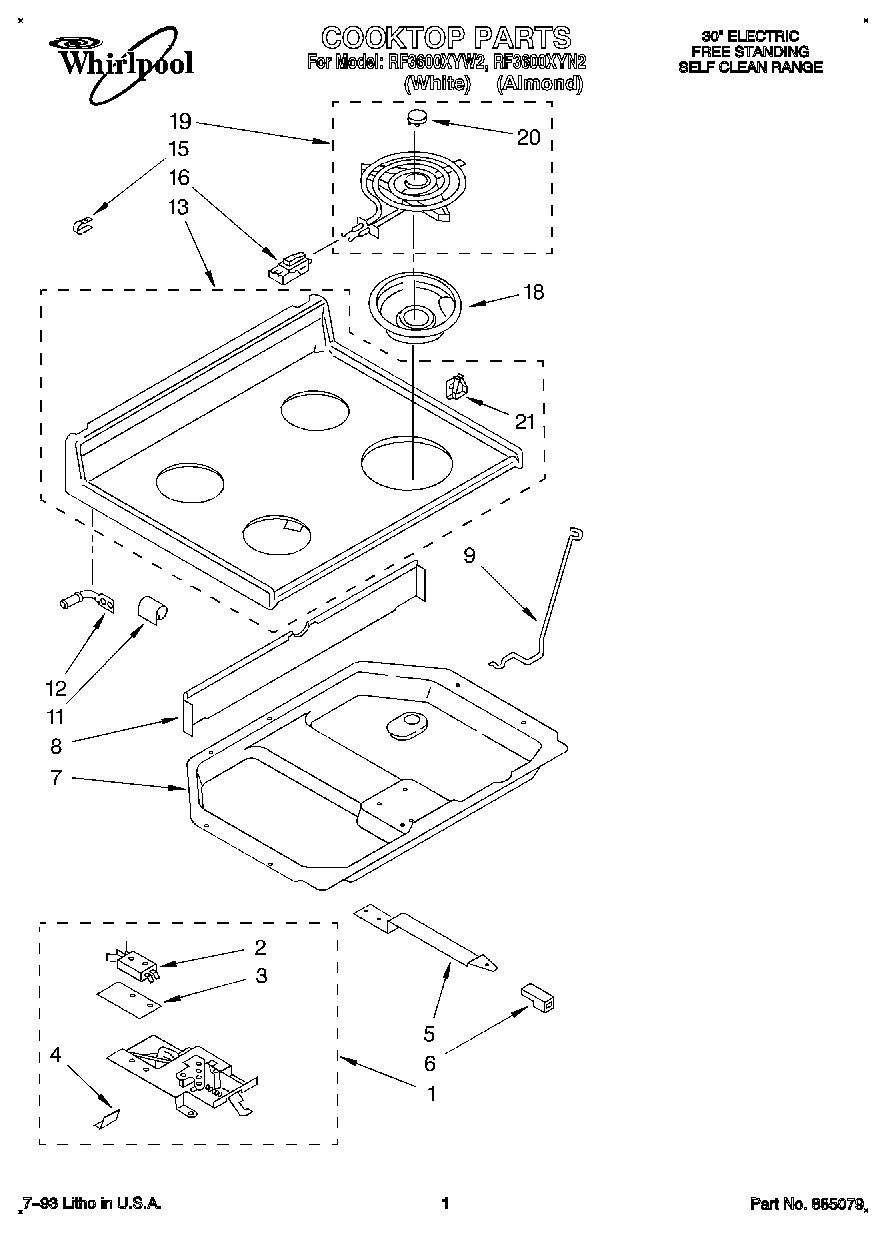

RF3600XYN2 01 – COOKTOP

Products

Position	Product
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
21	814103 Whirlpool Clip
21	Nut (4)
21	WP487887 Whirlpool Refrigerator Screw
