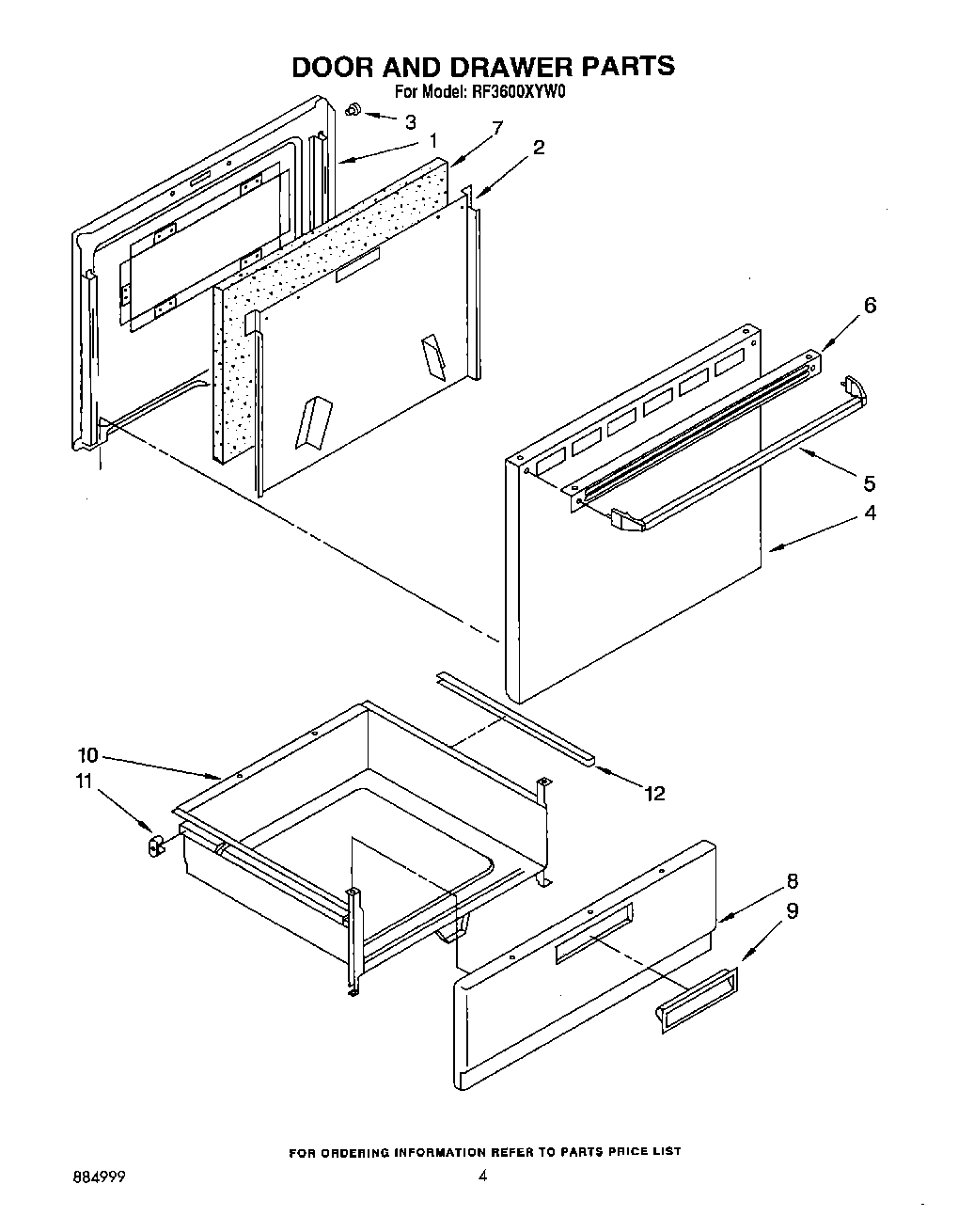

RF3600XYW0 04 – DOOR AND DRAWERadmin2025-04-26T12:46:48+00:00RF3600XYW0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 2 | Screw |
| 2 | Retainer, Insulation |
| 3 | Bumper (4) |
| 4 | Panel, Door (Almond) |
| 4 | Panel, Door (White) |
| 5 | Handle, Door |
| 5 | Panel, Door (Fastener (2)) |
| 5 | WP308499 Whirlpool Nut |
| 6 | Top, Door |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 7 | Insulation, Door |
| 8 | Panel, Drawer (White) |
| 8 | Panel, Drawer (Almond) |
| 9 | Handle, Snap-In (White) |
| 9 | Handle, Snap-In (Almond) |
| 10 | Drawer, Utility |
| 11 | Glide, Rear (2) |
| 11 | WP488787 Whirlpool Refrigerator Screw |
| 12 | Protector, Drawer (2) |
