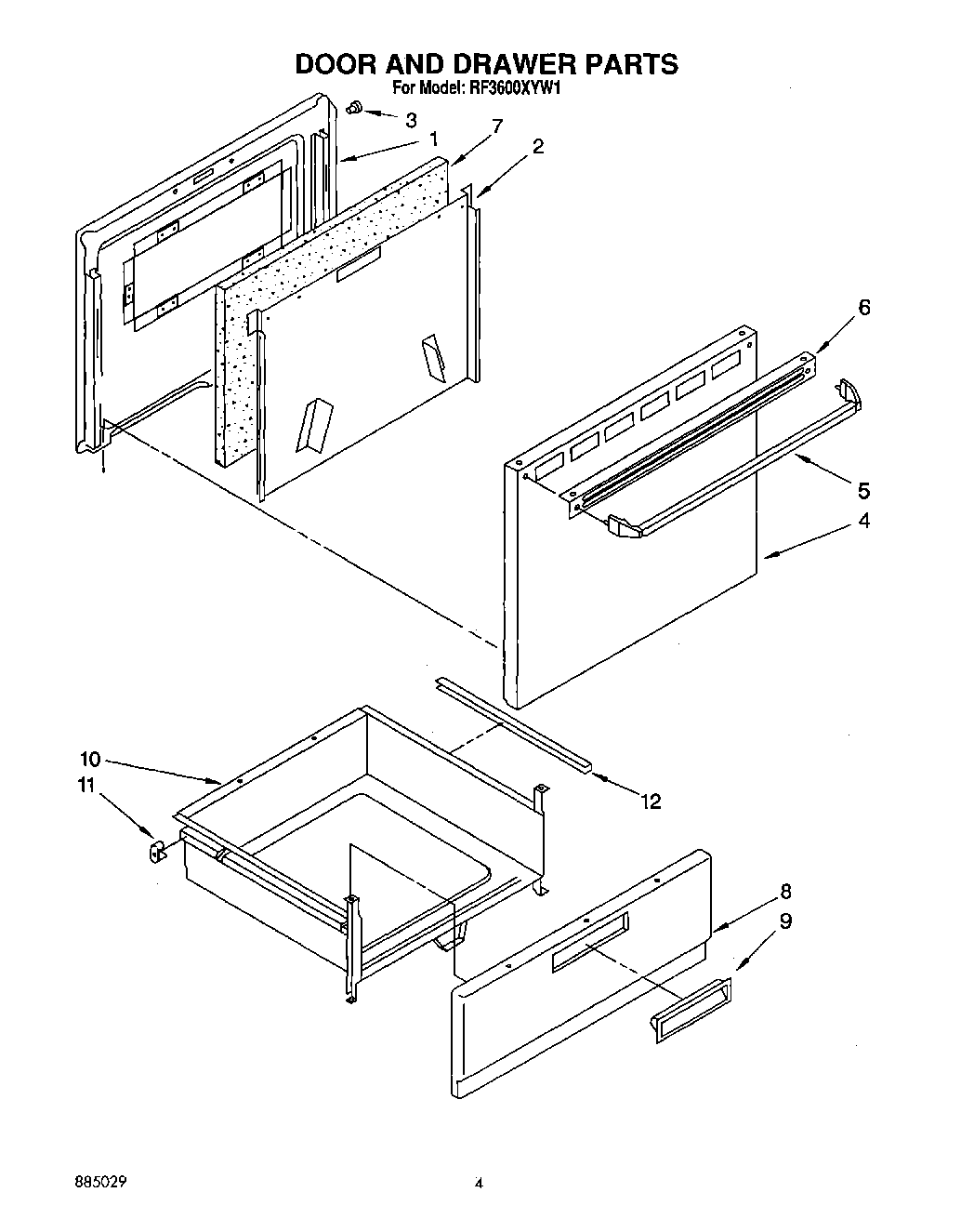

RF3600XYW1 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
2	Screw
2	Retainer, Insulation
3	Bumper (4)
4	Panel, Door (Almond)
4	Panel, Door (White)
5	Handle, Door
5	Panel, Door (Fastener (2))
5	WP308499 Whirlpool Nut
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Top, Door
7	Insulation, Door
8	WP488627 Whirlpool Refrigerator Screw
8	Panel, Drawer (White)
8	Panel, Drawer (Almond)
9	Handle, Snap-In (Almond)
9	Handle, Snap-In (White)
10	Drawer, Utility
11	WP488787 Whirlpool Refrigerator Screw
11	Glide, Rear (2)
12	Protector, Drawer (2)
