RF3600XYW2 05 – OVEN

RF3600XYW2 05 – OVEN

Written by

in

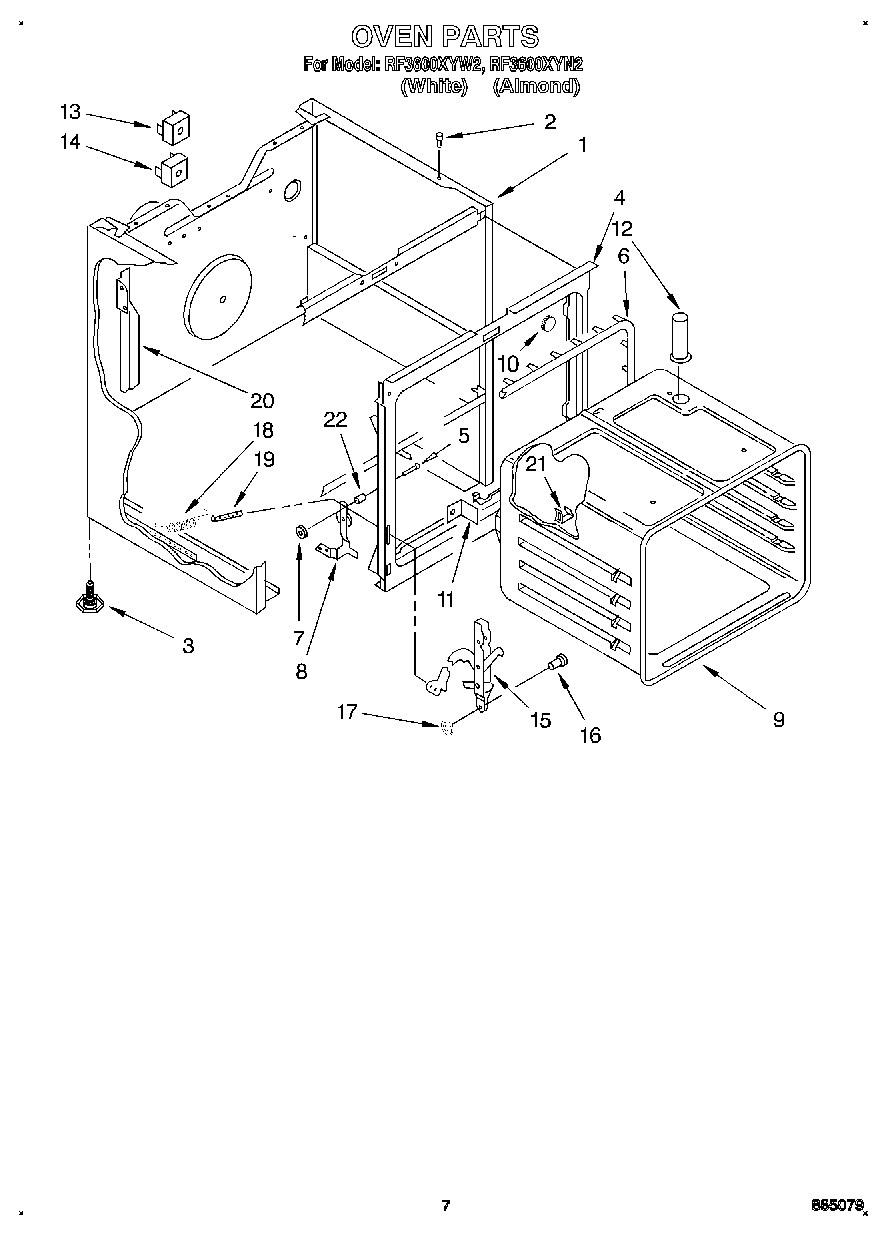

RF3600XYW2 05 – OVEN

Products

PositionProduct
1Main Chassis (White)
1Main Chassis (Almond)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Front Frame
4Screw (Top)
4Screw (3)
5Pin, Hinge Ear (2)
6Seal, Door
7Pushnut (2)
8Hinge, R.H.
8Hinge, L.H.
9Oven (30“ Conv.)
10Plug Button
11Bracket, Oven (Mounting)
12Screw, 10A x 1/2 (2) (Black)
129755804 Whirlpool Oven Vent Tube
13Sw
14WPL 314215
14Switch, Bake
15Channel, Arm (2)
16WP307986 Whirlpool Hinge Pin
17Retainer Ring (2)
18Spring, Oven Door (2)
19WP308125 Whirlpool Microwave Range/Cooktop Anchor
20Wire Cover
20Wire Cover-Controls (Right)
20SCREW
2198005642 Whirlpool Clip
22Snubber, Door (2)
