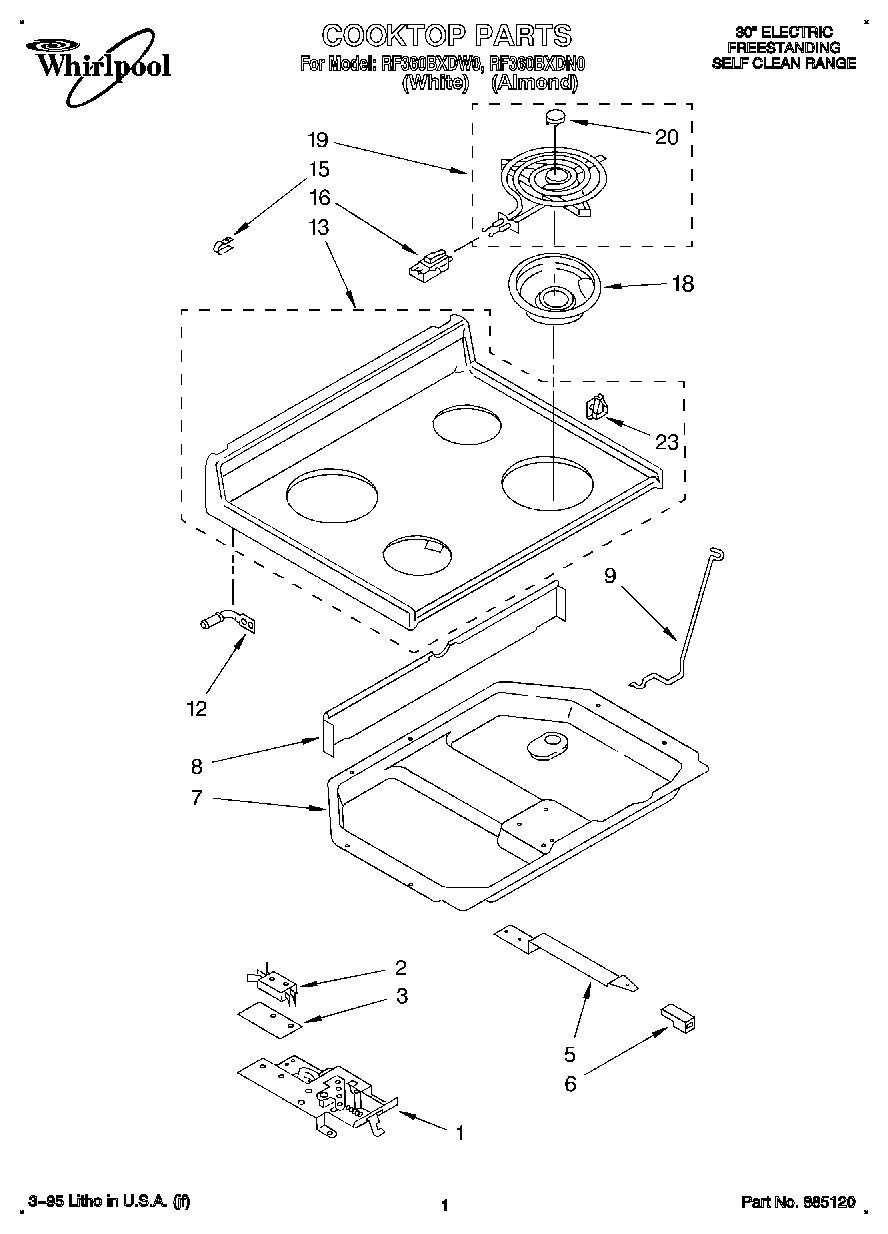

RF360BXDN0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Wiring Diagram
	WPL LIT3150400
	Instructions, Installation
1	Latch Mechanism
2	WPL 312717
2	Safety Switch
3	Insulator, Switch
5	WP486579 Whirlpool Air Conditioner Screw
5	Handle, Latch
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	WP487887 Whirlpool Refrigerator Screw
23	814103 Whirlpool Clip
23	Nut (4)
