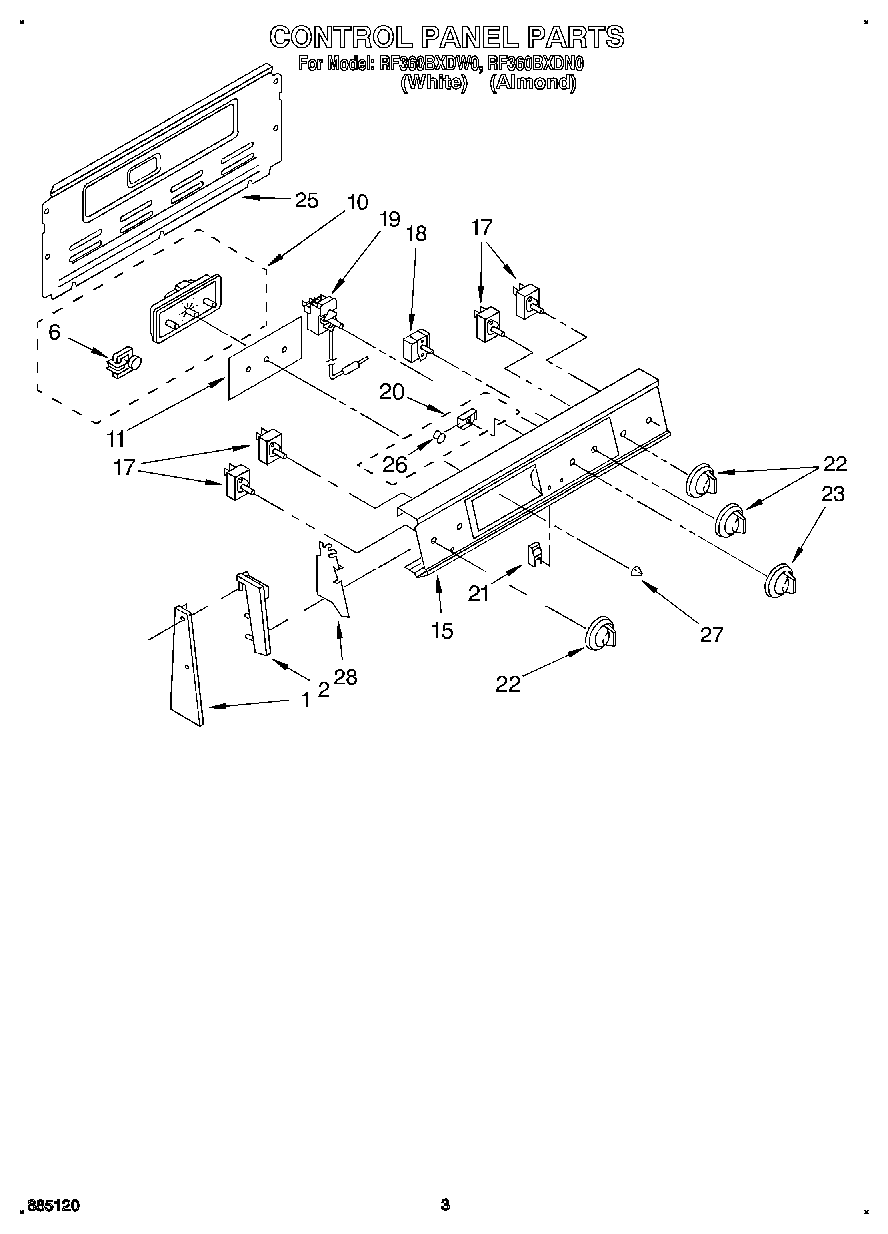

RF360BXDN0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap, R.H. (Black)
2	Screw,
6	Motor, Timer
10	Timer, Control
11	Glass, Timer
15	Panel, Control
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Screw, 8-32 x 3/16 (2)
18	Switch, Selector (5 Position)
19	Thermostat, 0ven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Indicator Light (Surface Unit On)
22	WP3196231 Whirlpool Knob
23	Knob, Thermostat (Black)
25	Rear Cover Contr
25	SCREW
26	Lens, Amber
27	WP3169181 Whirlpool Knob
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
