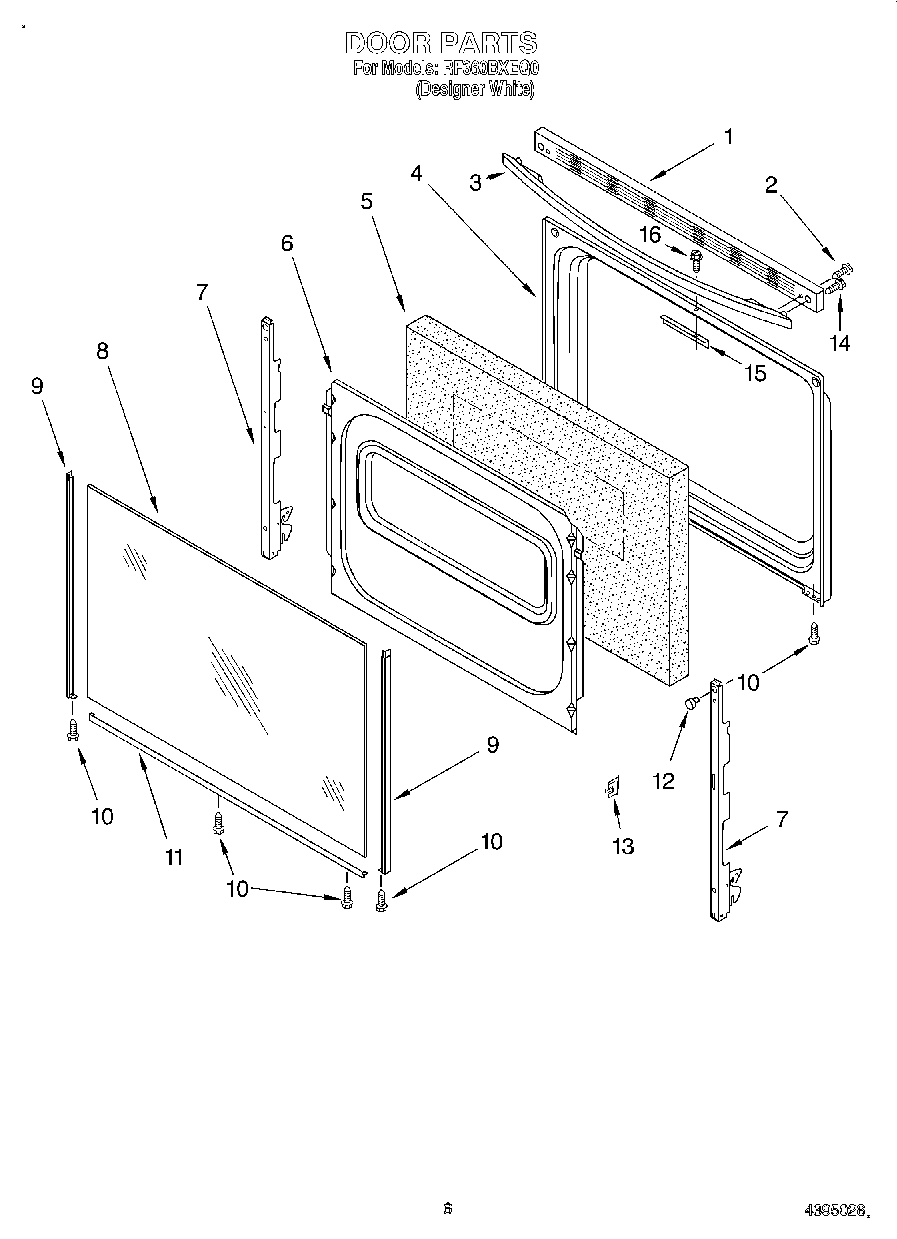

RF360BXEQ0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL 3196697
	3400964 Whirlpool Oven Clip
	Literature (Installation, Instructions (Template))
	W11244557 Whirlpool Screw
	Harness, Wire (Door Switch)
	3196696 Whirlpool Clip
	Clip, Ground Wire
	3184020 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	814381 Whirlpool Pin
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 3196483
	WPL LIT3196276
	WPL LIT3195944
	WPL LIT3196147
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
7	WP3196175 Whirlpool Screw
8	Glass, Outer Door (White)
10	W10491985 Whirlpool Screw
11	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
12	238614 Whirlpool Bumper Hinge
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	Wire (12 Ga. 150 c Black)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	WP3400832 Whirlpool Screw
16	Wire (14 Ga. 150 c Yellow)
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	1
16	Golden Harvest
16	8212471 Whirlpool Oven Paint
16	Grease
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	350942 Whirlpool Spray Paint
16	WPL 72112
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	511873 Whirlpool Refrigerator Paint
16	WPL 799832
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	350930 Whirlpool White Spray Paint
