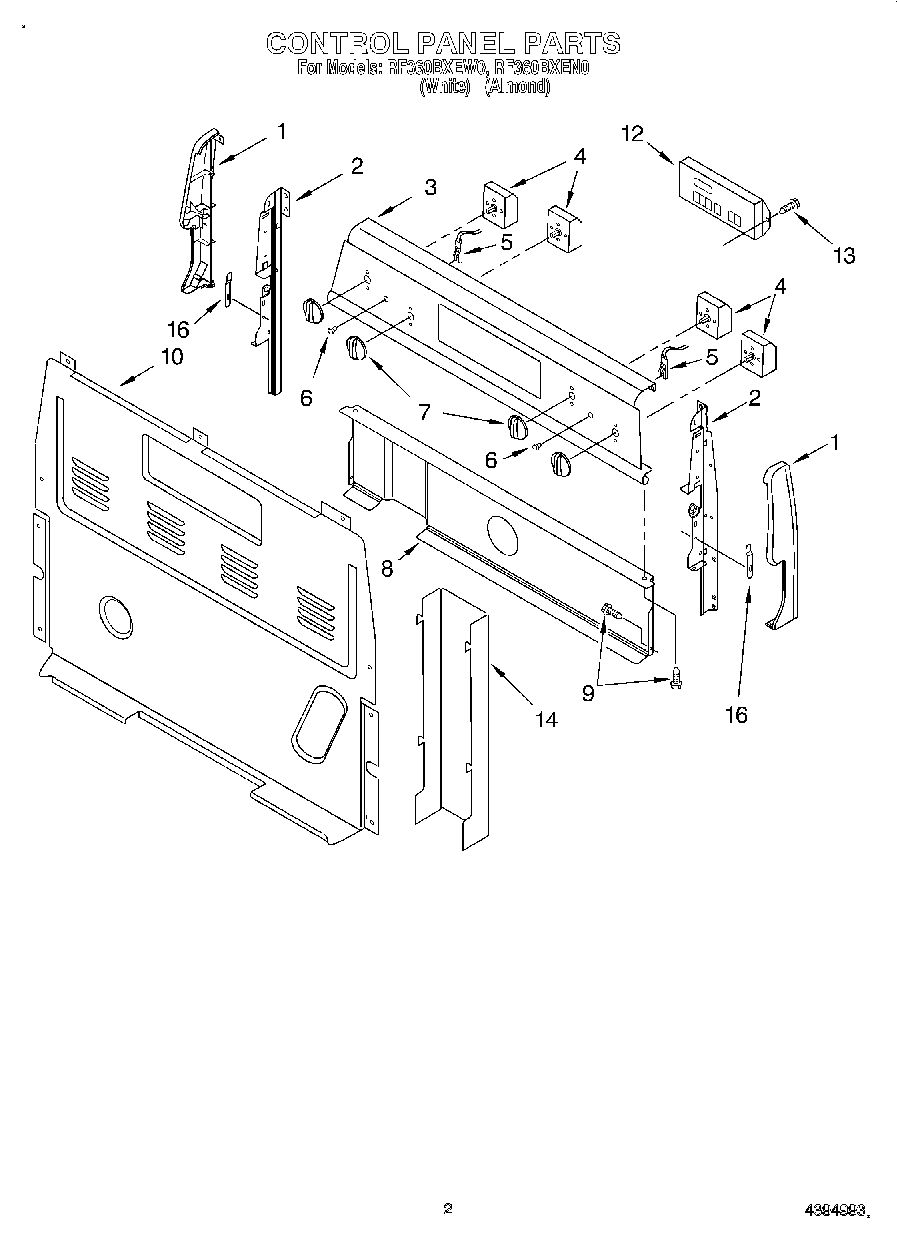

RF360BXEW0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard
4	Switch, Infinite (Screw (8))
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	WP3196231 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	Control, Range
14	SCREW
14	WPW10326122 Whirlpool Black Cover
16	3196200 Whirlpool Clip
