RF360BXPW0 02 – COOK TOP
Written by
in

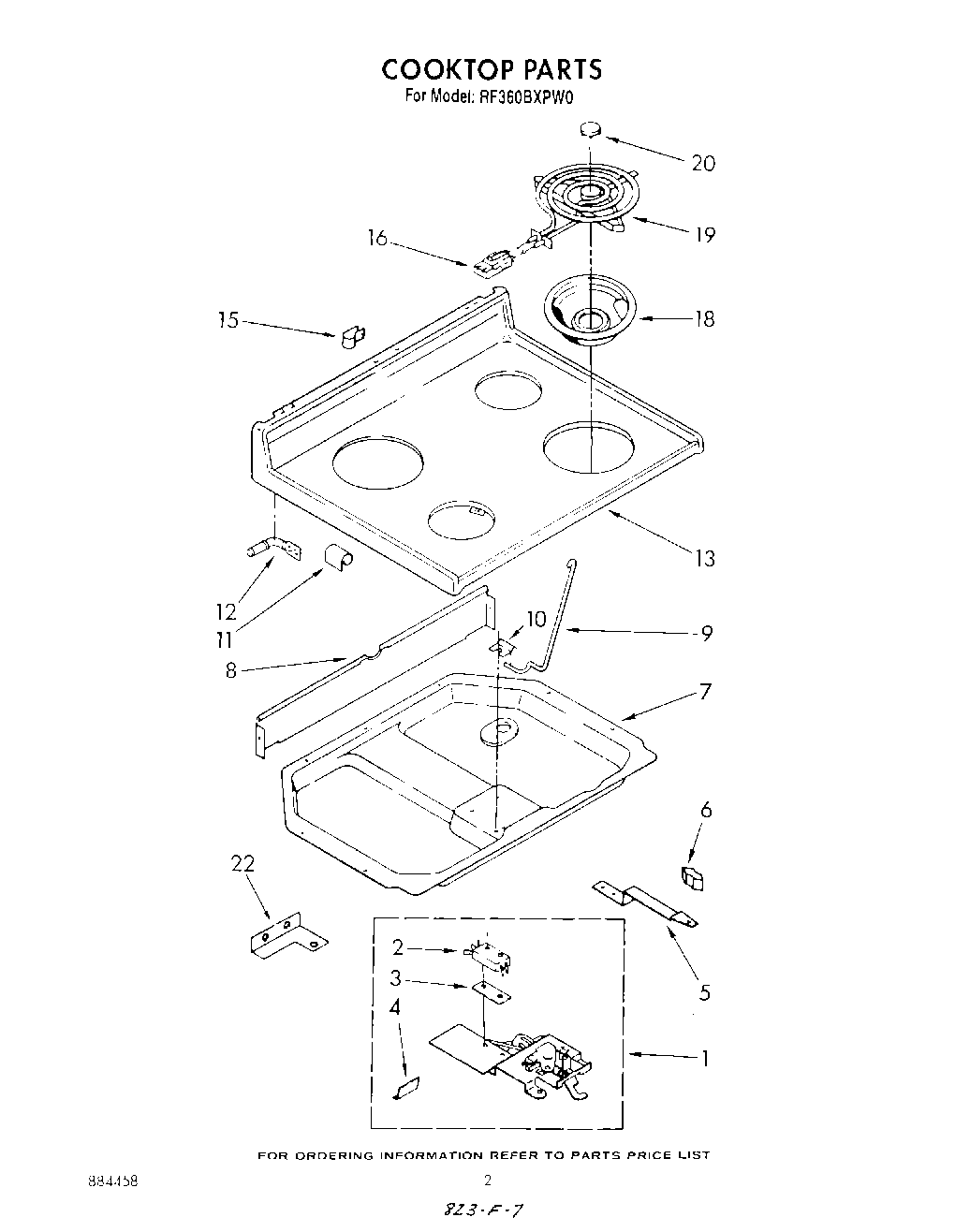

RF360BXPW0 02 – COOK TOP
Products
Position
Product
List, Parts
Guide, Use & Care
WPL LIT313473
WPL LIT313358
1
Latch Assembly
2
Screw
2
Safety Switch
3
Insulator, Switch
4
WP313808 Whirlpool Screw
4
Shield, Latch
4
Screw
5
Screw
5
Screw (3)
5
Handle, Latch
5
WP488627 Whirlpool Refrigerator Screw
6
Knob, Latch
7
Burner Box
8
Shield, Wiring
9
Rod, Cooktop
10
Retainer, Cooktop
10
WP3390631 Whirlpool Screw
11
Bracket, Cooktop (2)
12
Pin, Cooktop (2)
13
Cooktop (White)
13
Cooktop (Almond)
15
WP308605 Whirlpool Refrigerator Clamp
15
SCREW
16
BURNER RECEPTACLE KIT
18
DRIP BOWL 8" W/HOLE CHROME
18
WPW10196406 Whirlpool 6" Chrome Drip Bowl
19
WP660533 Whirlpool Oven 8" Surface Element
19
WP660532 Whirlpool Oven Surface Element
20
Medallion (4)
22
Screw, 10A x 1/2 (2) (Black)
22
WPL 312320
←
