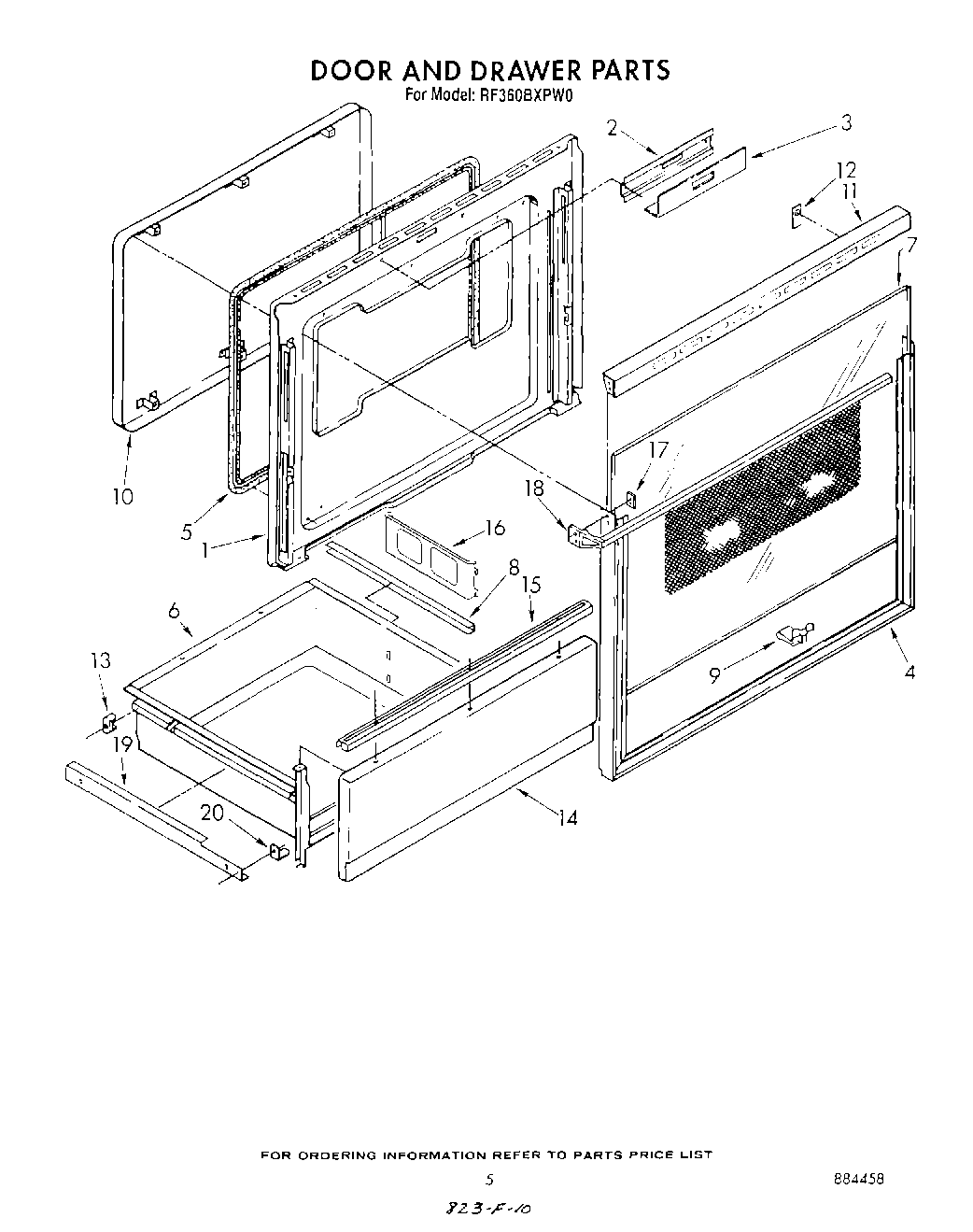

RF360BXPW0 04 – DOOR AND DRAWERadmin2025-04-26T12:48:12+00:00RF360BXPW0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | WP488729 Whirlpool Refrigerator Door Screw |
| 1 | WP90296 Whirlpool Clip |
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Channel, Latch |
| 3 | Shield, Insulation |
| 3 | Screw (2) |
| 4 | frame, door 30`` |
| 5 | Seal, Fiberglass |
| 6 | Drawer, Utility |
| 7 | Glass, Outer |
| 8 | Protector, Drawer (2) |
| 9 | clip, glass (10) |
| 10 | Panel, Inner |
| 11 | Top, Door Frame |
| 12 | hold down, glass (2) |
| 13 | Glide, Rear (2) |
| 14 | WP488787 Whirlpool Refrigerator Screw |
| 14 | Panel, Drawer (Almond) |
| 14 | Panel Drawer (White) |
| 15 | Handle, Drawer |
| 15 | WP488627 Whirlpool Refrigerator Screw |
| 16 | Rack, Literature |
| 17 | Clip (2) |
| 18 | Handle, Oven Door |
| 18 | WP355515 Whirlpool Screw |
| 19 | Rail R.H. (Includes Illus. 3) |
| 19 | Screw, 10A x 1/2 (2) (Black) |
| 19 | rail l.h. (includes illus. 3) |
| 20 | Glide, Front (2) |
