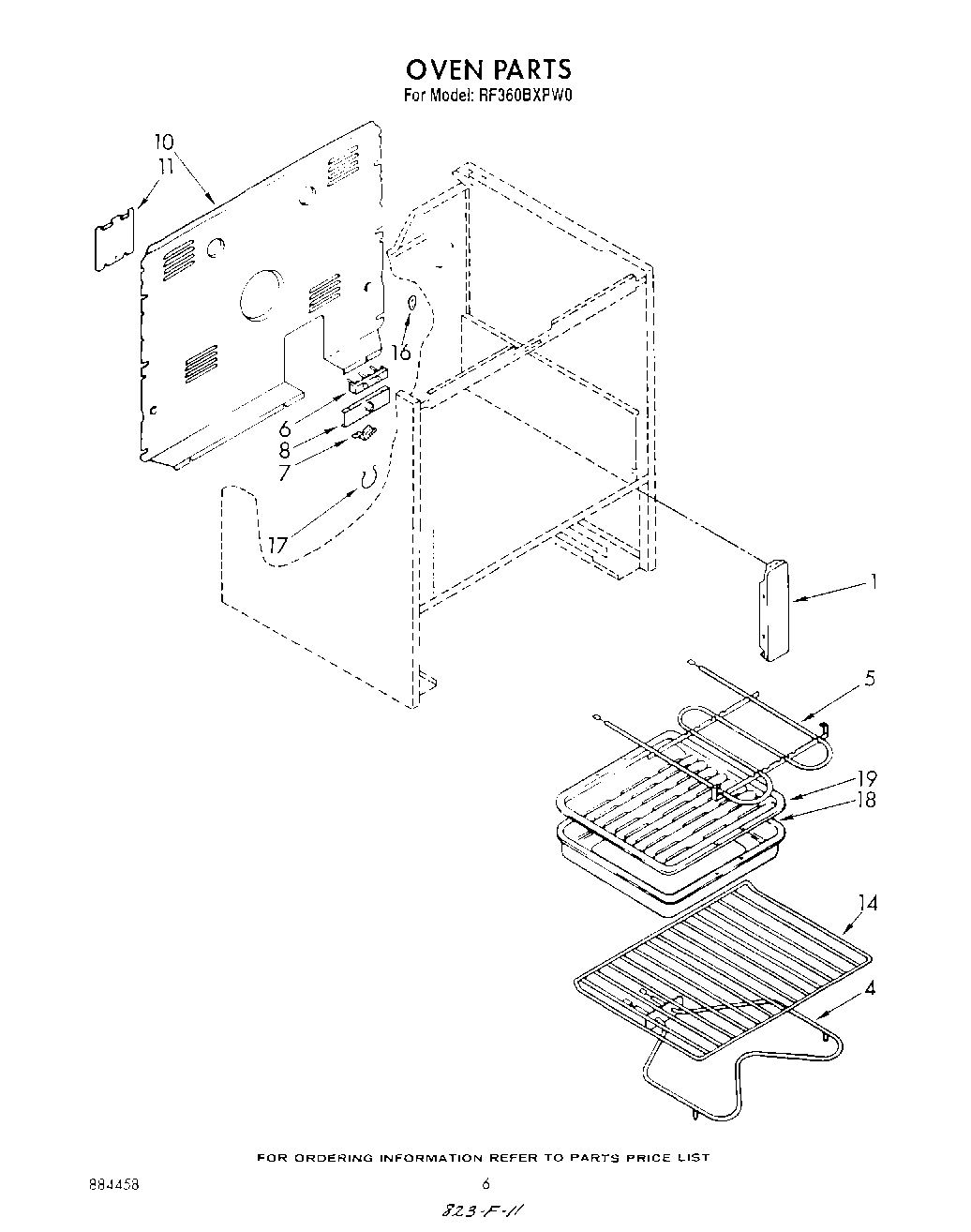

RF360BXPW0 05 – OVEN , LIT/OPTIONAL

RF360BXPW0 05 – OVEN , LIT/OPTIONAL

Written by

in

RF360BXPW0 05 – OVEN , LIT/OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WP312309 Whirlpool Bake Element
	Unit, Broil (208V)
1	Bracket, Mounting (2)
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
14	WPL 308173
16	Screw, 10A x 1/2 (2) (Black)
16	WPL 311982
17	16515 Whirlpool Clip
19	242831 Whirlpool Oven Wire
19	Rotisserie Kit (RCK 81)
19	Wire (14 Ga. 150 c Blue)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Orange)
19	Enamel, New Avocado (1 Qt. Uncut)
19	Wire (14 Ga. 150 c Yellow)
19	Grease
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	8212471 Whirlpool Oven Paint
19	Leveler (Thinner) (2oz.)
19	Enamel, Coffee (1 Qt. Uncut)
19	1
19	Wire, 25` Roll (Red 14 Ga.)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	350930 Whirlpool White Spray Paint
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	Platinum (Uncut)
19	WPL 72112
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Black 14 Ga.)
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	WPL 799832
19	350942 Whirlpool Spray Paint
19	350956 Whirlpool Spray Assembly
