RF360BXPW0 06 – SECTION
Written by
in

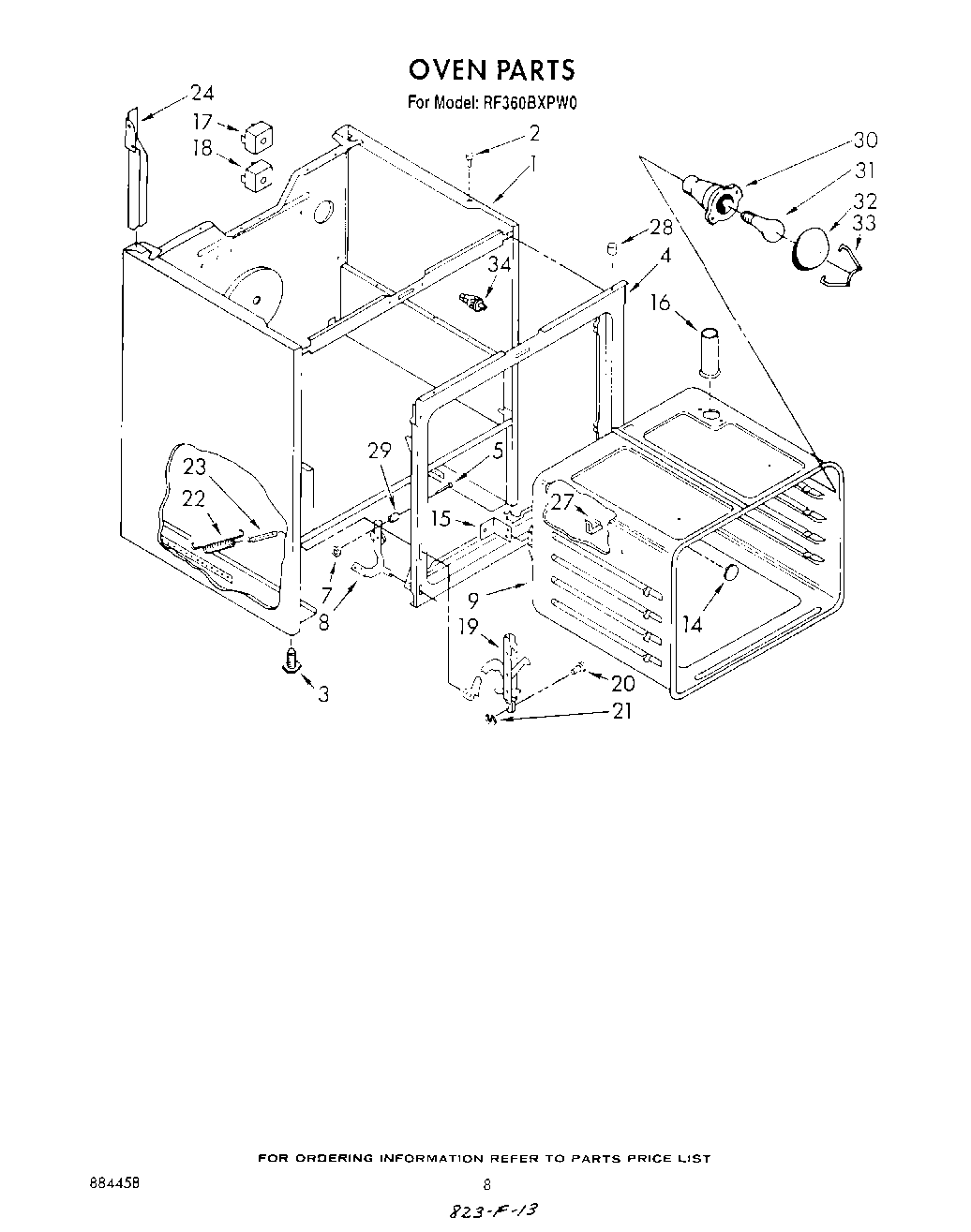

RF360BXPW0 06 – SECTION
Products
Position
Product
1
Main Chassis (Almond)
1
Main Chassis (White)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Frame, Front
5
Pin, Hinge Ear (2)
7
Pushnut (2)
8
Hinge (R.H.)
8
Hinge (L.H.)
9
Screw (3)
9
Oven (30“ Pyro)
14
Plug Button
15
Bracket, Oven (Mounting)
16
Screw, 10A x 1/2 (2) (Black)
16
Vent, Oven
17
Sw
18
Switch, Bake
19
Channel, Arm (2)
20
WP307986 Whirlpool Hinge Pin
21
Retainer Ring (2)
22
Spring, Oven Door (2)
23
WP308125 Whirlpool Microwave Range/Cooktop Anchor
24
Wire Cover
24
SCREW
24
Wire Cover-Controls (Right)
27
98005642 Whirlpool Clip
28
Panel, Drawer (Screw, 8-32 (3))
28
locator, cooktop
29
Snubber, Door (2)
30
Socket, Oven Light
30
Screw (10-12 x .875)
31
RANGE ONLY 40W 120V APPL BULB
32
Cover, Light
33
Retainer, Light
34
Switch, Door
←
