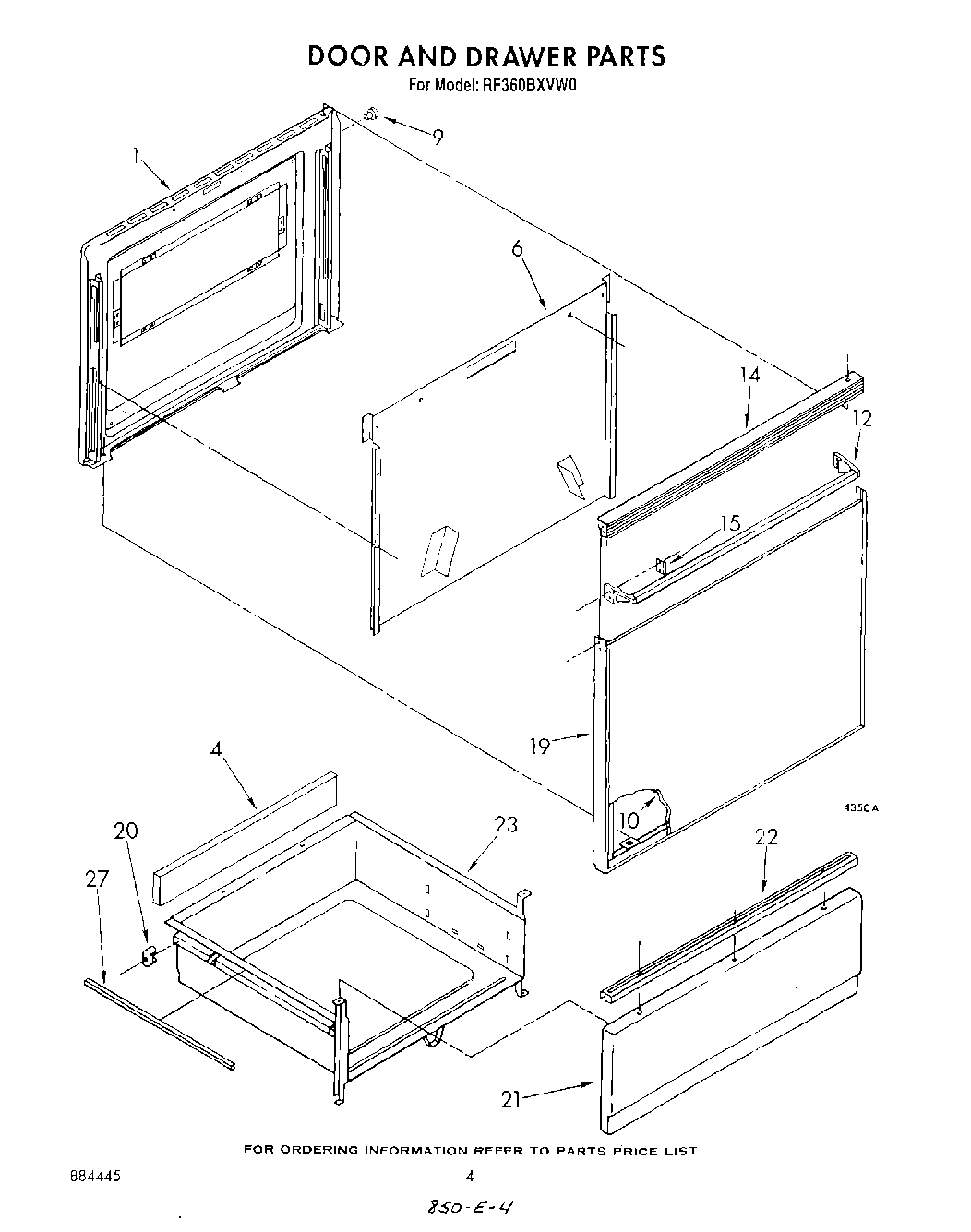

RF360BXVM0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
4	Pad, Sound
5	Insulation
6	Screw
6	Retainer, Insulation
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Oven Door
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Top, Door (Black Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel, Drawer (Platinum)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Drawer, Utility
27	Protector, Drawer (2)
