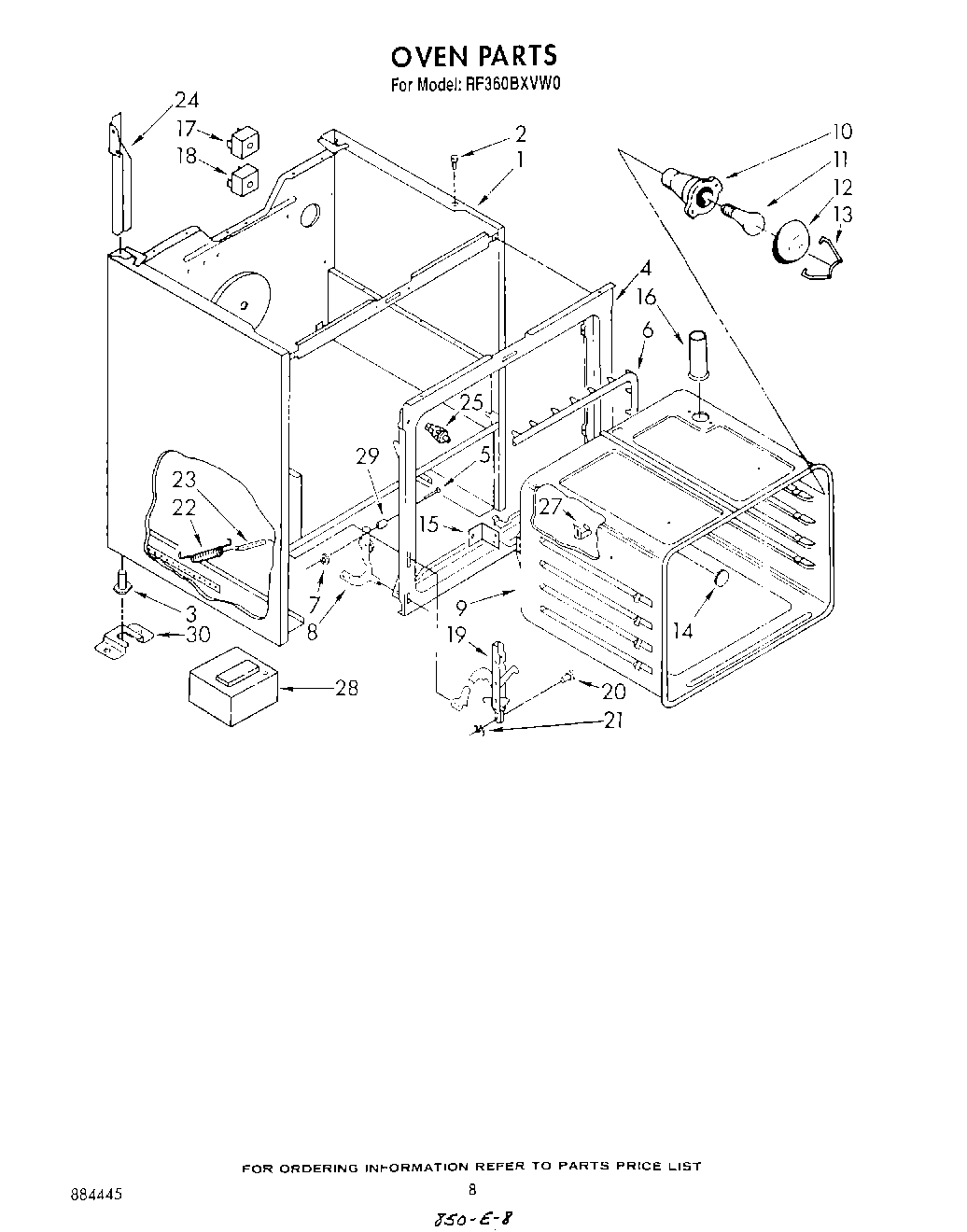

RF360BXVN0 06 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (Platinum)
1	Main Chassis (White)
1	Main Chassis (Harvest Gold)
1	Main Chassis (Toast)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
4	WP313808 Whirlpool Screw
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Screw (3)
9	Oven (30“ Pyro)
10	Socket, Oven Light
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Sw
18	WPL 314215
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Switch, Door
27	98005642 Whirlpool Clip
28	Block, Balance
28	340184 Whirlpool Screw
29	Snubber, Door (2)
30	Anchor, Plastic
30	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
30	Screw
