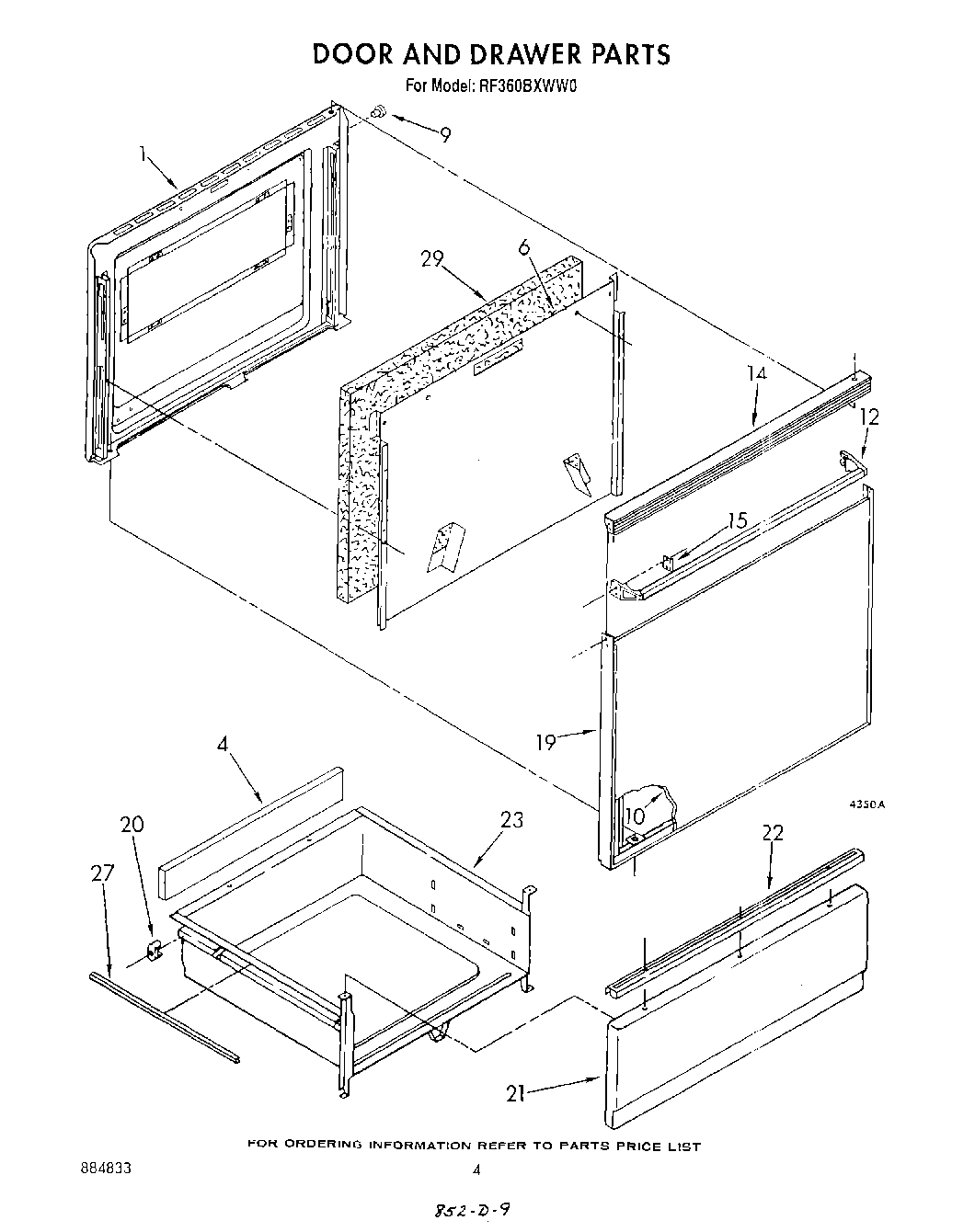

RF360BXWN0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
4	Pad, Sound
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Oven Door
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Top, Door (Black Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Drawer, Utility
27	Protector, Drawer (2)
29	Insulation, Door
