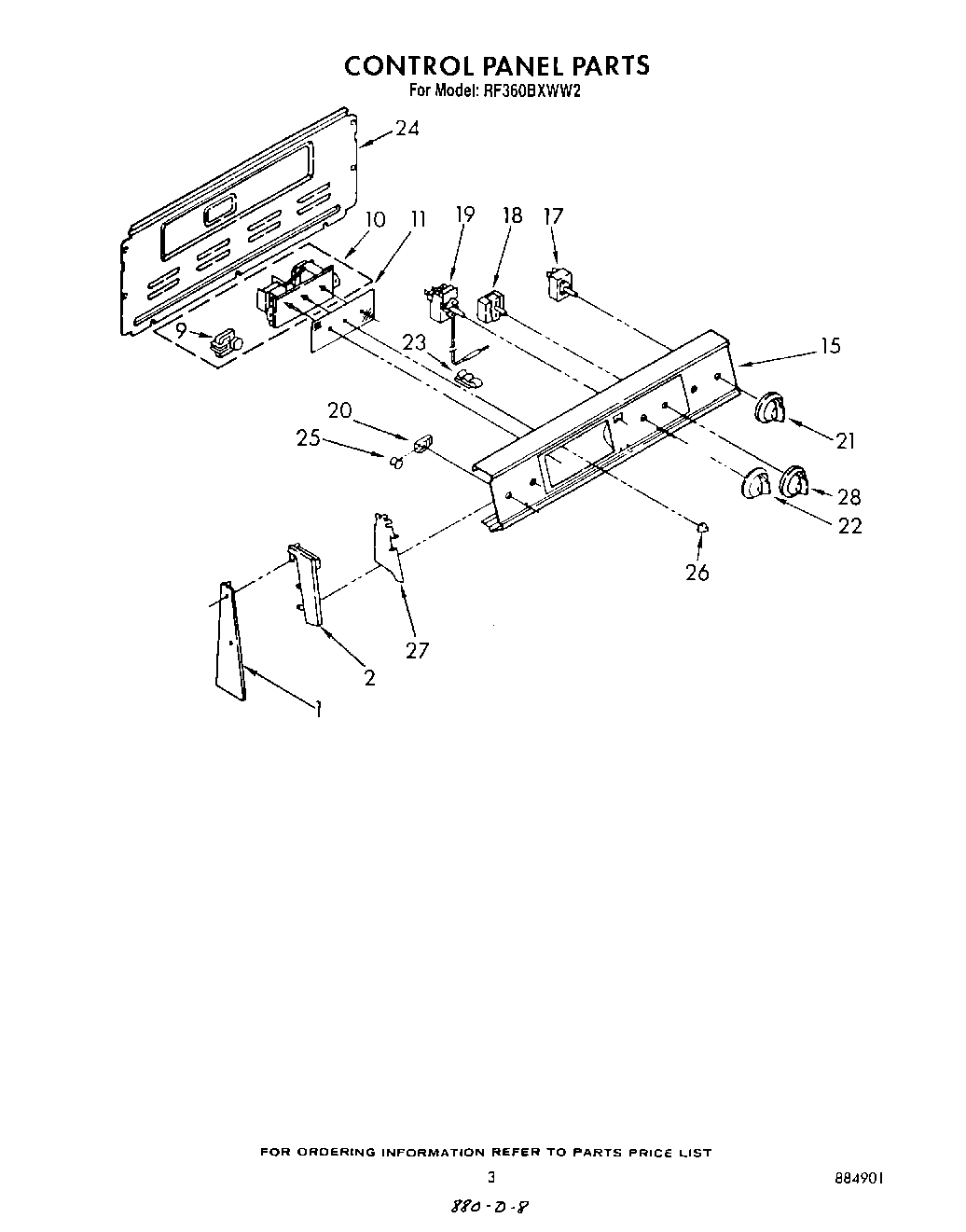

RF360BXWN2 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
9	Motor, Timer
10	Timer, Auto
11	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
17	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (Surface Unit (2))
20	Light, Indicator (250V)
20	Indicator Light (1)
21	WP3149983 Whirlpool Knob
22	Knob, Oven Temp.
23	Clip, Tube
24	SCREW
24	Harness-Conduit Asm.
25	Lens, Amber
26	Spring (3)
26	WP3169181 Whirlpool Knob
27	Shield (2)
27	WP965173 Whirlpool Dishwasher Screw
28	Knob, Selector
