RF360BXWN2 05 – UNIT , LITERATURE AND OPTIONAL

RF360BXWN2 05 – UNIT , LITERATURE AND OPTIONAL

Written by

in

RF360BXWN2 05 – UNIT , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3150570
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Paint, Spray 13 Oz. (Avocado)
paint, spray 13 oz. (coffee)
Paint, Touch-Up 1/2 Oz. (Coffee)
72109 Whirlpool Dacor Avocado Touch-Up Paint
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL LIT3150557
WPL ARI122634A
Instructions, Installation
WPL LIT3149507
WPL LIT884901
Grease
8212471 Whirlpool Oven Paint
Leveler (Thinner) (2oz.)
Enamel, New Avocado (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
1
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
799344 Whirlpool Refrigerator Paint
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest
72113 Whirlpool Touch-Up Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
Almond (Uncut)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
Golden Harvest (Uncut)
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
WPW10208653 Whirlpool Insulation
350942 Whirlpool Spray Paint

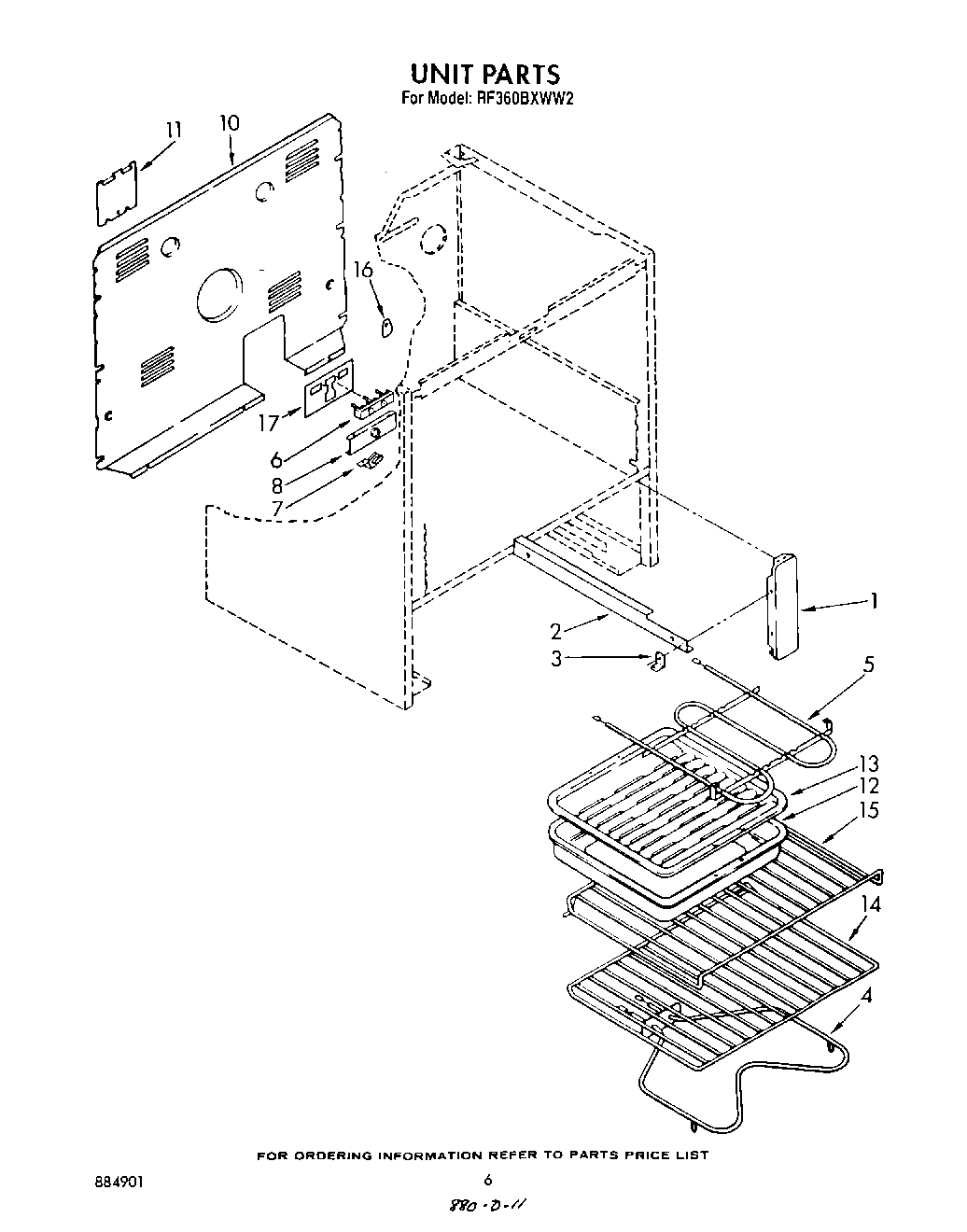

1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw (2)
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
16WPL 311982
16Screw, 10A x 1/2 (2) (Black)
17Barrier, Shield
