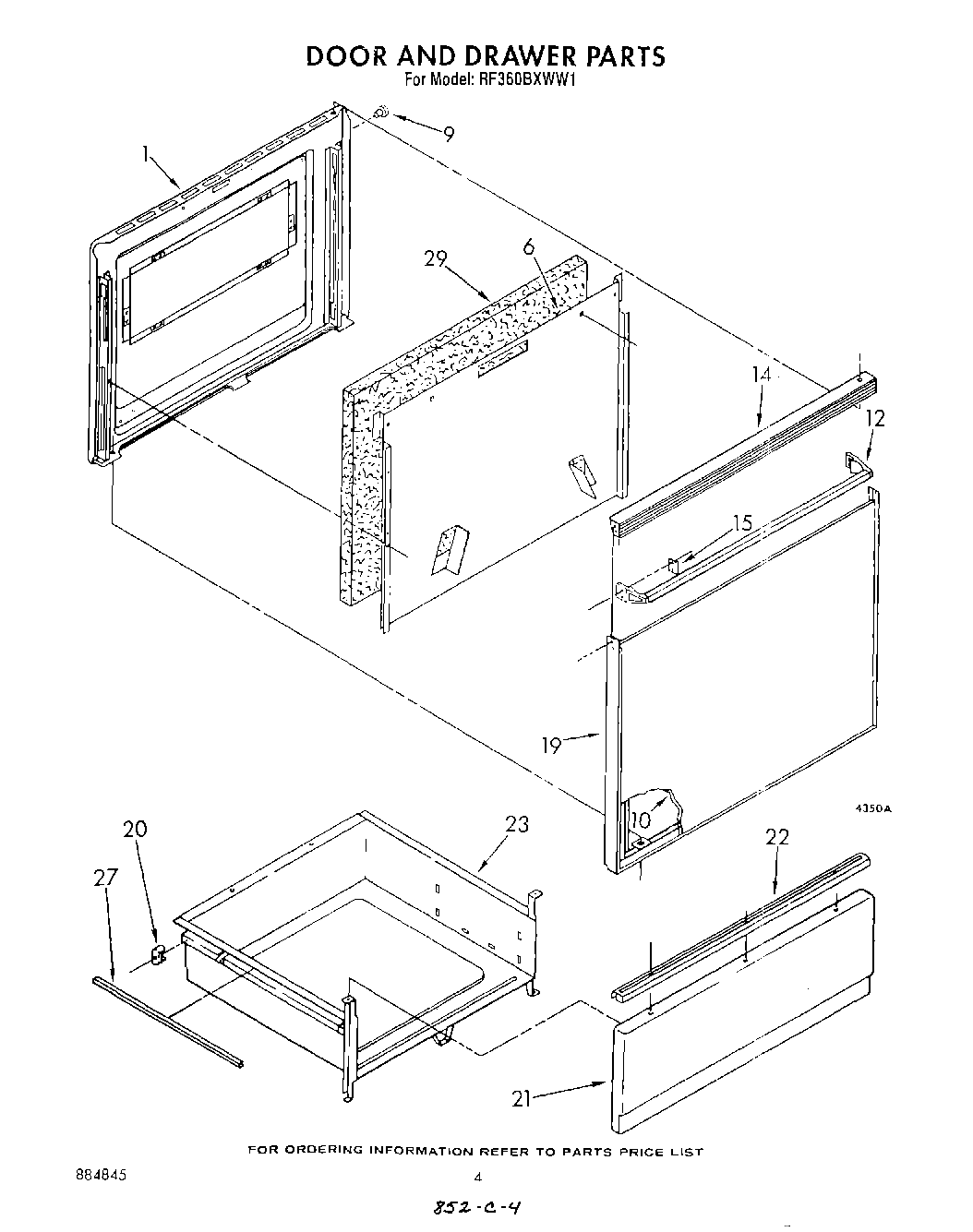

RF360BXWW1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Oven Door
14	Top, Door (Black Model)
14	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
15	WP355515 Whirlpool Screw
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Drawer, Utility
27	Protector, Drawer (2)
29	Insulation, Door
