RF360BXXN0 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3150646
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	WPL 310433
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	WPL LIT3150260
	Instructions, Installation
	WPL LIT884933
	Grease
	8212471 Whirlpool Oven Paint
	Leveler (Thinner) (2oz.)
	Enamel, Coffee (1 Qt. Uncut)
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Black 14 Ga.)
	350956 Whirlpool Spray Assembly
	WPL 799832
	72017 Whirlpool Appliance Touch-Up Paint White
	511873 Whirlpool Refrigerator Paint
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint

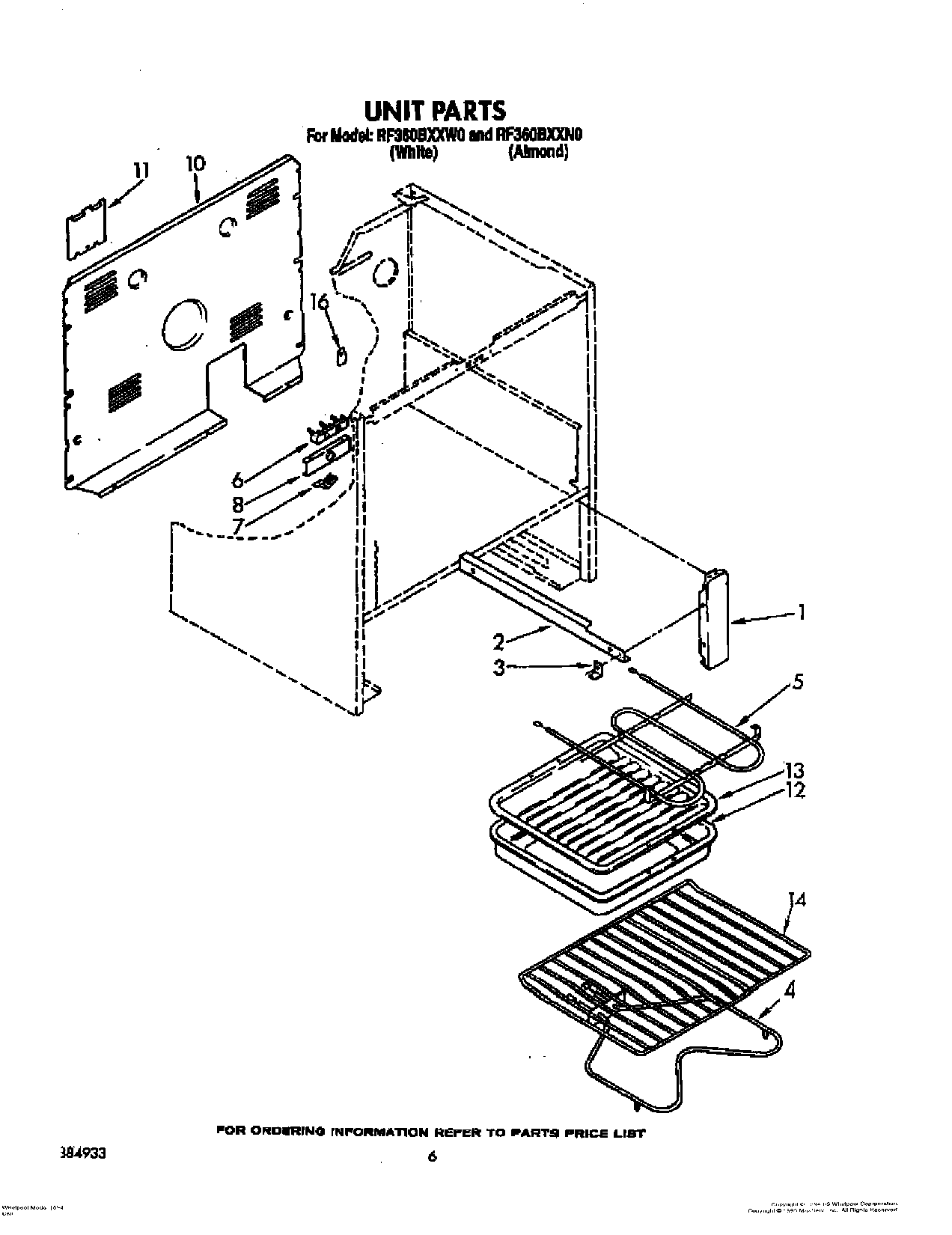

1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
16	WPL 3169093
16	Screw, 10A x 1/2 (2) (Black)
16	WPL 311982
16	WPL 3169094
