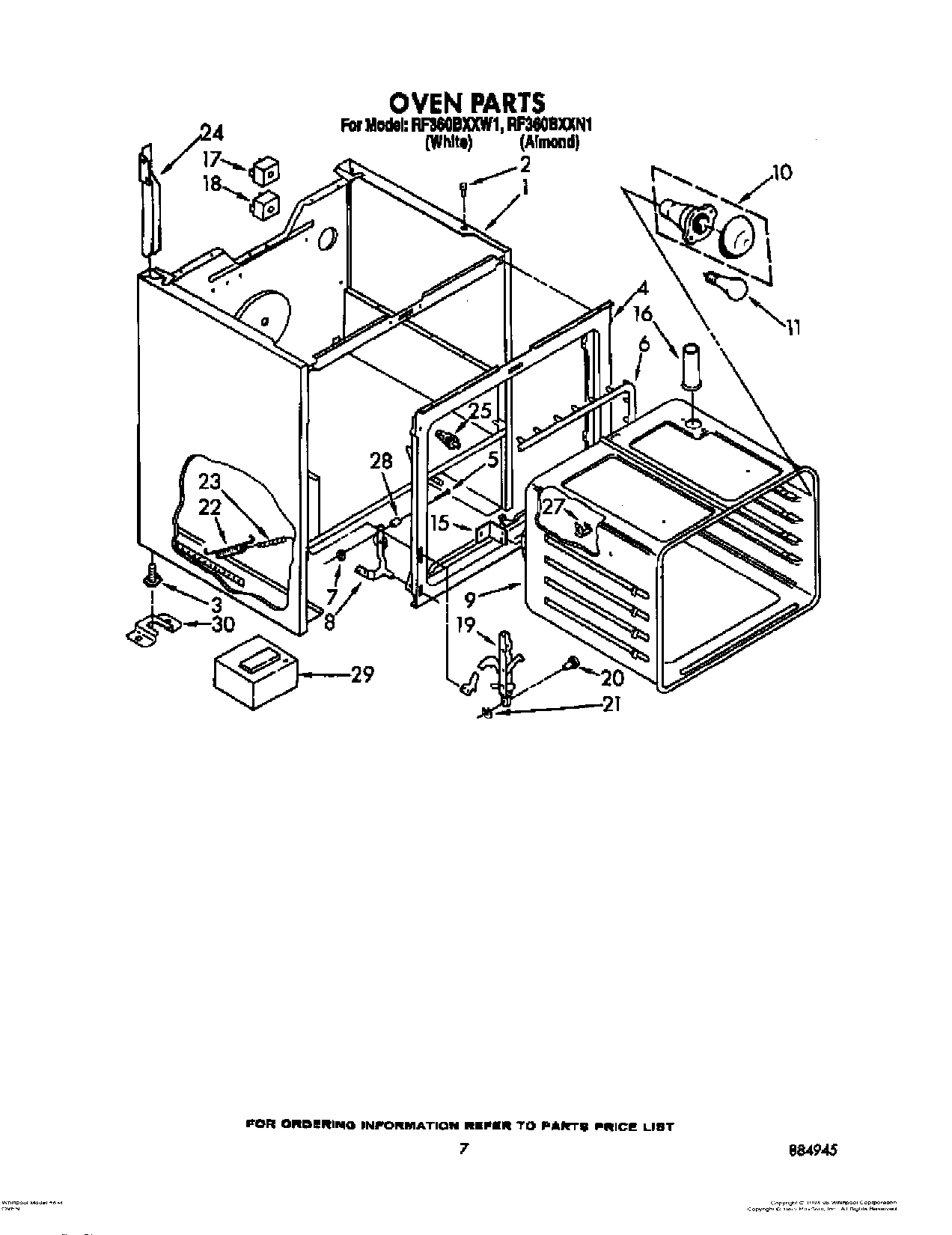

RF360BXXN1 06 – OVEN
Written by
in
RF360BXXN1 06 – OVEN
Products
Position
Product
1
Main Chassis (White)
1
Main Chassis (Almond)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Frame, Front
4
Screw (Top)
5
Pin, Hinge Ear (2)
6
Seal, Door
7
Pushnut (2)
8
Hinge (R.H.)
8
Hinge (L.H.)
9
Screw (3)
9
Oven (30“ Pyro)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
15
Bracket, Oven (Mounting)
16
Screw, 10A x 1/2 (2) (Black)
16
Vent, Oven
17
Sw
18
WPL 314215
18
Switch, Bake
19
Channel, Arm (2)
20
WP307986 Whirlpool Hinge Pin
21
Retainer Ring (2)
22
Spring, Oven Door (2)
23
WP308125 Whirlpool Microwave Range/Cooktop Anchor
24
Wire Cover
24
Wire Cover-Controls (Right)
24
SCREW
25
Switch, Door
27
98005642 Whirlpool Clip
28
Snubber, Door (2)
29
Block, Balance
29
340184 Whirlpool Screw
30
Anchor, Plastic
30
Screw
30
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
←
