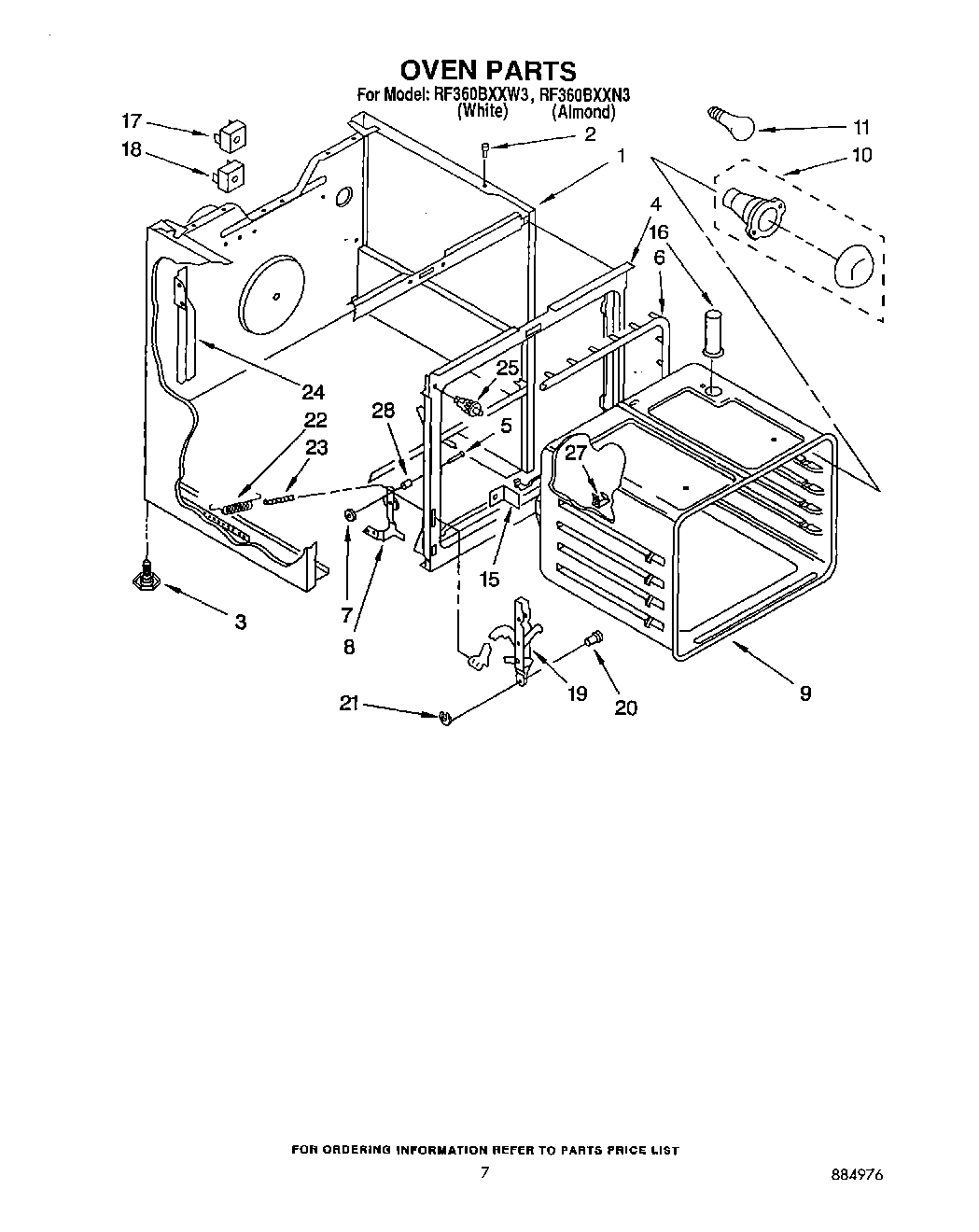

RF360BXXN3 06 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Screw (Top)
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Screw (3)
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	9755804 Whirlpool Oven Vent Tube
17	Sw
18	WPL 314215
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	SCREW
24	Wire Cover-Controls (Right)
25	Switch, Door
27	98005642 Whirlpool Clip
28	Snubber, Door (2)
