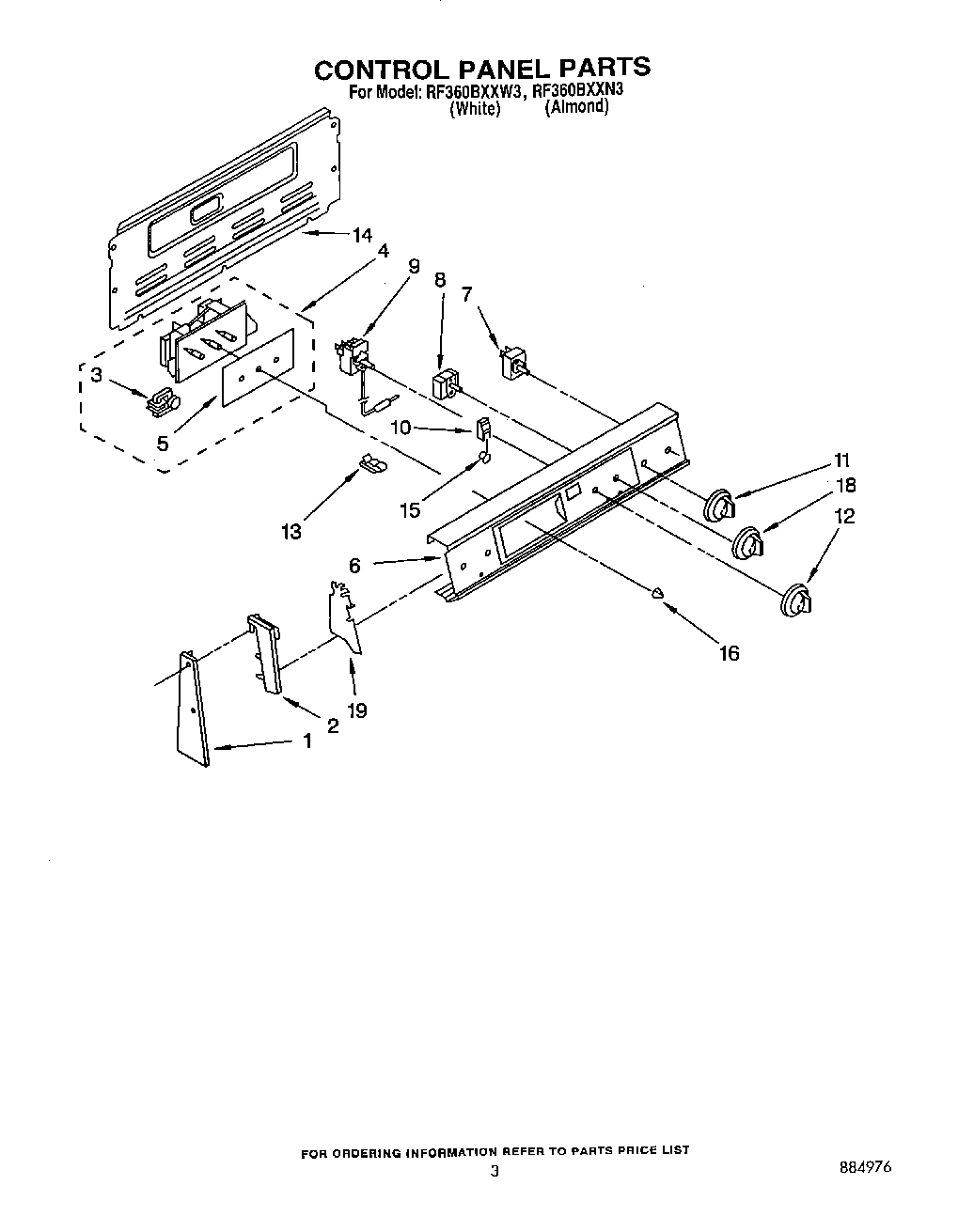

RF360BXXW3 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2(End Cap, L.H.) (White/Almond/Gold)
2End Cap, R.H. (White/Almond/Gold)
2Screw,
3Motor, Timer
4Timer, Clock
5Glass, Clock
6Control Panel
7WP3149400 Whirlpool Oven Infinite Switch
7WP486579 Whirlpool Air Conditioner Screw
7WP3148952 Whirlpool Oven Infinite Switch
8Switch, Selector
9WP313808 Whirlpool Screw
9Thermostat, Oven
10Light, Indicator (250V)
10Light, Indicator (Surface Unit On)
11WP3149983 Whirlpool Knob
12Knob, Oven Temp.
13Clip, Tube
14Harness-Conduit Asm.
14SCREW
15Lens, Amber
16WP3169181 Whirlpool Knob
18Knob, Selector
19Shield (2)
19WP965173 Whirlpool Dishwasher Screw
