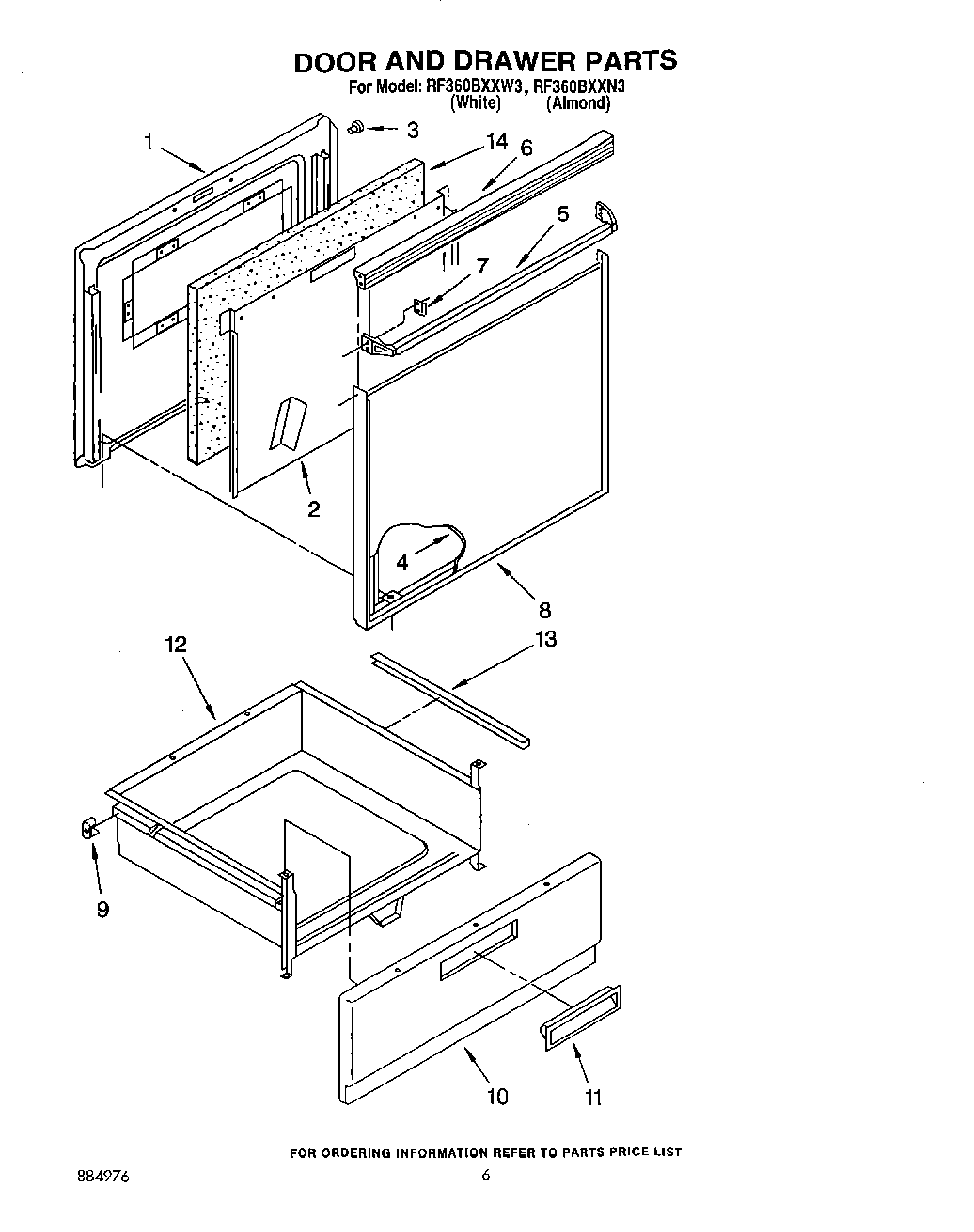

RF360BXXW3 05 – DOOR AND DRAWER
Written by
in
RF360BXXW3 05 – DOOR AND DRAWER
Products
Position
Product
1
Liner, Oven Door
1
Screw, 10A x 1/2 (2) (Black)
2
Retainer, Insulation
2
Screw
3
Bumper (4)
4
Panel, Door (Black Glass)
5
Handle, Oven Door
6
Top, Door (Black Model)
7
Clip, Mtg (2)
8
Back Splash (Screw (4) 10AB x 1/2“)
8
Frame, Door
8
WP355515 Whirlpool Screw
9
Glide, Rear (2)
10
Panel, Drawer (Almond)
10
Panel, Drawer (White)
10
WP488787 Whirlpool Refrigerator Screw
11
Handle, Snap-In (White)
11
Handle, Snap-In (Almond)
12
Drawer, Utility
13
Protector, Drawer (2)
14
Insulation, Door
←
