RF360BXYN2 04 – UNIT, OPTIONAL

RF360BXYN2 04 – UNIT, OPTIONAL

Written by

in

RF360BXYN2 04 – UNIT, OPTIONAL

Products

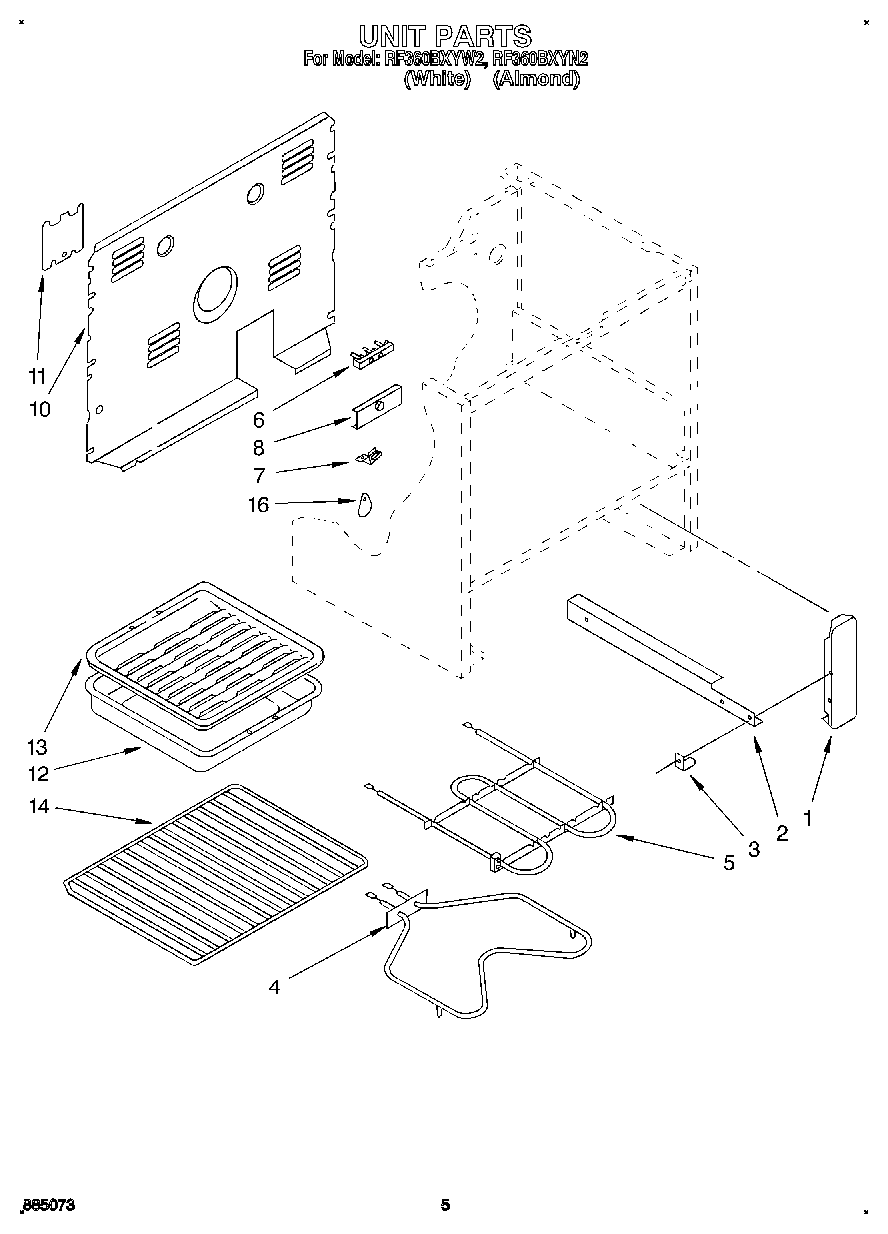

Position	Product
	WPL LIT677973
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Unit, Broil (208V)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
16	Wire (14 Ga. 150 c Green)
16	350930 Whirlpool White Spray Paint
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (12 Ga. 150 c Black)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	Grease
16	WPL 311982
16	1
16	8212471 Whirlpool Oven Paint
16	Leveler (Thinner) (2oz.)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	Wire, 25“ Roll (White 14 GA.)
16	Screw (2)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350956 Whirlpool Spray Assembly
