RF360EXPW0 03 – CONTROL PANEL
Written by
in

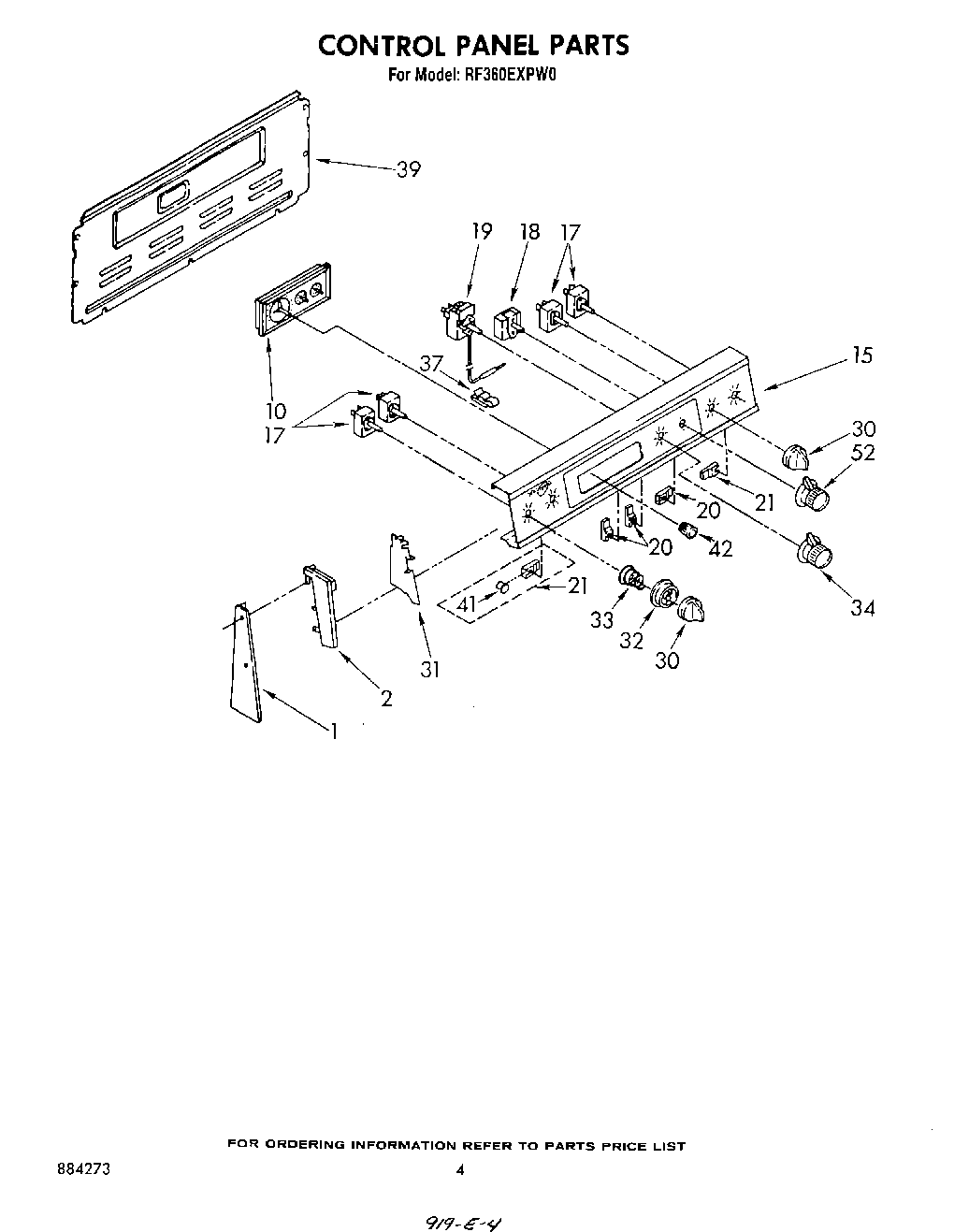

RF360EXPW0 03 – CONTROL PANEL
Products
Position
Product
1
Screw 10-32×1“
1
WP3390631 Whirlpool Screw
1
Screw 10-32×7/16“
2
End Cap R.H.
2
Screw,
2
End Cap L.H.
10
Clock, Complete (Includes 16, 17, 18 & 23)
15
Washer
15
Panel, Control (White)
17
W10900107 Whirlpool Oven Surface Element Switch
18
Switch, Selector
18
WPL 314215
19
Thermostat, Oven Pyro
19
WP313808 Whirlpool Screw
20
Light, Indicator (250V)
21
Light, Indicator (Surface Unit (2))
30
WP307458 Whirlpool Knob
31
WP965173 Whirlpool Dishwasher Screw
31
Shield (2)
32
W11194997 Whirlpool Knob Bezel
33
Spring, Bezel (4)
34
Knob, Thermostat
34
Screw
37
Clip, Tube
39
Harness-Conduit Asm.
39
SCREW
41
Lens, Amber
42
Knob, Timer (3)
52
Knob, Selector
52
WP688805 Whirlpool Spring Clip
←
