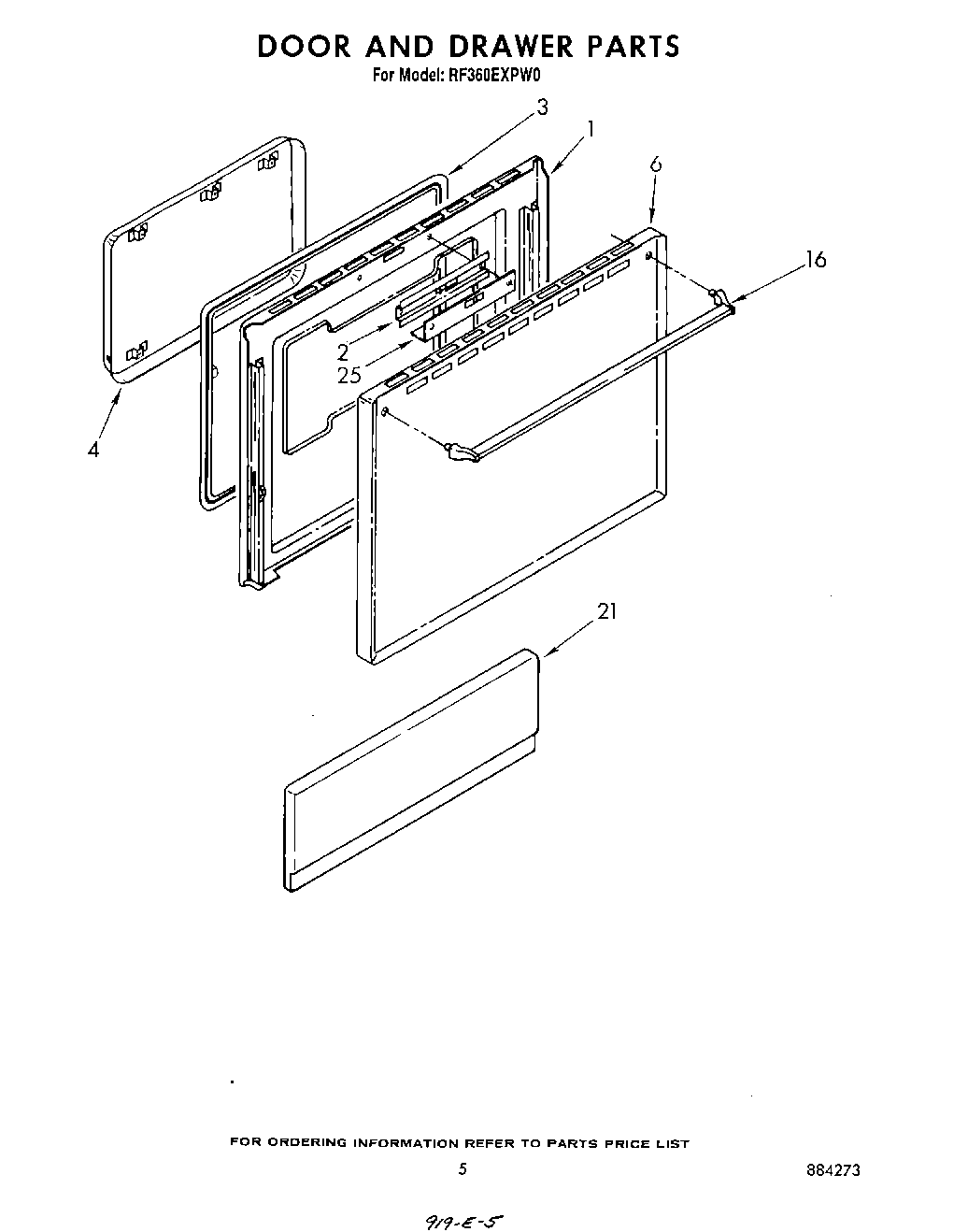

RF360EXPW0 04 – DOOR AND DRAWER

Written by

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
1	Screw (3)
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
6	Panel, Oven Door (White)
16	WP308499 Whirlpool Nut
16	Handle, Door
21	Panel Drawer (White)
25	Screw
25	Shield, Insulation
