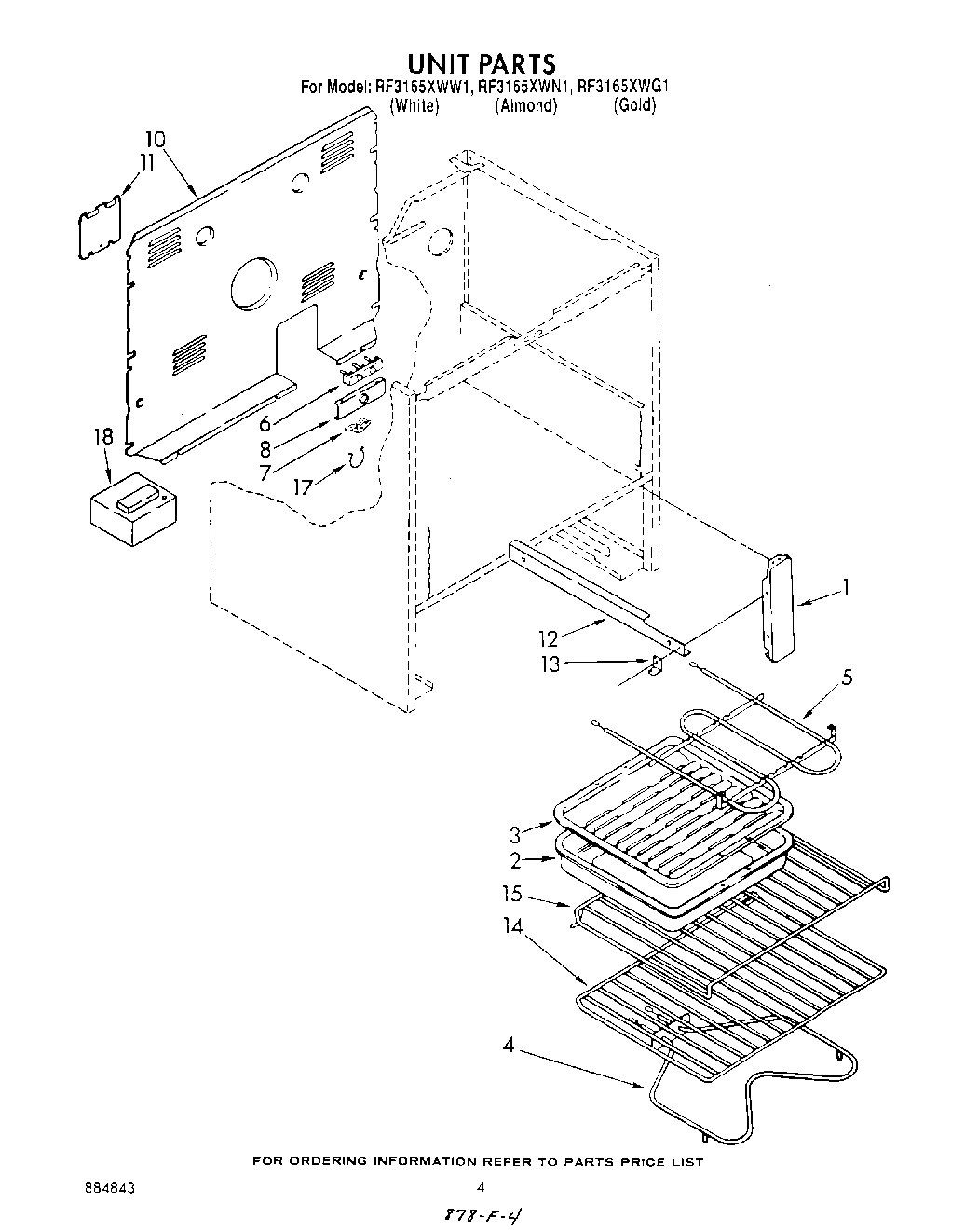

RF3615XWG1 04 – UNIT , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3149507
	WPL 312318
	WPL LIT3149923
	WPL LIT313053
	WPL LIT884843
	WPL LIT3148614
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
12	Rail R.H. (Includes Illus. 3)
12	Rail L.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
15	WPL 308172
17	16515 Whirlpool Clip
18	Wire (14 Ga. 150 c Orange)
18	Grease
18	Wire (14 Ga. 150 c Yellow)
18	Wire (12 Ga. 150 c Black)
18	Block, Balance
18	350930 Whirlpool White Spray Paint
18	340184 Whirlpool Screw
18	Rotisserie Kit
18	18 Ga. 80~c Rating (Red)
18	Wire (14 Ga. 200 c Brown)
18	1
18	Enamel, Coffee (1 Qt. Uncut)
18	Enamel, New Avocado (1 Qt. Uncut)
18	Leveler (Thinner) (2oz.)
18	8212471 Whirlpool Oven Paint
18	Wire (14 Ga. 150 c Green)
18	WPL 72112
18	Platinum (Uncut)
18	Enamal, Toast (1 Qt. Uncut)
18	Paint, Spray (13 Oz.) (Platinum)
18	Toast
18	Golden Harvest (Uncut)
18	Golden Harvest
18	72113 Whirlpool Touch-Up Paint
18	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18	Almond (Uncut)
18	WP72107 Whirlpool Touchup
18	799344 Whirlpool Refrigerator Paint
18	72017 Whirlpool Appliance Touch-Up Paint White
18	350942 Whirlpool Spray Paint
18	511873 Whirlpool Refrigerator Paint
18	WPL 799832
18	Wire (14 Ga. 150 c Brown)
18	Wire (14 Ga. 150 c Blue)
18	242831 Whirlpool Oven Wire
18	Paint, Spray 13 Oz. (Avocado)
18	paint, spray 13 oz. (coffee)
18	Paint, Touch-Up 1/2 Oz. (Coffee)
18	72109 Whirlpool Dacor Avocado Touch-Up Paint
18	285006 Whirlpool Spray
18	Wire, 25“ Roll (White 14 GA.)
18	Wire, 25` Roll (Red 14 Ga.)
18	Wire, 25` Roll (Black 14 Ga.)
18	FOIL, ALUMINUM OVEN (18“ X 25 )
18	WPW10208653 Whirlpool Insulation
18	350956 Whirlpool Spray Assembly
