RF361BXDN0 03 – OVEN
Written by
in

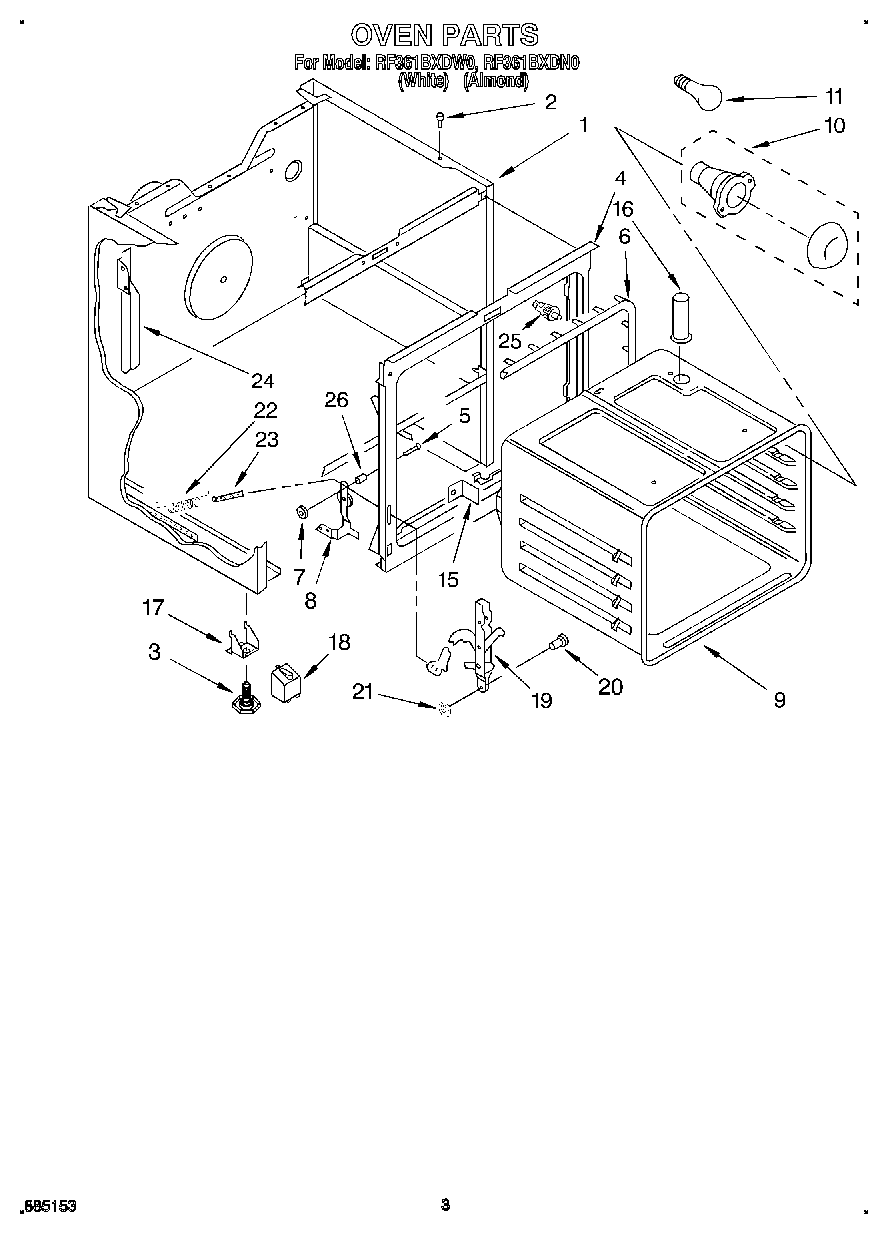

RF361BXDN0 03 – OVEN
Products
Position
Product
1
Main Chassis (White)
1
Main Chassis (Almond)
2
238614 Whirlpool Bumper Hinge
3
Leg Leveling (4)
4
Front Frame
5
Pin, Hinge Ear (2)
6
Seal, Door
7
Pushnut (2)
8
Hinge, R.H.
8
Hinge, L.H.
9
Screw (Top)
9
Oven (30“ Pyro)
9
Screw (3)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
15
Bracket, Oven (Mounting)
16
Screw, 10A x 1/2 (2) (Black)
16
9755804 Whirlpool Oven Vent Tube
17
Support, Foot (2)
18
Cover, Foot (2)
19
Channel, Arm (2)
20
WP307986 Whirlpool Hinge Pin
21
Retainer Ring (2)
22
Spring, Oven Door (2)
23
WP308125 Whirlpool Microwave Range/Cooktop Anchor
24
SCREW
24
Wire Cover-Controls (Right)
24
Wire Cover
25
Switch, Door
26
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26
Snubber, Door (2)
26
WPL 3169093
26
WPL 3169094
←
