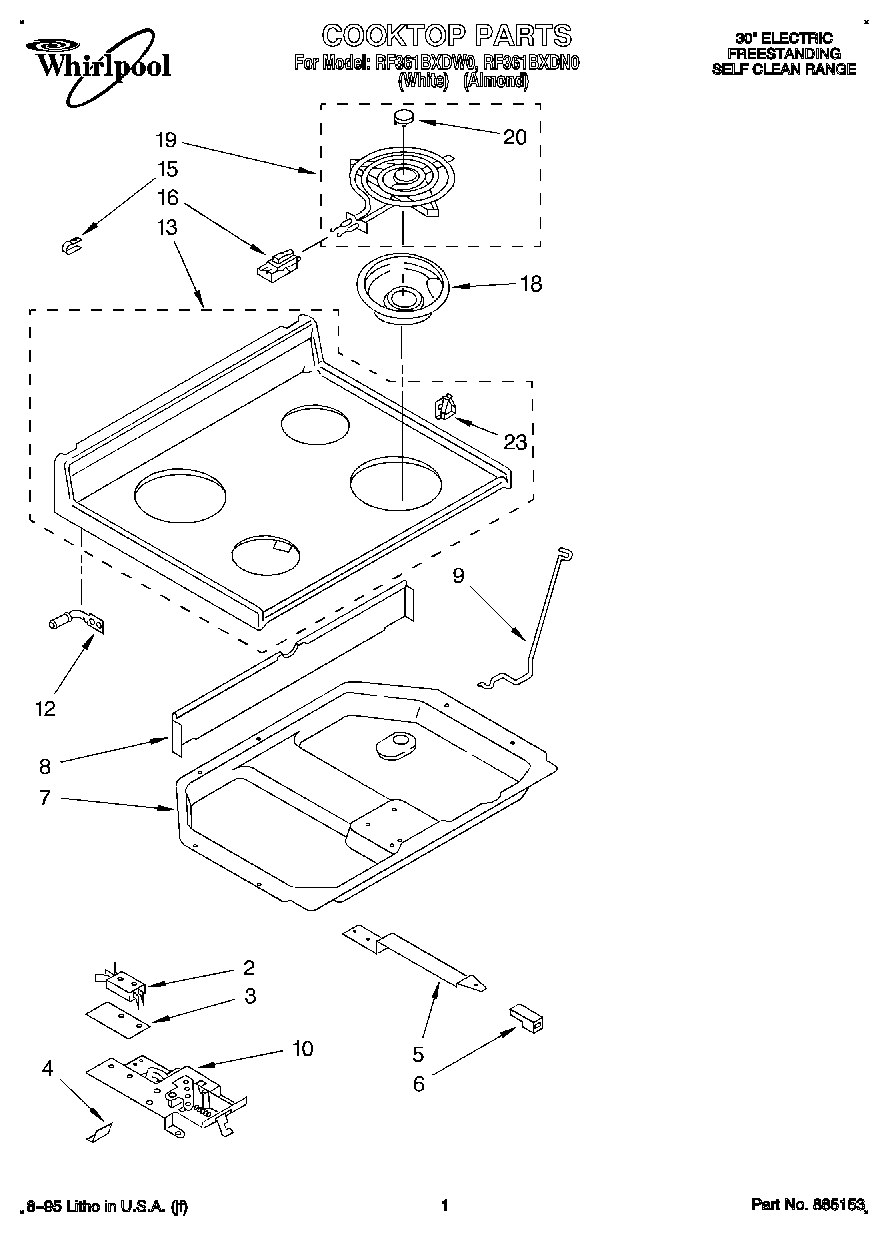

RF361BXDW0 01 – COOKTOP

Products

Position	Product
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
10	Latch Mechanism
12	Pin, Cooktop (2)
13	Cooktop (White)
13	Cooktop (Almond)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
23	814103 Whirlpool Clip
23	Nut (4)
23	WP487887 Whirlpool Refrigerator Screw
