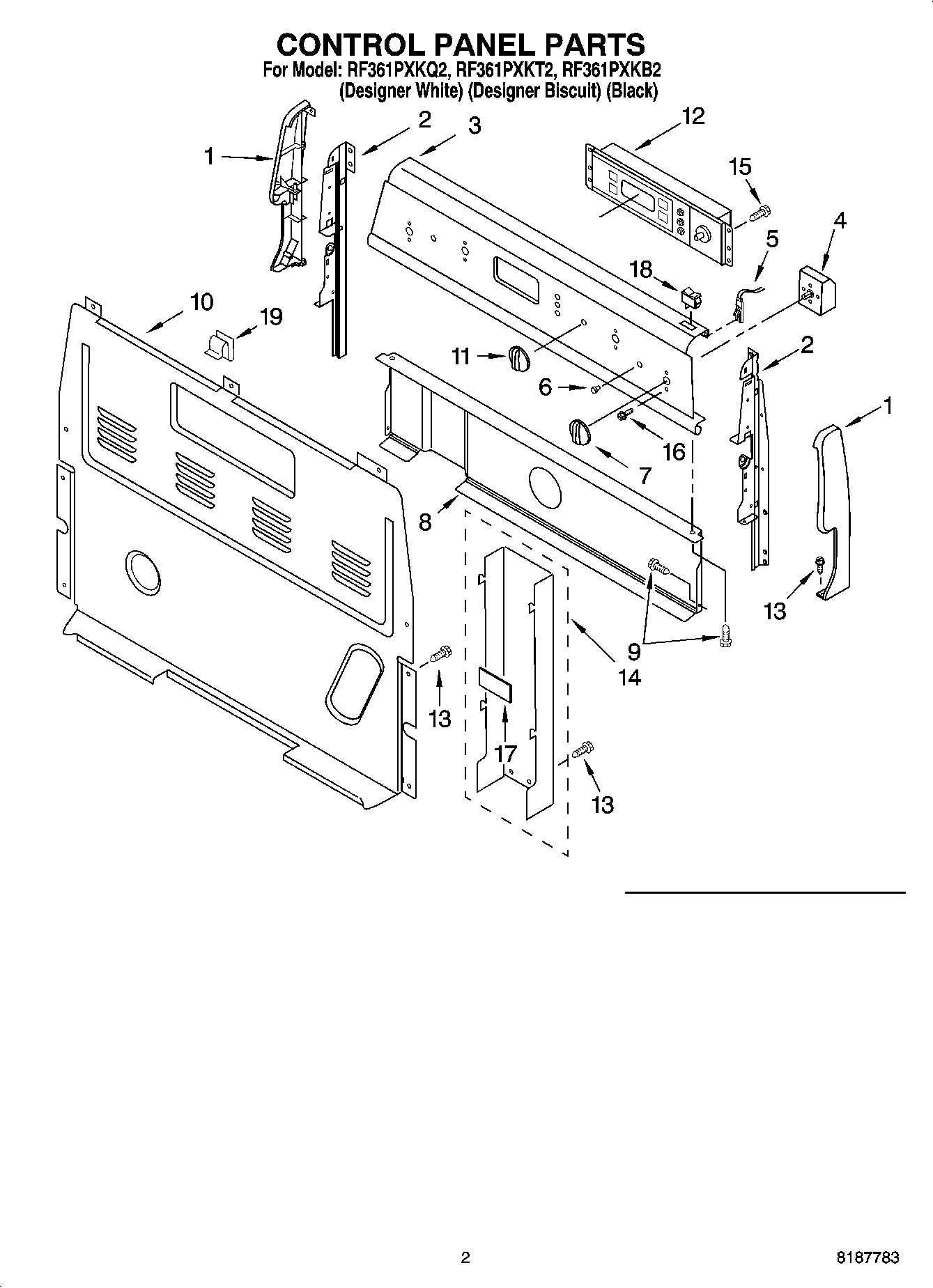

RF361PXKB2 02 – CONTROL PANEL PARTS

RF361PXKB2 02 – CONTROL PANEL PARTS

Written by

in

RF361PXKB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Right Hand)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob (Biscuit)
11Knob
11Knob, Control (White)
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
17Card, Insulation
183149360 Whirlpool Light Switch
18WP4314961 Whirlpool Lite Switch
18Switch, Rocker (Biscuit)
19WP8273564 Whirlpool Clip
