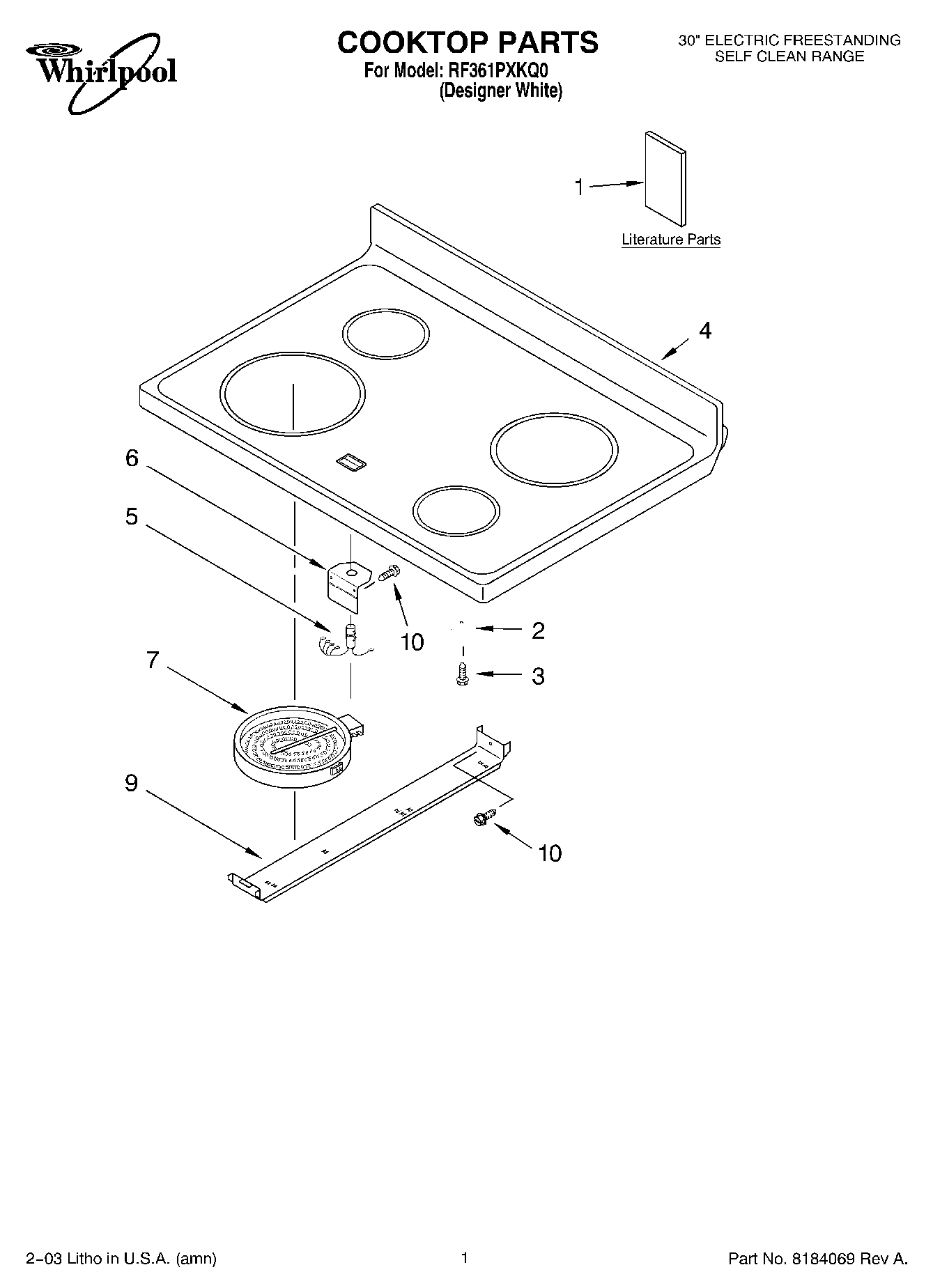

RF361PXKQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Literature Parts (Guide, Use & Care)
1Literature (Instruction, Installation)
1Literature (Installation, Instructions (Template))
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White/White Glass)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823699 Whirlpool Right Front Surface Element
7WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
9Bracket, Element
10WP3196175 Whirlpool Screw
