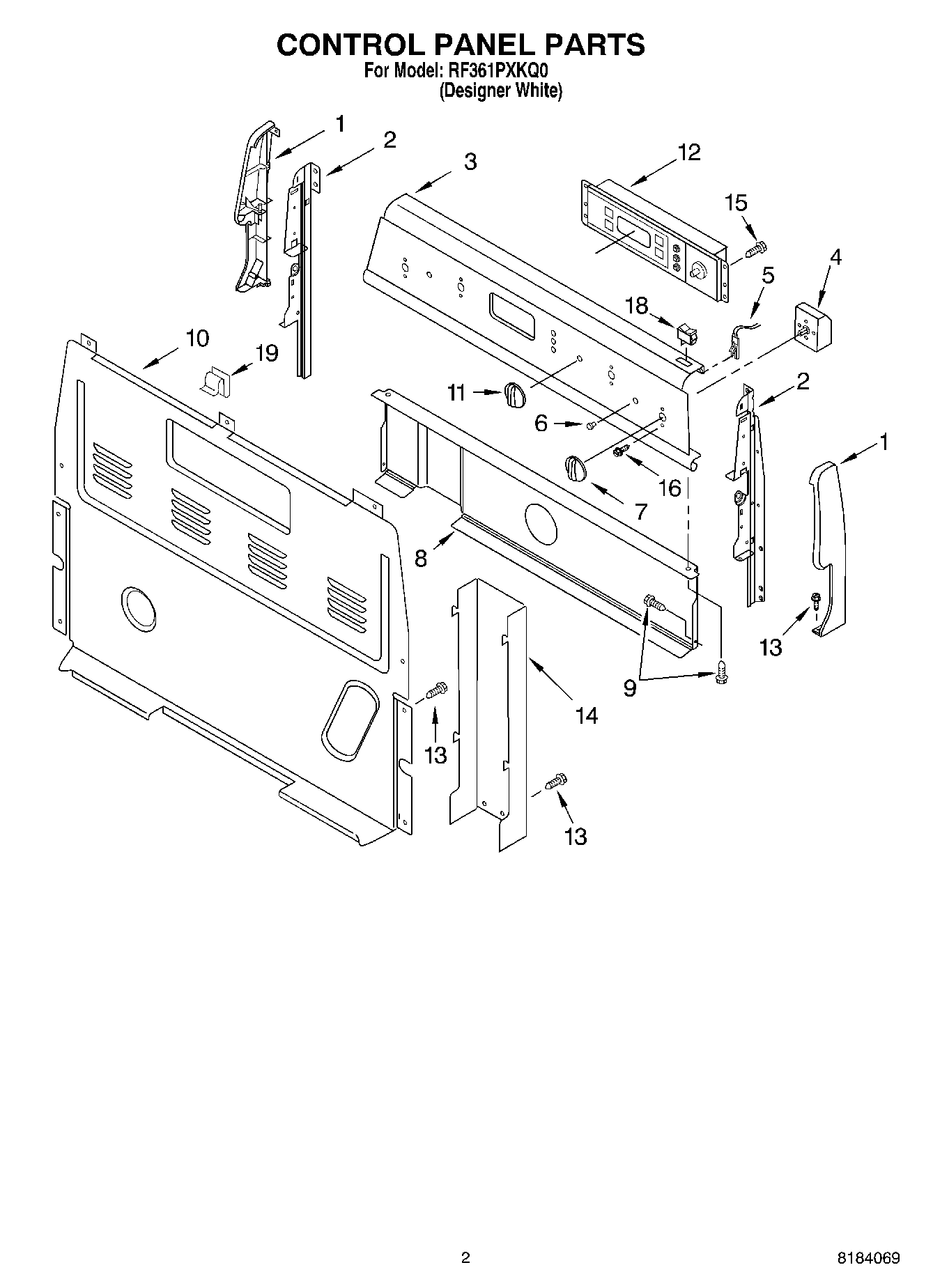

RF361PXKQ0 02 – CONTROL PANEL PARTS

RF361PXKQ0 02 – CONTROL PANEL PARTS

Written by

in

RF361PXKQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Control (White)
12Control-Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
183149360 Whirlpool Light Switch
19WP8273564 Whirlpool Clip
