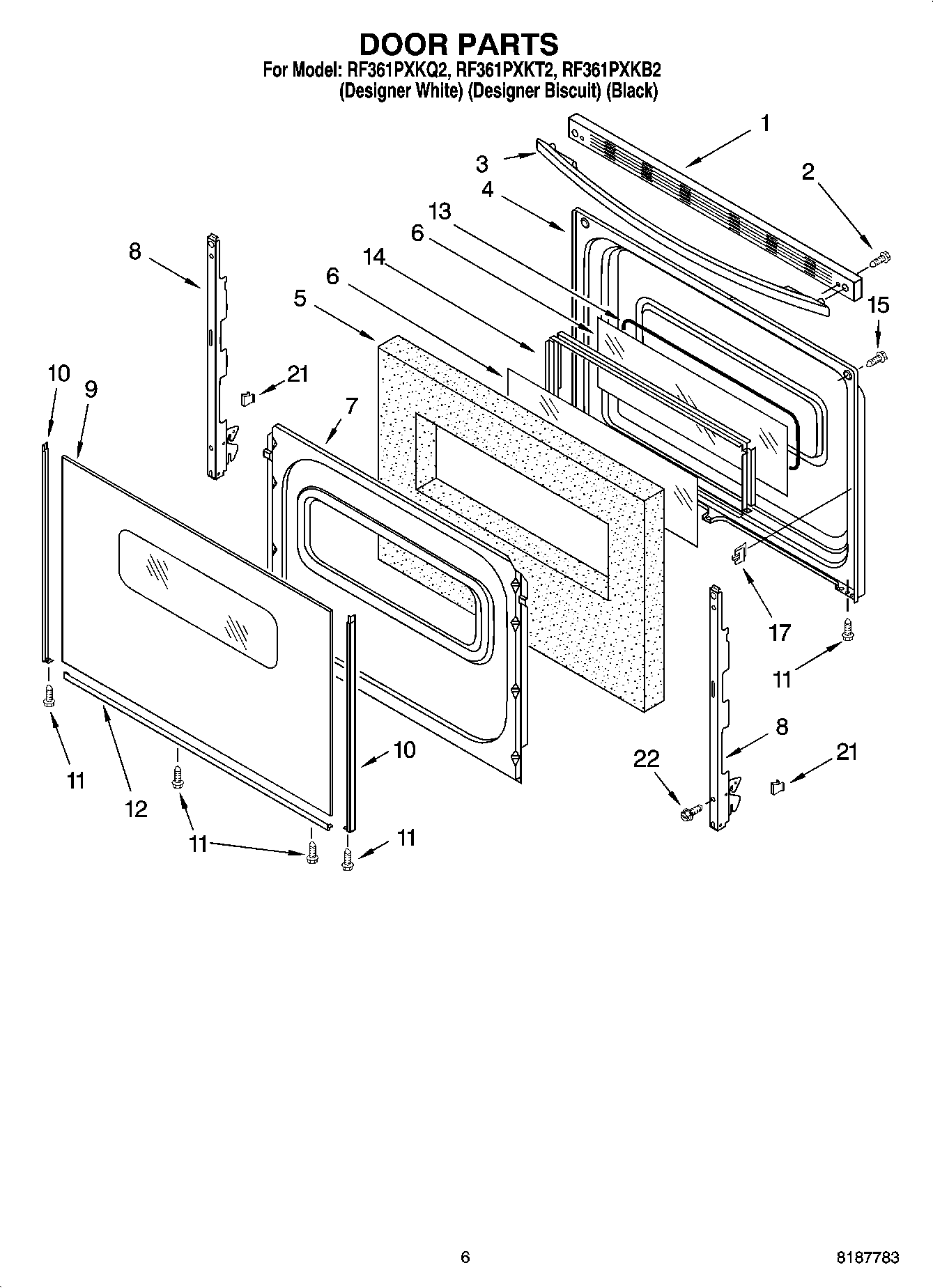

RF361PXKQ2 05 – DOOR PARTS, MISCELLANEOUS PARTSadmin2025-04-26T12:46:06+00:00RF361PXKQ2 05 – DOOR PARTS, MISCELLANEOUS PARTS
Products
| Position | Product |
|---|
| WPL ARI160644A |
| 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| Grease |
| 3196696 Whirlpool Clip |
| 3184020 Whirlpool Oven Wire |
| 8212471 Whirlpool Oven Paint |
| 1 |
| Wire (14 Ga. 200 c Brown) |
| 18 Ga. 80~c Rating (Red) |
| Wire (12 Ga. 150 c Black) |
| Wire (14 Ga. 150 c Yellow) |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| WP3196154 Whirlpool Screw Assembly |
| WPL 8316781 |
| WPL 8524132 |
| WPL ARI160643A |
| WPL ARI160642A |
| WPL ARI160641A |
| WPL ARI160640A |
| WPL ARI160639A |
| WPL ARI160646A |
| Harness, Wire (Oven Light) |
| WPL 8523718 |
| WPL 4454241 |
| WPL 8524114 |
| WPL 8524089 |
| WPL 8524088 |
| WPL ARI160645A |
| Wire (14 Ga. 150 c Blue) |
| 242831 Whirlpool Oven Wire |
| 511873 Whirlpool Refrigerator Paint |
| 814381 Whirlpool Pin |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| WPL 799832 |
| 285006 Whirlpool Spray |
| Wire, 25`` Roll (White 14 GA.) |
| WPW10208653 Whirlpool Insulation |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| Wire, 25` Roll (Red 14 Ga.) |
| 350942 Whirlpool Spray Paint |
| Almond (Uncut) |
| 3400964 Whirlpool Oven Clip |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Clip, Ground Wire |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| 350930 Whirlpool White Spray Paint |
| 1 | Trim, Top (Black) |
| 1 | Trim, Top (Biscuit) |
| 1 | WPW10016370 Whirlpool Door Trim |
| 2 | WP3196164 Whirlpool Screw |
| 3 | WPW10202217 Whirlpool Door Handle |
| 3 | Handle, Door (Biscuit) |
| 3 | WPW10202216 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | WPW10278991 Whirlpool Insulation |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | 9761499 Whirlpool Oven Retainer |
| 8 | WP8053807 Whirlpool Oven Door Hinge |
| 9 | Glass, Door (Biscuit) |
| 9 | WP9762476 Whirlpool Door Glass |
| 9 | WP9762477 Whirlpool Glass Door |
| 10 | WP8523166 Whirlpool Door Trim |
| 10 | WP8523172 Whirlpool Left Door Trim |
| 10 | WP8523173 Whirlpool Door Trim |
| 10 | W10761018 Whirlpool Dishwasher Left Door Trim |
| 10 | W10761014 Whirlpool Right Door Trim |
| 10 | WP8523167 Whirlpool Door Trim Assembly |
| 11 | W10491985 Whirlpool Screw |
| 12 | WP8523178 Whirlpool Door Trim |
| 12 | WP8523175 Whirlpool Door Trim Assembly |
| 12 | WP8523177 Whirlpool Door Trim Assembly |
| 13 | 8522415 Whirlpool Oven Wind Gasket |
| 14 | Frame, Glass |
| 15 | WP179051 Whirlpool Screw |
| 17 | Clip, Glass (4) |
| 21 | WP3196925 Whirlpool Clip Assembly |
| 22 | WP3196175 Whirlpool Screw |
