RF361PXKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

RF361PXKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

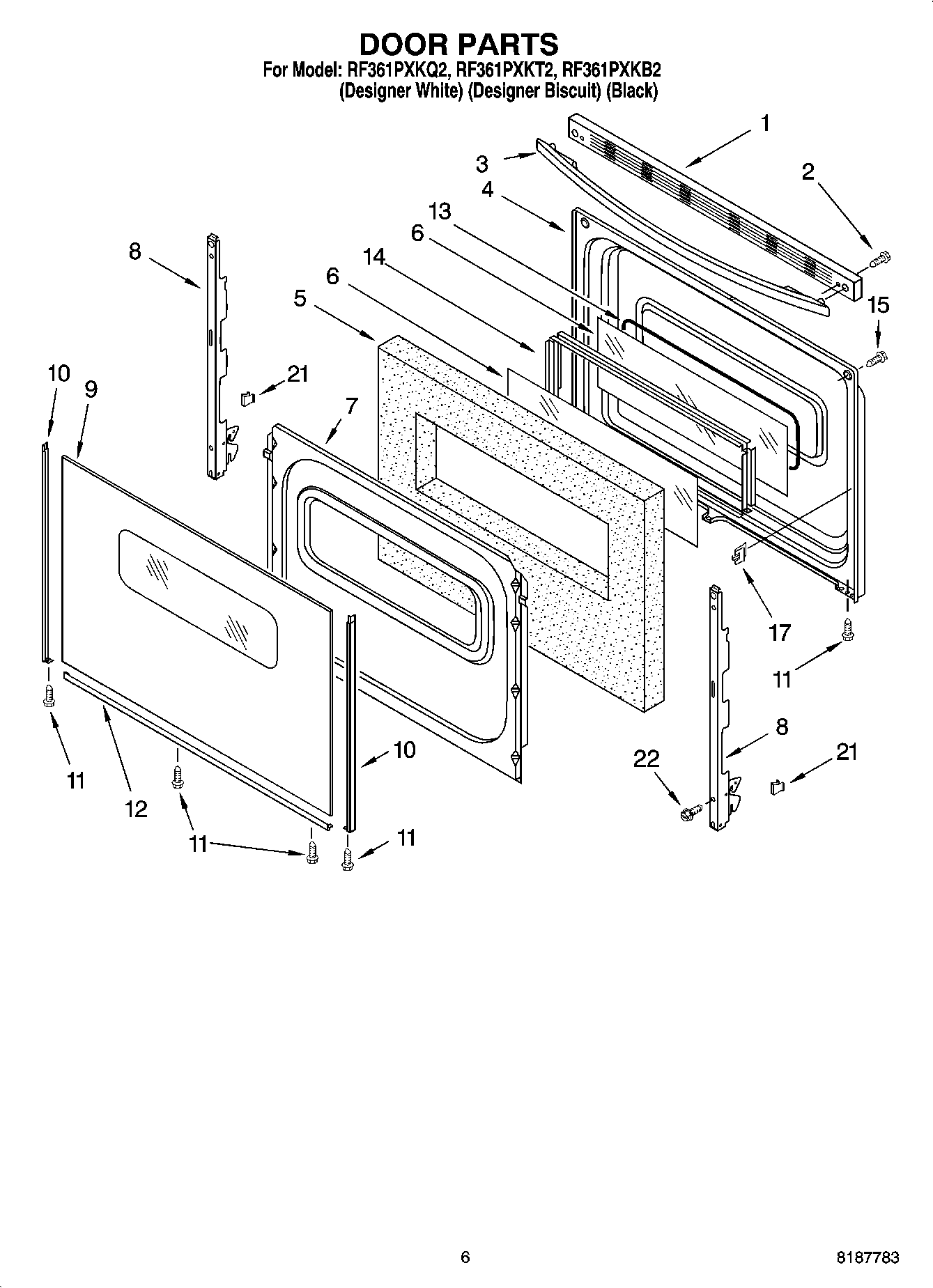

RF361PXKT2 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI160657A
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3196154 Whirlpool Screw Assembly
	WPL 8316781
	WPL 8524132
	WPL ARI160656A
	WPL ARI160655A
	WPL ARI160654A
	WPL ARI160653A
	WPL ARI160652A
	WPL ARI160651A
	Harness, Wire (Oven Light)
	WPL 8523718
	WPL 4454241
	WPL 8524114
	WPL 8524089
	WPL 8524088
	WPL ARI160658A
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	511873 Whirlpool Refrigerator Paint
	814381 Whirlpool Pin
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL 799832
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	3400964 Whirlpool Oven Clip
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	Clip, Ground Wire
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350930 Whirlpool White Spray Paint
1	Trim, Top (Black)
1	Trim, Top (Biscuit)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	WP9758164 Whirlpool Door Glass
7	9761499 Whirlpool Oven Retainer
8	WP8053807 Whirlpool Oven Door Hinge
9	Glass, Door (Biscuit)
9	WP9762476 Whirlpool Door Glass
9	WP9762477 Whirlpool Glass Door
10	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
10	WP8523173 Whirlpool Door Trim
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
10	WP8523167 Whirlpool Door Trim Assembly
11	W10491985 Whirlpool Screw
12	WP8523178 Whirlpool Door Trim
12	WP8523175 Whirlpool Door Trim Assembly
12	WP8523177 Whirlpool Door Trim Assembly
13	8522415 Whirlpool Oven Wind Gasket
14	Frame, Glass
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
