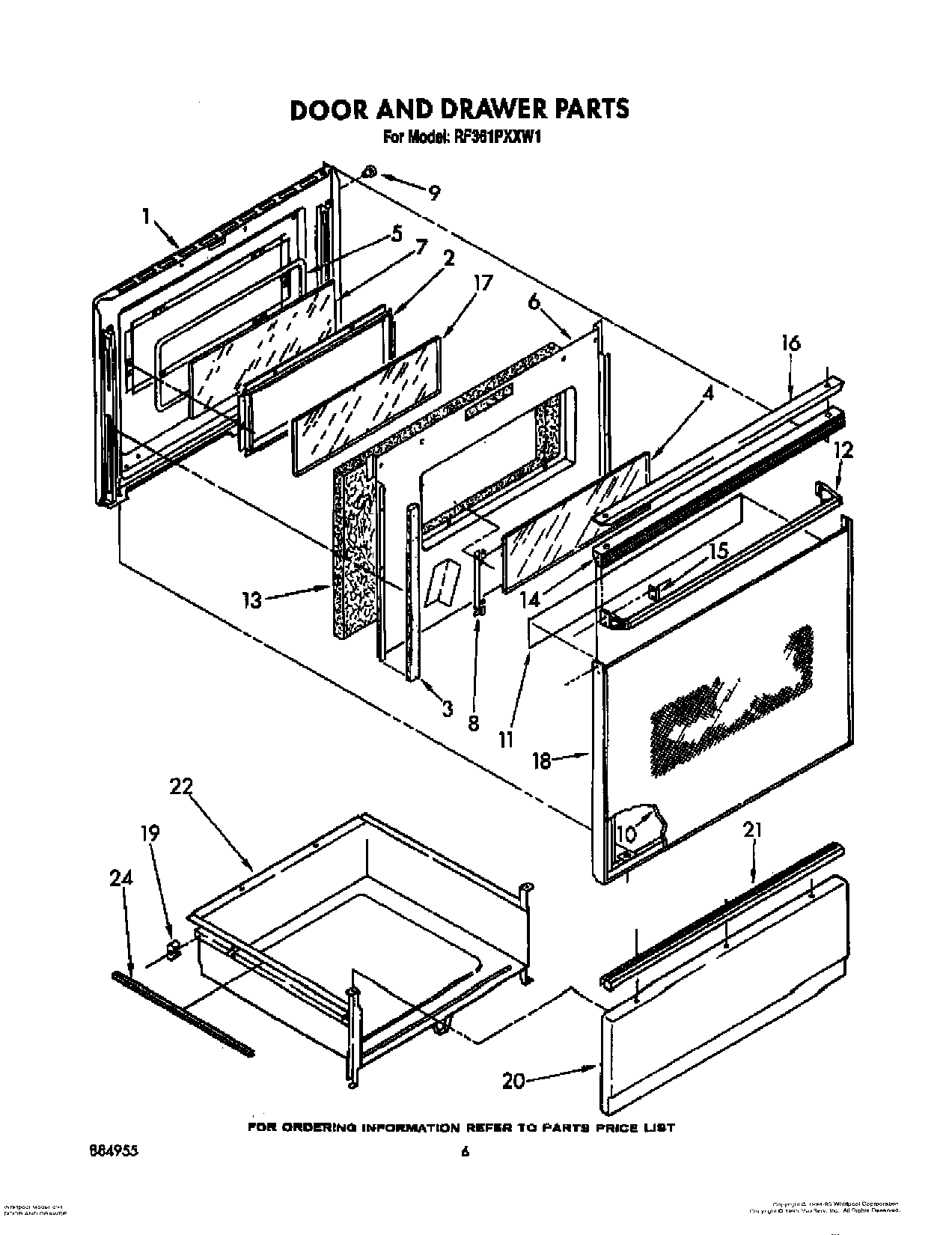

RF361PXXW1 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Screw
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
13	Insulation, Door
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Cap, Top
18	WP355515 Whirlpool Screw
18	Frame, Door
18	WP308685 Whirlpool Microwave Screw
19	Glide, Rear (2)
19	Screw, 10A x 1/2 (2) (Black)
20	Panel Drawer (White)
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Drawer, Utility
24	Protector, Drawer (2)
