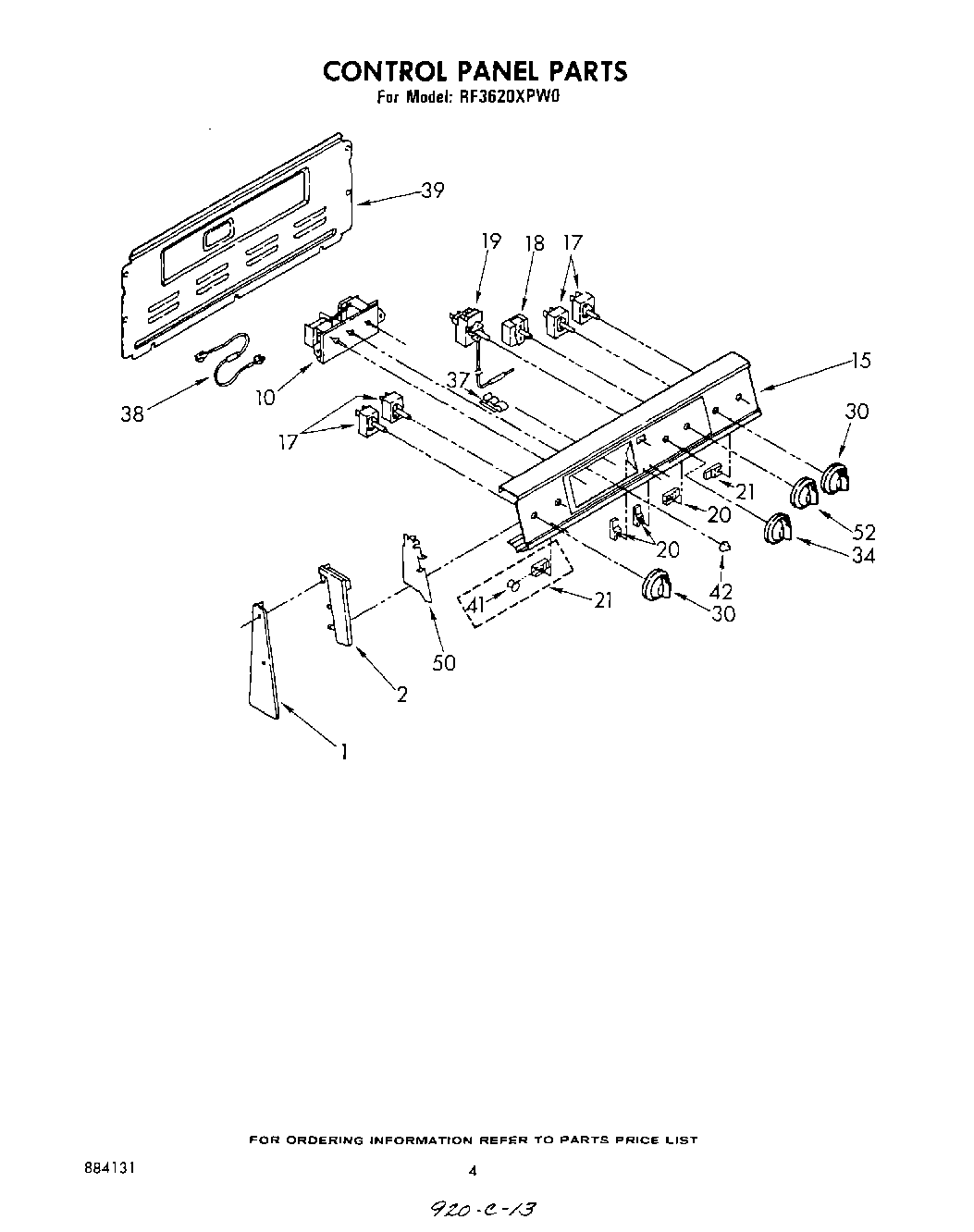

RF3620XPW0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Digital
15	Washer
15	Panel, Control
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (5 Position)
19	Thermostat, Oven Pyro
19	WP313808 Whirlpool Screw
20	Light, Indicator
21	Light, Indicator (Surface Unit (2))
30	Knob, Switch (4)
34	Knob, Control (4)
34	Screw
37	Clip, Tube
38	Resistor & Terminal Assembly
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	WP3169181 Whirlpool Knob
42	Spring (3)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	WP688805 Whirlpool Spring Clip
52	Knob, Control
