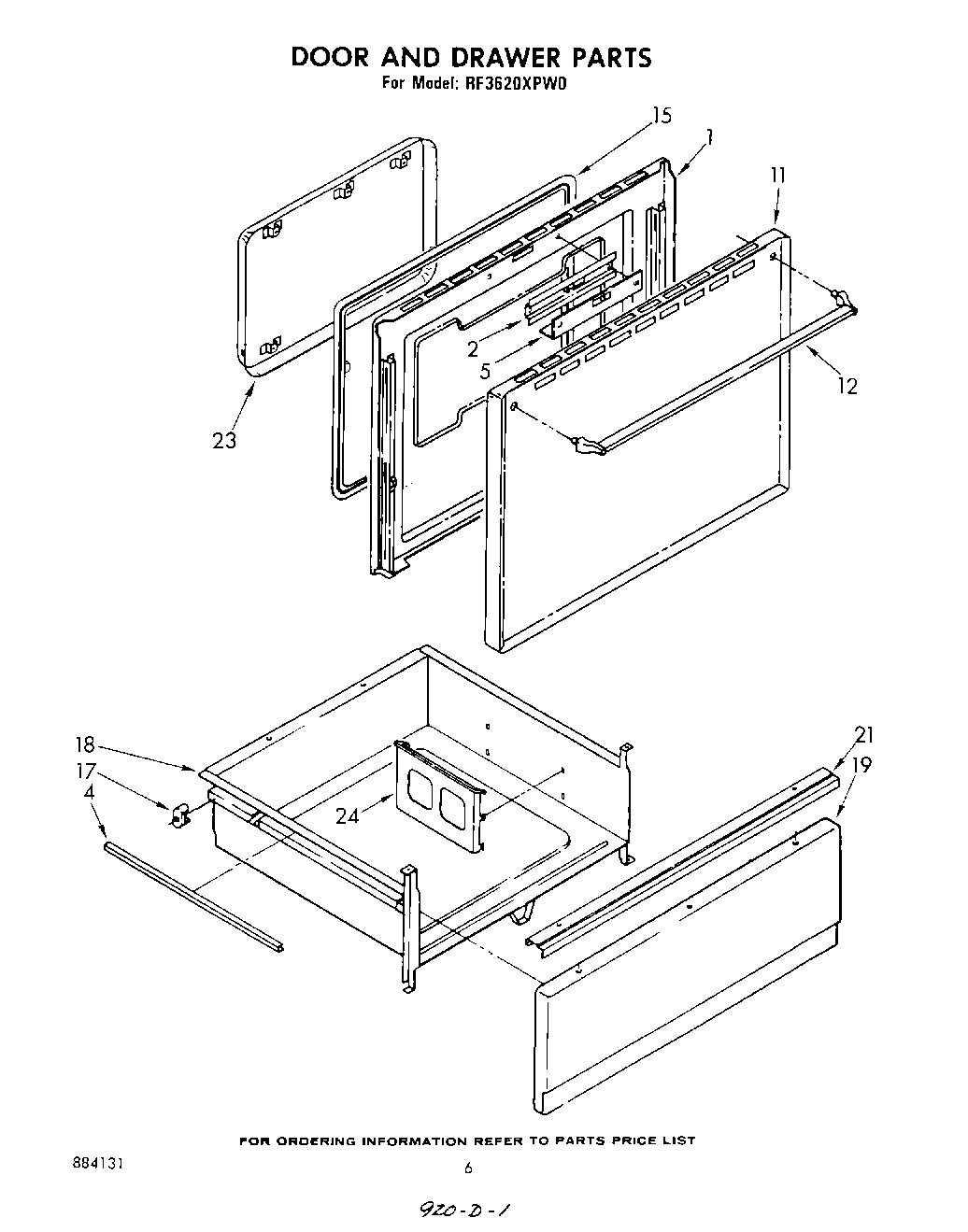

RF3620XPW0 05 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Channel, Latch
4	Protector, Drawer (2)
5	Shield, Insulation
5	Screw (2)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Platinum)
11	Panel, Oven Door (White)
11	Panel, Oven Door (Almond)
11	Panel, Door (Toast)
12	Handle, Door
12	WP308499 Whirlpool Nut
15	Seal, Fiberglass
17	Glide, Rear (2)
17	Screw, 10A x 1/2 (2) (Black)
18	Drawer, Utility
19	WP488787 Whirlpool Refrigerator Screw
19	Panel Drawer (White)
19	Panel, Drawer (Platinum)
19	Panel, Drawer (Toast)
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Almond)
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
23	Panel, Inner
24	Rack, Literature
