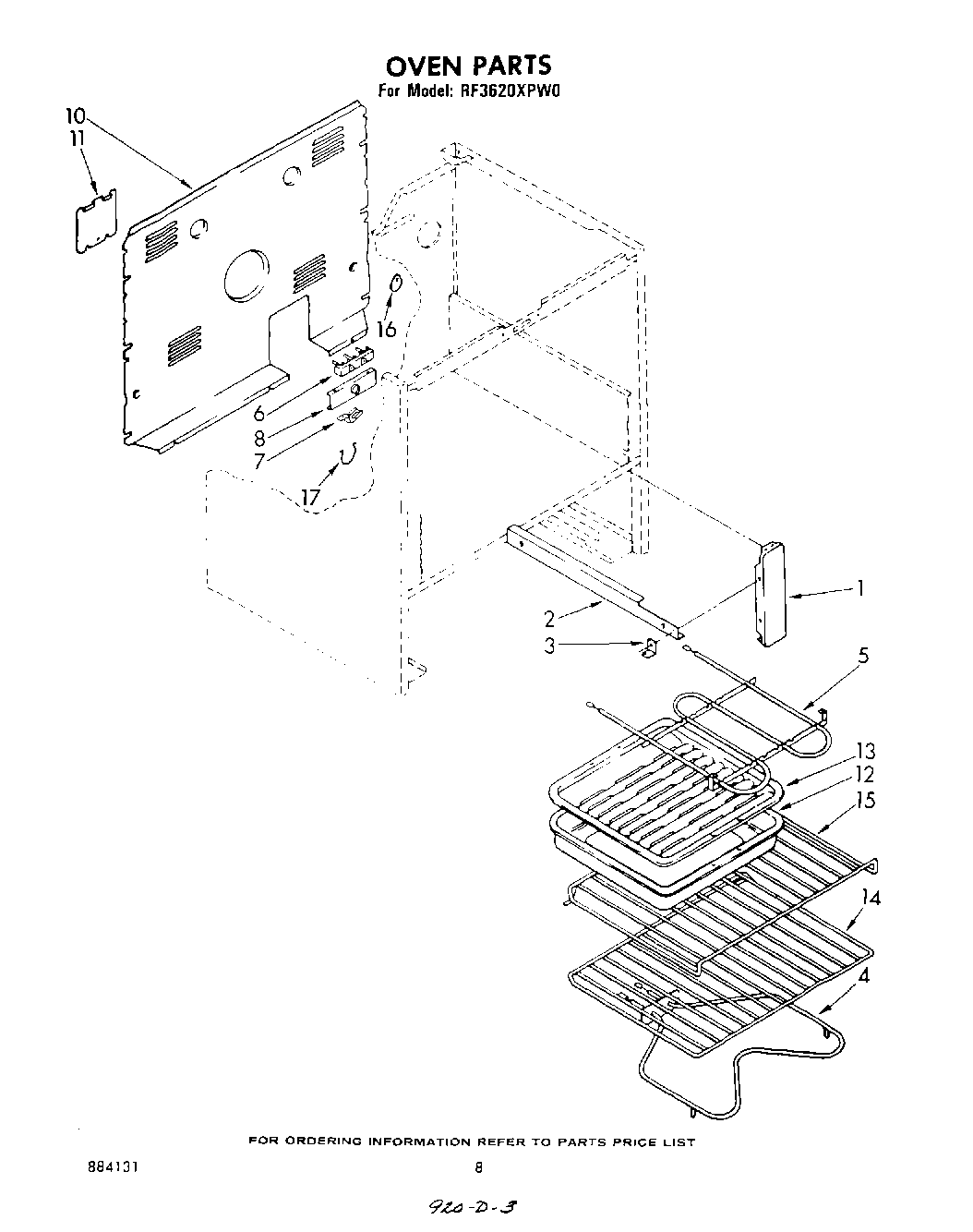

RF3620XPW0 06 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Products

Position	Product
	Unit, Broil (208V)
	WPL LIT313284
	WPL LIT313473
	WPL LIT884131
	511873 Whirlpool Refrigerator Paint
	WPL LIT313358
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	WP312309 Whirlpool Bake Element
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
16	Screw, 10A x 1/2 (2) (Black)
17	8212471 Whirlpool Oven Paint
17	Wire (14 Ga. 150 c Orange)
17	Rotisserie Kit (RCK 81)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	Golden Harvest
17	Grease
17	18 Ga. 80~c Rating (Red)
17	Leveler (Thinner) (2oz.)
17	1
17	Enamel, Coffee (1 Qt. Uncut)
17	Enamel, New Avocado (1 Qt. Uncut)
17	Wire (14 Ga. 200 c Brown)
17	Wire (14 Ga. 150 c Green)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	350942 Whirlpool Spray Paint
17	WPL 799832
17	WPW10208653 Whirlpool Insulation
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	350930 Whirlpool White Spray Paint
