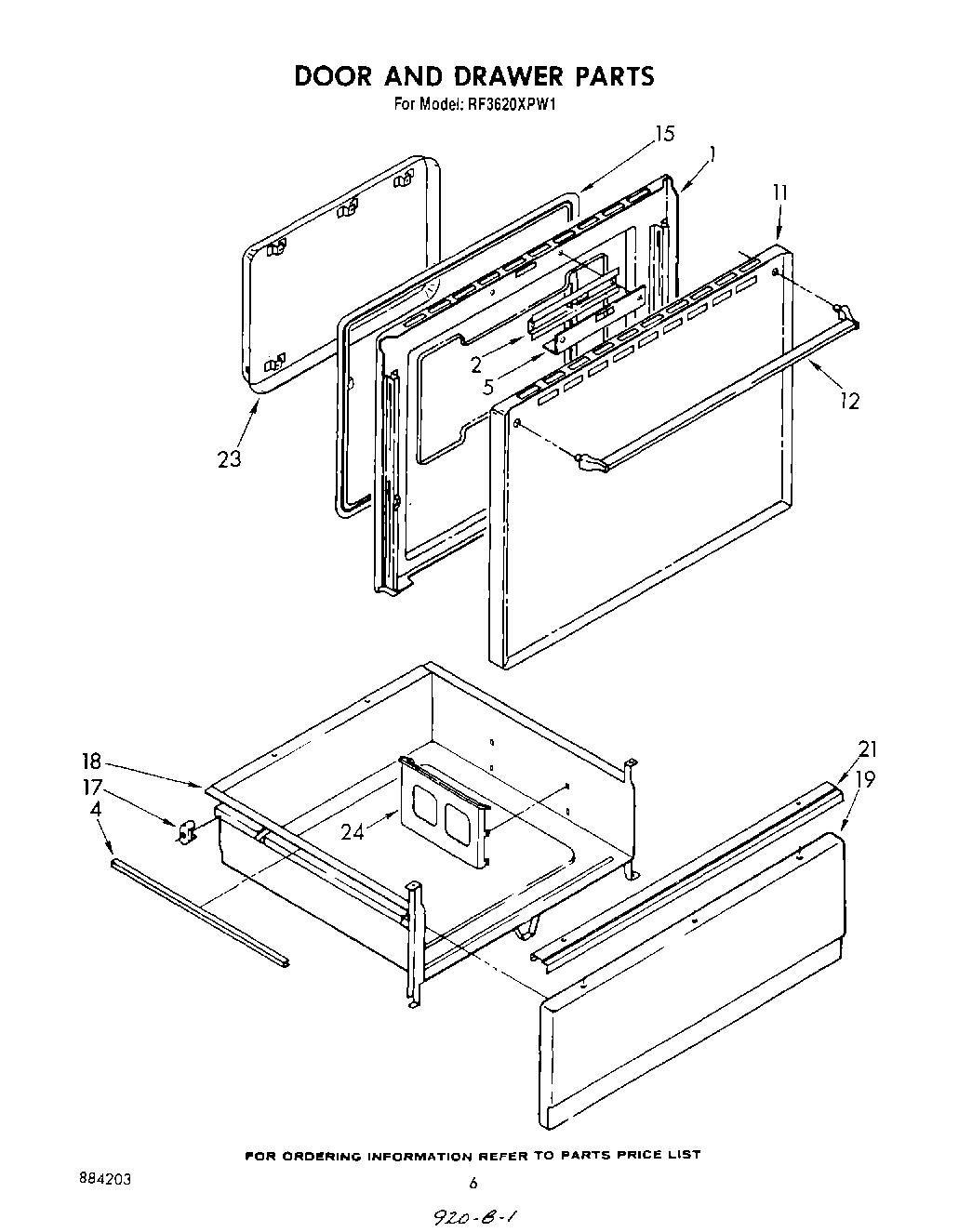

RF3620XPW1 05 – DOOR AND DRAWERadmin2025-04-26T11:37:16+00:00RF3620XPW1 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Channel, Latch |
| 4 | Protector, Drawer (2) |
| 5 | Shield, Insulation |
| 5 | Screw (2) |
| 11 | Panel, Door (Harvest Gold) |
| 11 | Panel, Door (Platinum) |
| 11 | Panel, Oven Door (White) |
| 11 | Panel, Oven Door (Almond) |
| 11 | Panel, Door (Toast) |
| 12 | Handle, Door |
| 12 | WP308499 Whirlpool Nut |
| 15 | Seal, Fiberglass |
| 17 | Glide, Rear (2) |
| 17 | Screw, 10A x 1/2 (2) (Black) |
| 18 | Drawer, Utility |
| 19 | WP488787 Whirlpool Refrigerator Screw |
| 19 | Panel Drawer (White) |
| 19 | Panel, Drawer (Platinum) |
| 19 | Panel, Drawer (Toast) |
| 19 | Panel Drawer (Harvest Gold) |
| 19 | Panel, Drawer (Almond) |
| 21 | Handle, Drawer |
| 21 | WP488627 Whirlpool Refrigerator Screw |
| 23 | Panel, Inner |
| 24 | Rack, Literature |
