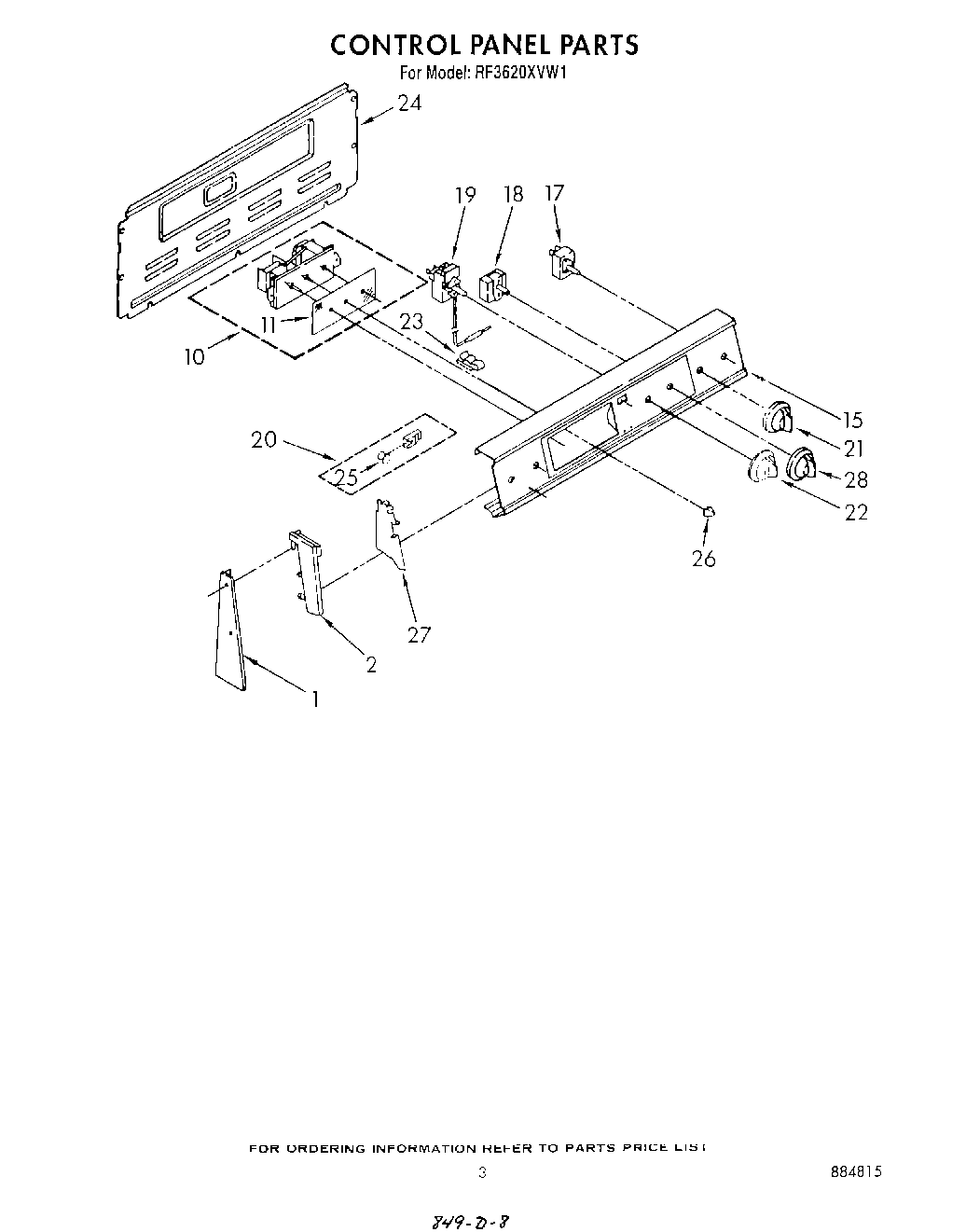

RF3620XVN1 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
10	Timer, Auto
11	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (Surface Unit (2))
20	Indicator Light (1)
20	Light, Indicator (250V)
21	WP3149983 Whirlpool Knob
22	Knob, Oven Temp.
23	Clip, Tube
24	SCREW
24	Harness-Conduit Asm.
25	Lens, Amber
26	WP3169181 Whirlpool Knob
26	Spring (3)
27	WP965173 Whirlpool Dishwasher Screw
27	Shield (2)
28	Knob, Selector
28	WP688805 Whirlpool Spring Clip
