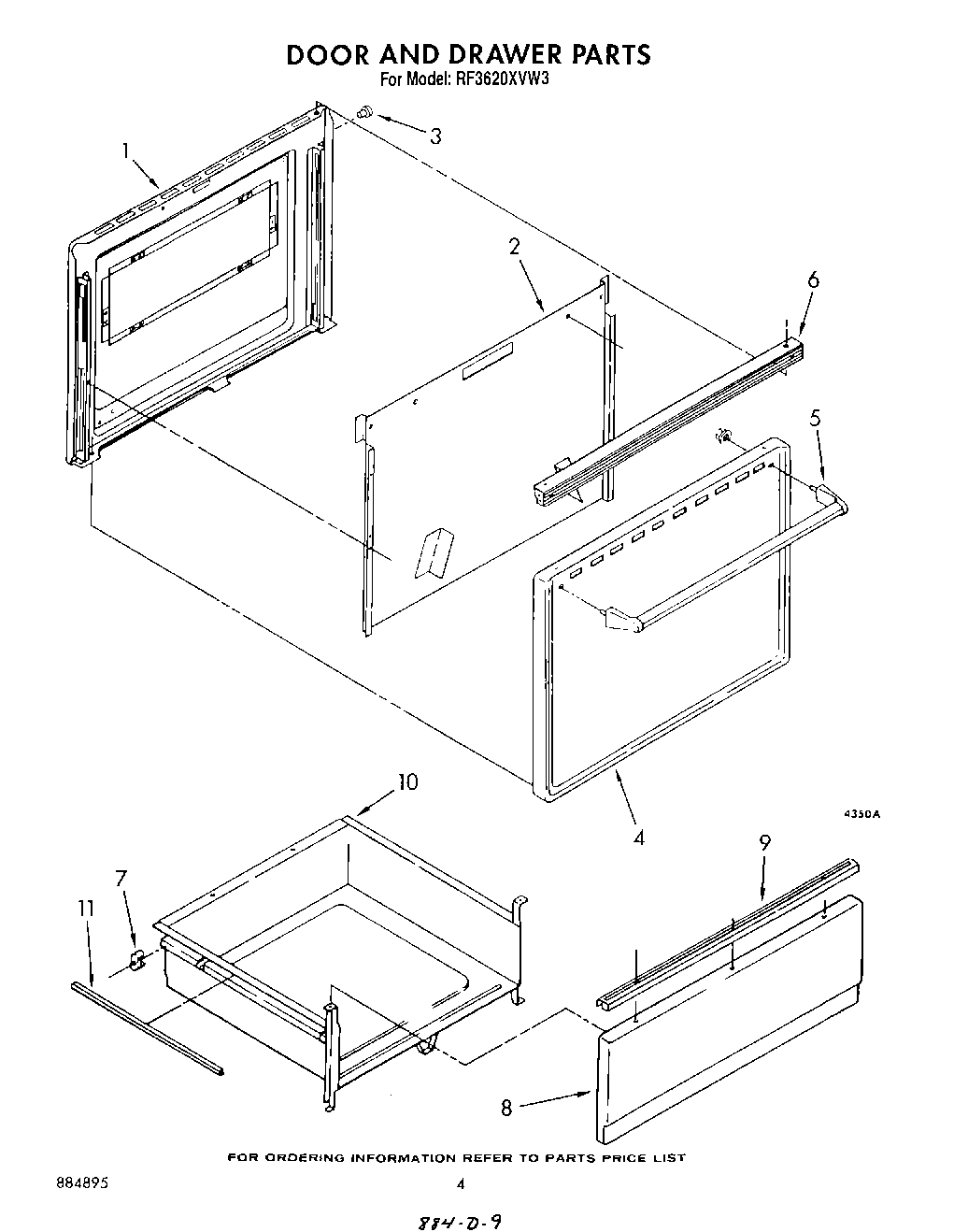

RF3620XVN3 04 – DOOR AND DRAWERadmin2025-04-26T12:46:58+00:00RF3620XVN3 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| List, Parts |
| Wiring Diagram |
| Guide, Use & Care |
| Instructions, Installation |
| 1 | Liner, Oven Door |
| 2 | Screw |
| 2 | Retainer, Insulation |
| 3 | Bumper (4) |
| 4 | Panel, Door (White) |
| 4 | Panel, Door (Almond) |
| 5 | Handle, Door |
| 5 | WP308499 Whirlpool Nut |
| 6 | Panel, Door (Fastener (2)) |
| 6 | Top, Door |
| 7 | Screw, 10A x 1/2 (2) (Black) |
| 7 | Glide, Rear (2) |
| 8 | Panel Drawer (White) |
| 8 | Panel, Drawer (Almond) |
| 8 | WP488787 Whirlpool Refrigerator Screw |
| 9 | Handle, Drawer |
| 9 | WP488627 Whirlpool Refrigerator Screw |
| 10 | Drawer, Utility |
| 11 | Protector, Drawer (2) |
