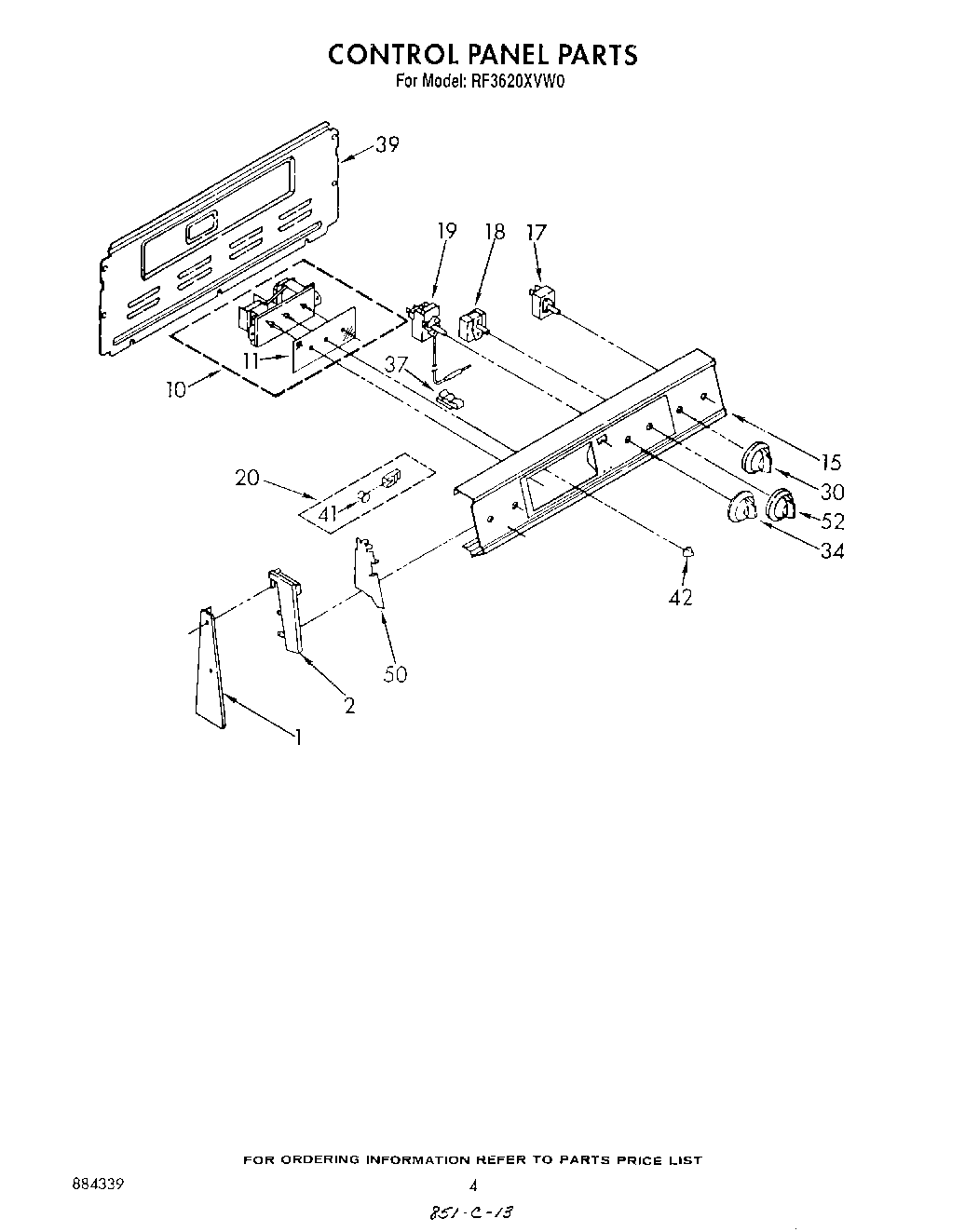

RF3620XVW0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
10	Timer, Auto
11	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Indicator Light (1)
20	Light, Indicator (Surface Unit (2))
20	Light, Indicator (250V)
30	Knob, Switch (4)
34	Knob, Control (4)
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	WP3169181 Whirlpool Knob
42	Spring (3)
50	WP965173 Whirlpool Dishwasher Screw
50	Shield (2)
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
