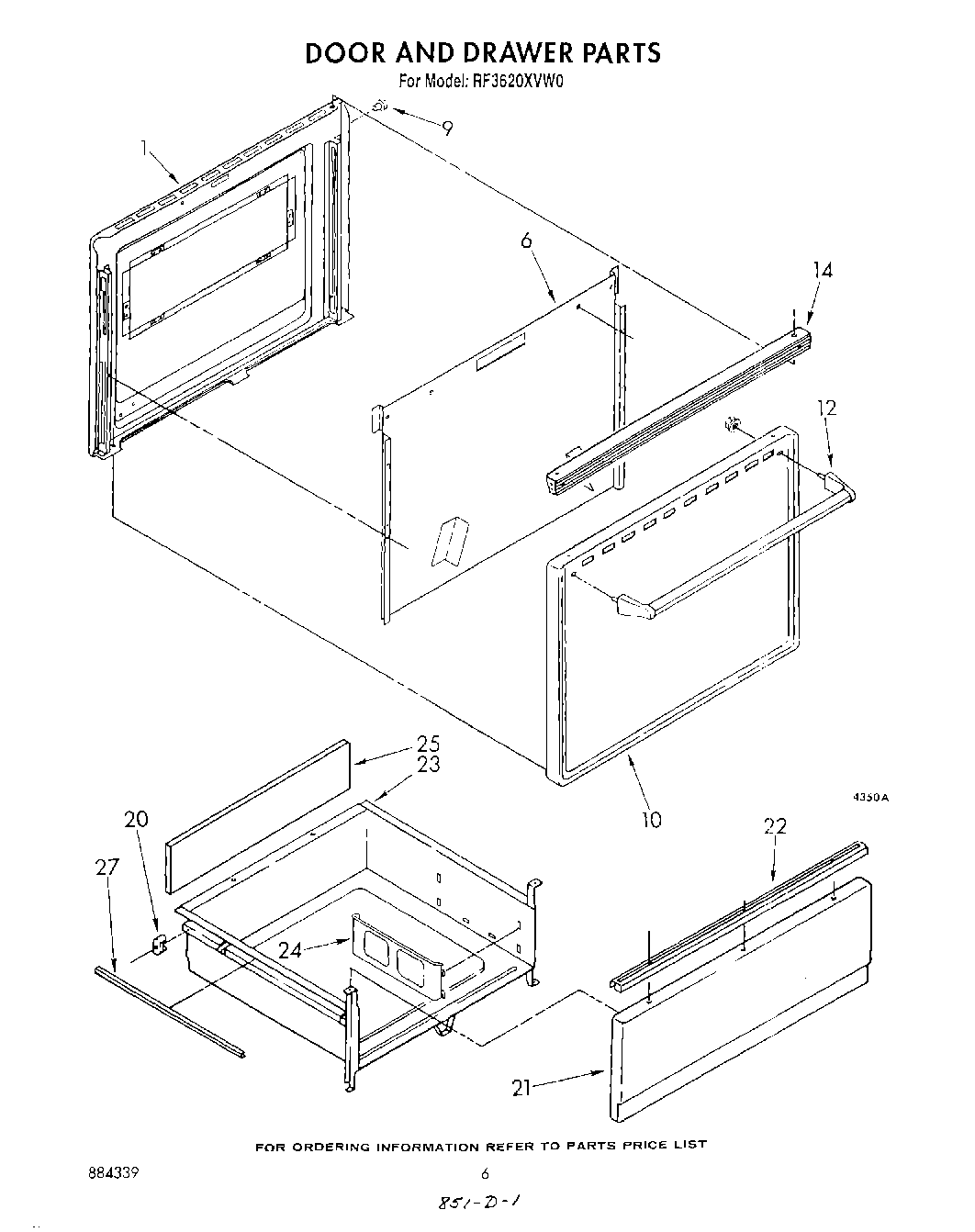

RF3620XVW0 05 – DOOR AND DRAWERadmin2025-04-26T11:35:47+00:00RF3620XVW0 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 6 | Screw |
| 6 | Retainer, Insulation |
| 9 | Bumper (4) |
| 10 | Panel, Door (Almond) |
| 10 | Panel, Door (White) |
| 12 | Handle, Door |
| 12 | WP308499 Whirlpool Nut |
| 14 | Top, Door |
| 14 | Panel, Door (Fastener (2)) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 21 | Panel Drawer (White) |
| 21 | Cooktop (White) |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 23 | Drawer, Utility |
| 24 | Rack, Literature |
| 25 | Pad, Sound |
| 27 | Protector, Drawer (2) |
