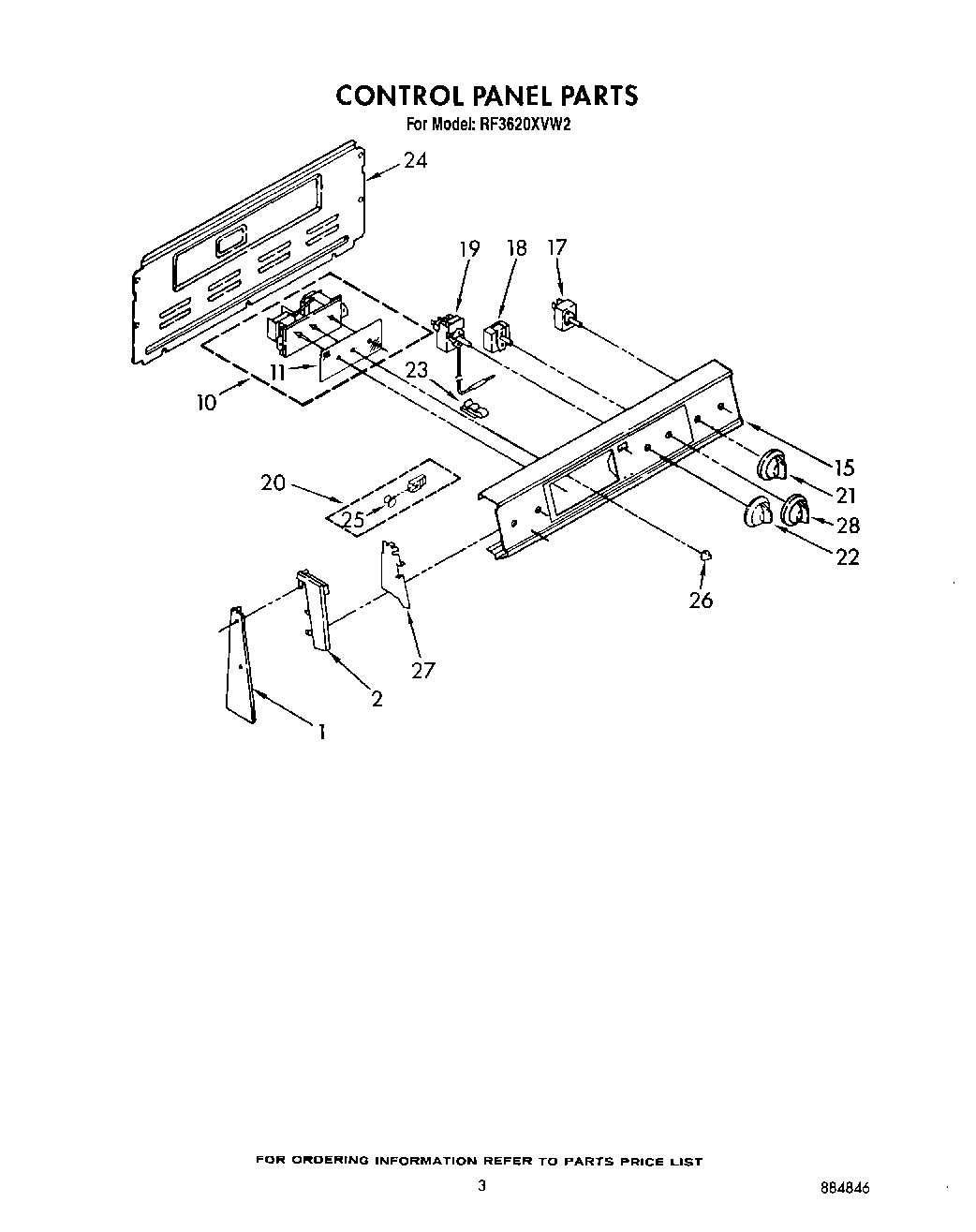

RF3620XVW2 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Auto
11	Glass, Timer
15	Washer
15	Panel, Control
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (5 Position)
19	WP313808 Whirlpool Screw
19	Thermostat, Oven
20	Indicator Light (1)
20	Light, Indicator (250V)
20	Light, Indicator (Surface Unit (2))
21	WP3149983 Whirlpool Knob
22	Knob, Oven Temp.
23	Clip, Tube
24	Harness-Conduit Asm.
24	SCREW
25	Lens, Amber
26	Spring (3)
26	WP3169181 Whirlpool Knob
27	WP965173 Whirlpool Dishwasher Screw
27	Shield (2)
28	Knob, Selector
