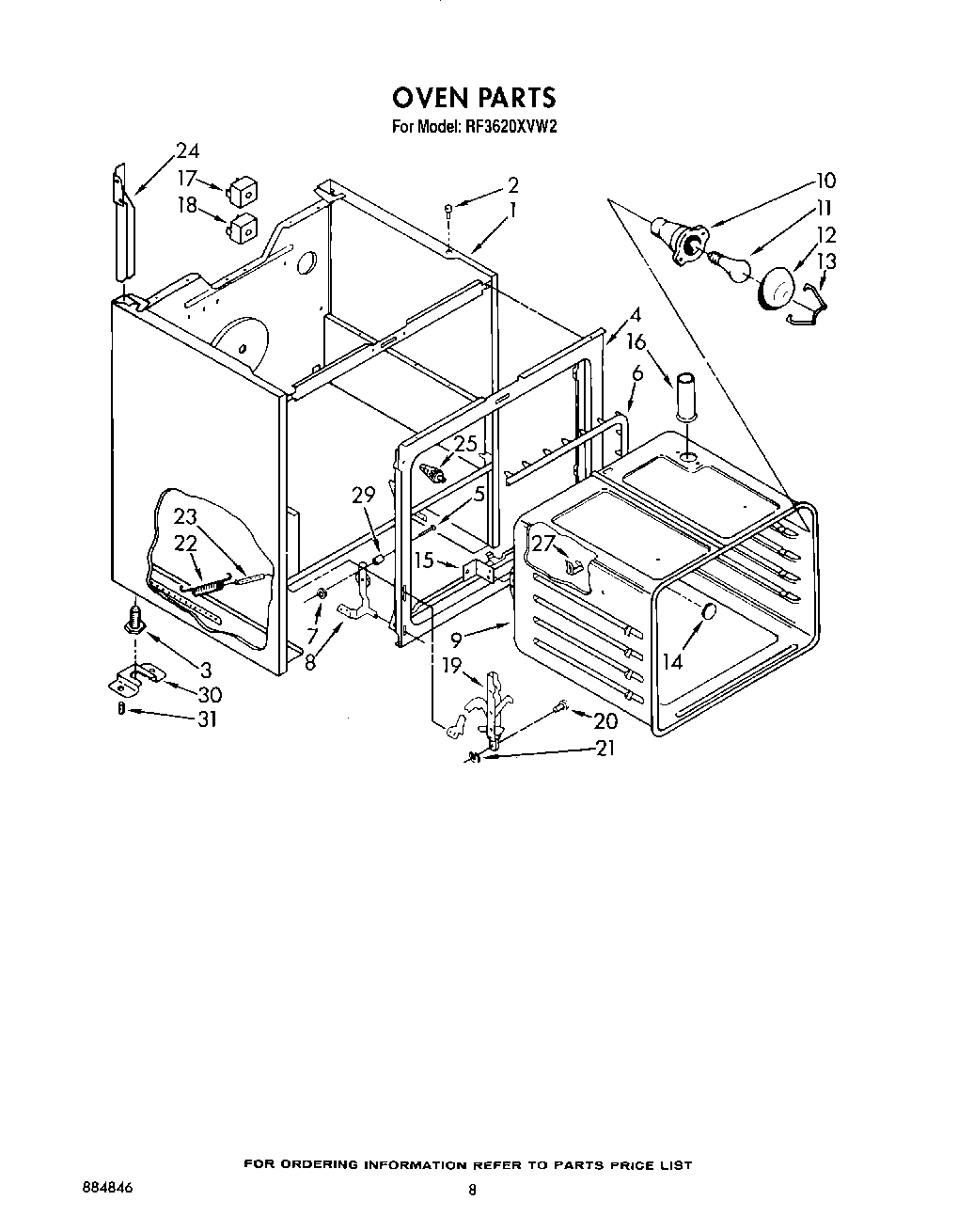

RF3620XVW2 06 – OVEN (CONTINUED)

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	WP313808 Whirlpool Screw
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Oven (30`` Pyro)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Sw
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	SCREW
24	Wire Cover-Controls (Right)
25	Switch, Door
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
30	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
30	Screw
31	Anchor, Plastic
