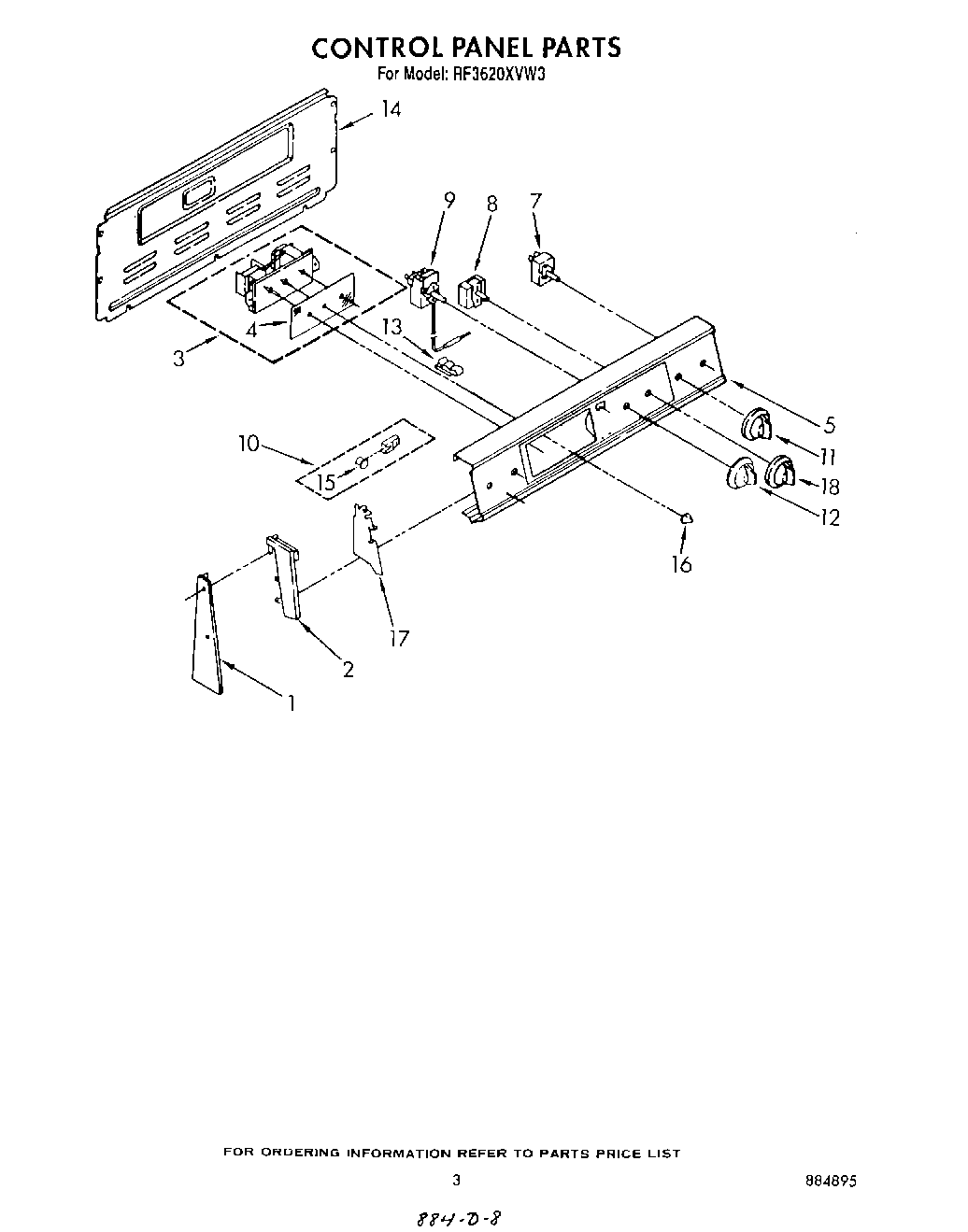

RF3620XVW3 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Timer, Auto
4	Glass, Timer
5	Washer
5	Panel, Control
7	WP486579 Whirlpool Air Conditioner Screw
7	SWITCH-INF
7	WP3149404 Whirlpool Oven Surface Element Switch
8	Switch, Selector
9	WP313808 Whirlpool Screw
9	Thermostat, Oven
10	Indicator Light (1)
10	Light, Indicator (250V)
10	Light, Indicator (Surface Unit (2))
11	WP3149983 Whirlpool Knob
12	Knob, Oven Temp.
13	Clip, Tube
14	Harness-Conduit Asm.
14	SCREW
15	Lens, Amber
16	Spring (3)
16	WP3169181 Whirlpool Knob
17	WP965173 Whirlpool Dishwasher Screw
17	Shield (2)
18	Knob, Selector
